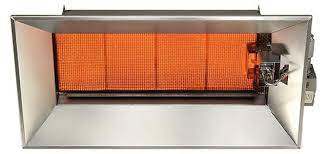

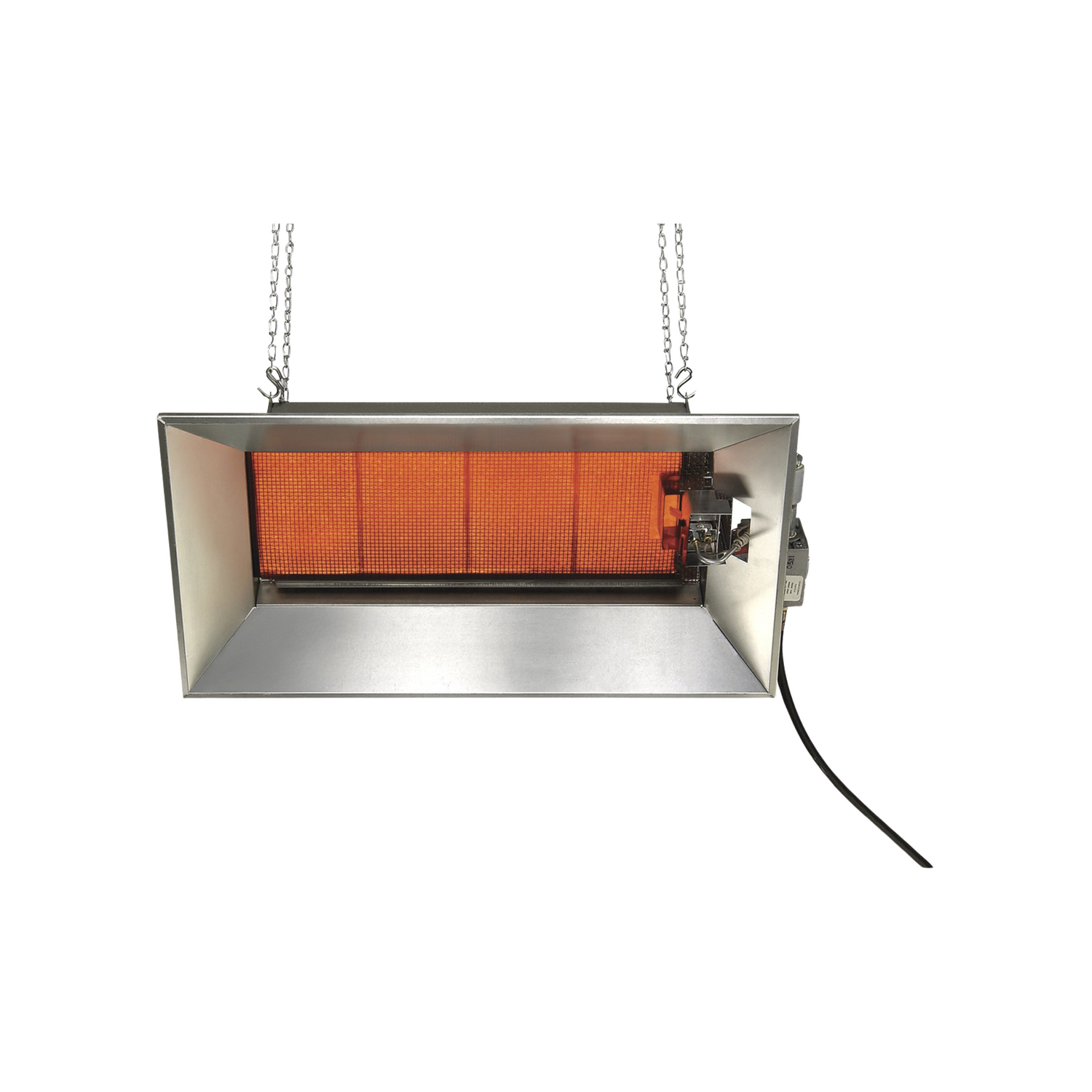

Sunstar Heating Products SGM6-N1A 52000 BTU Overhead Gas Heater, Natural Gas
Sunstar Heating Products SGM6-N1A 52000 BTU Overhead Gas Heater, Natural Gas is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight.
Sunstar Heating Products SGM6-N1A 52000 BTU Overhead Gas Heater, Na...
Description
Description
Ceramic Infrared Heating is the answer for spot or area heating and for total building heating needs. It is also ideal for the replacement of existing ceramic heaters. SunStar Ceramic Heaters heat like the sun by transferring radiant heat energy directly into the area to be heated and creating a warm comfort zone at the floor level. This extremely efficient method of heating can result in fuel savings of between 30% and 50% when compared to forced air convection heating.
Features:
- Capacities from 26,000 to 104,000 Btu/hr
- Does not require external electrical power to operate
- Millivolt standing pilot operation with 100% gas shut-off safety control
- Aluminized steel construction
- Aluminum reflectors
- Compact size for UPS shipping
- Suitable for horizontal or angle mount up to 30°
- Natural or propane gas
- Indirect vented operation
- Protective radiant screen included
- Optional reflector extensions available
- CSA design certified
Specifications:
Manufacturer: Sunstar Heating Products
Manufacturer Part Number: SGM6-N1A
BTU/Hr: 52,000
Type: Millivolt Standing Pilot Ignition Ceramic Infrared Gas Heaters - Natural Gas Gas
Minimum mounting height at horizontal: 14 FT
Gas Type : Natural Gas
Burner Pressure wc": 6 " WC
Supply Pressure- max wc": 14 " WC
Supply Pressure- min wc": 7 " WC
Voltage : 752 mV
Amps: n/a
Ignition Type: Millivolt Standing Pilot Ignition
Assembly: Factory Assembled
Construction: Aluminized Steel & Aluminum Steel Reflectors
Overall Length: 32 3/4"
Width: 16 3/4"
Height: 9 3/4"
Mininum Clearances To Combustibles At Horizontal: Back 36",Sides 30", Ceiling 36", Below 72"
Mininum Clearances To Combustibles At 45 Degree Angle: Back 12",Sides 30:, Ceiling 36", Below 72"
Thermostat: Millivolt thermostat required - 750 mV
Indirect Vented Use: Approved for indirect vented use.
Ventilation Rate: 218 CFM
Hanging Weight: 34 lbs.
Residential Certification: No
