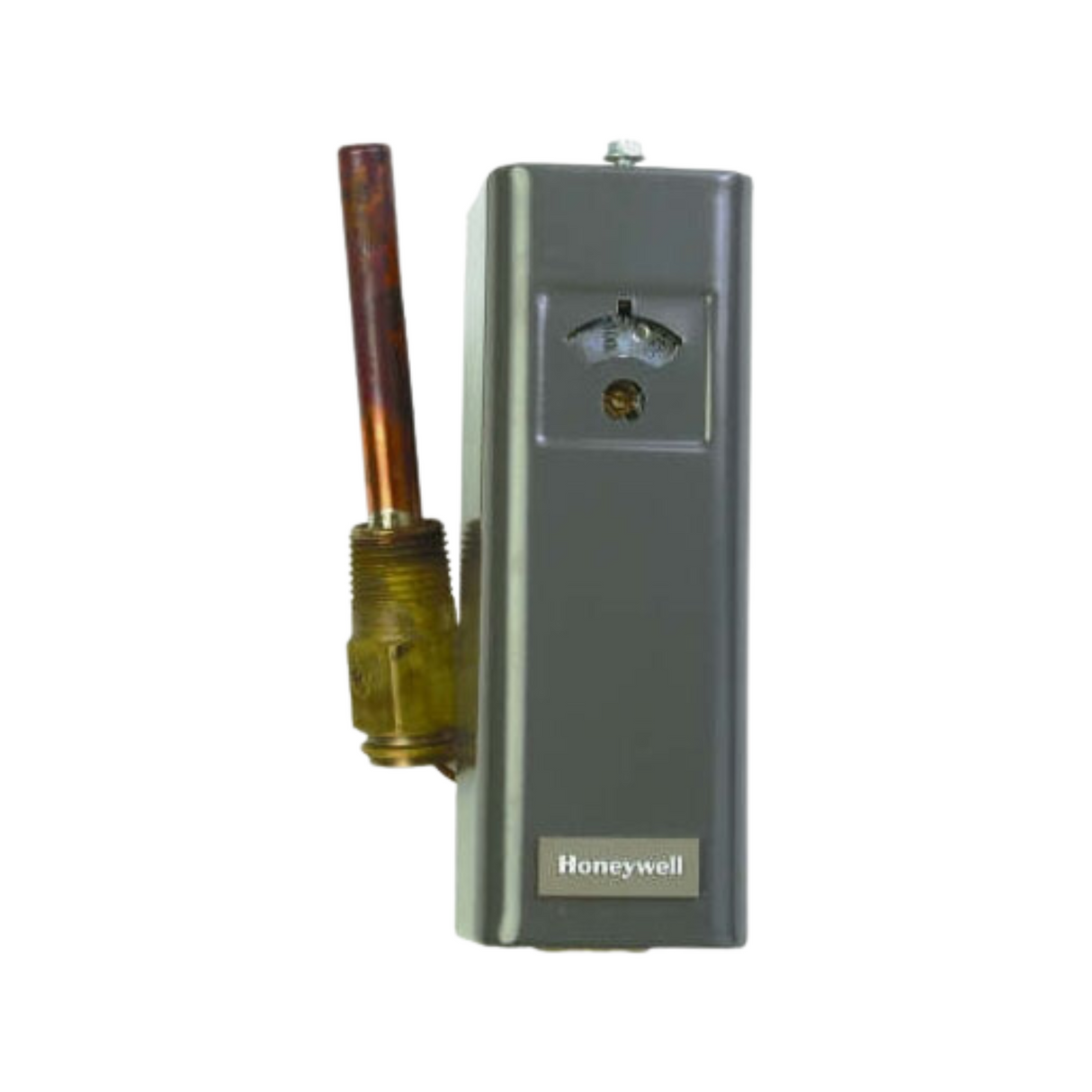

Honeywell L4006A1959 Aquastat Controller, (40-180 Degree Operating Temp)

Features:

Totally Enclosed Micro Switch Snap Acting Switches Operate on Temperature Rise to Set Point
Visible Control Point Scale and External Adjustment Screw Permit Easy Setting
Direct or Well Immersion of the Sensing Element
Horizontal or Vertical Insertion of the Sensing Element
Remote Bulb Model May be Used to Sense Air Temperature in Ducts and in Outside Air Sensing Application

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: L4006A1959
Product Type: Aquastat Controller
Temperature Range: 40 to 180 Degrees F
Maximum Temperature Rating: 150 Degrees F
Contact Rating: 8 A @ 120 VAC/5.1 A @ 240 VAC (Full Load), 48 A @ 120 VAC/30.6 A @ 240 V AC (Locked Rotor), 0.25 A @ 0.25 to 12 VDC (Millivolt)
Contact Configuration: SPST, Contact Break on Temperature Rise
Connection Type: 3/4" Conduit, Screw Terminal
Differential Temperature Rating: 5 Degrees F, Fixed
Pressure Rating: 200 PSI (Capillary Bulb), 255 PSI (Immersion Well)
Sensing Bulb Fill: Liquid Toluene or Silicone Oil
Dimensions: 12.75" x 5.4" x 2.4"
Weight: 1.43 lb.
