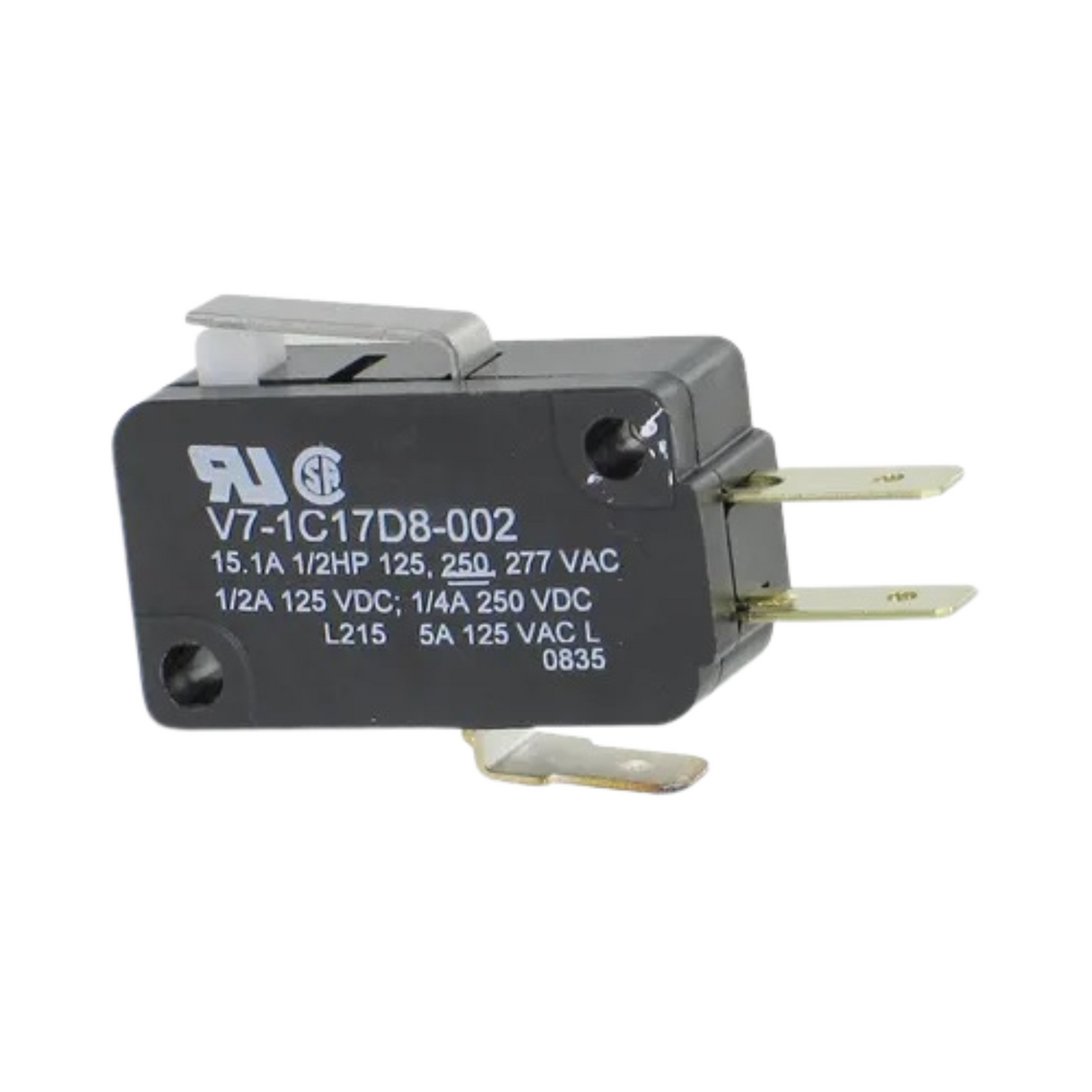

Honeywell V7-1C17D8-002 Micro Switch, Miniature Basic Switches, V7 Series, Single Pole Double Throw (SPDT), 5A@125VAC, 160g Maximum Operating Force

V7-1C17D8-002 Snap Action Switch from Honeywell is a miniature-type basic micro switch. This Honeywell Snap Action Switch is designed for precision on or off application needs. It delivers maximum operating force and is ideal for higher cost-of-failure applications. The current rating of this Honeywell Switch ranges from 0.1 A to 25 A.

Features:

World-wide package size acceptance
Best suited for higher cost-of-failure applications
Current rating ranges from 0.1 A to 25 A
Designed for 100K operations at a full load or 10M for mechanical life
UL/CSA and ENEC approvals

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: V7-1C17D8-002
Mounting: Through Hole
Pole Throw Configuration: SPDT
Switch Configuration: N.O./N.C.
Actuator Material/Style: Steel/Straight Lever
Contact Rating @ Voltage: 372.85@(CSA/UL) A
Maximum Movement Differential:0.38 mm
Operating Force: 1.57 N
Termination Style:Quick Connect
Dimension (LxWxH): 28.8 x 10.16 x 15.9 mm
Body Orientation: Straight
