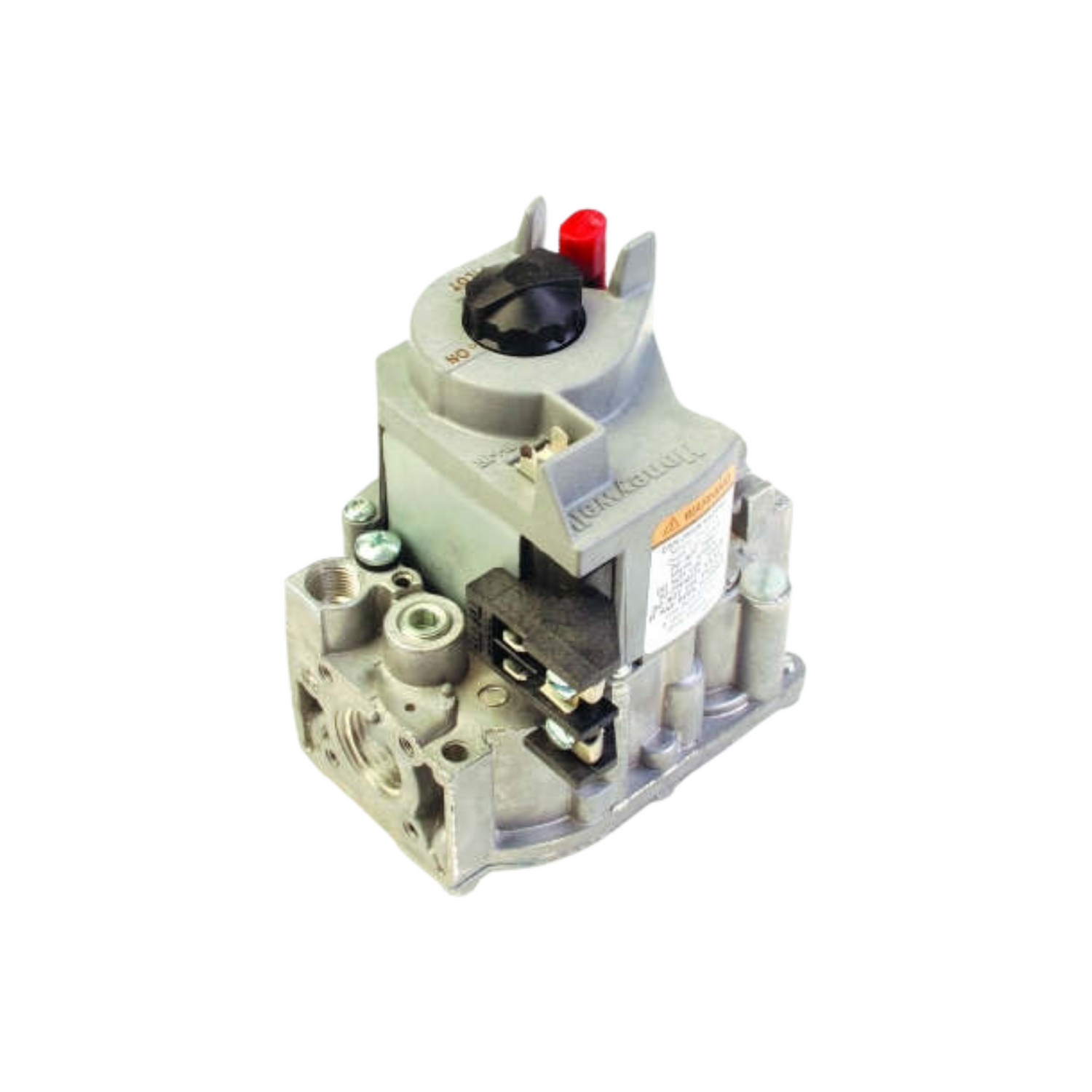

Honeywell VR8200A2132 24V Standing Pilot Natural Gas Valve 1/2" X 1/2"

Features:

Compact Size
Provides Two Automatic Valves
Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes When Call for Heat Ends
Diaphragm Operated Second Automatic Valve Opens Under Control of Regulator
Closes If Gas or Power Supply is Interrupted
Meets Codes Requiring Dual Safety Shut-Off
Natural to LP and LP to Natural Conversion Kits Available for Standard and Slow Opening Gas Valves
All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control
Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure Under Wide Fluctuations in Gas Supply Pressure
Compatible with ECO Connector

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: VR8200A2132
Product Type: Solenoid Gas Valve
Port Connection: 1/2" Compression x 1/2" Compression
Input Supply Rating: 24 VAC @ 60 Hz
Temperature Rating: 0 to 175 Degrees F
Pressure Rating: 1/2 PSI
Mounting Details: 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled: Gas
Pressure Regulator Setting: 3.5" WC
Pressure Tapping Size: 1/8" Threaded with Plug
Flow Capacity: 20 to 200 CFH
Electrical Connection: 1/4" Quick Connect Male Terminal
Dimensions: 4.75" x 5.95" x 4.1"
Weight: 2.18 lb.
Includes: (1) 3/4 Inch Straight Flange, (1) 1/2 Inch x 3/8 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Q340 Thermocouple, Standard Opening, Manual Valve, (2) Automatic Operator, Servo Pressure Regulator and Pilot Adjustment, Low Voltage
