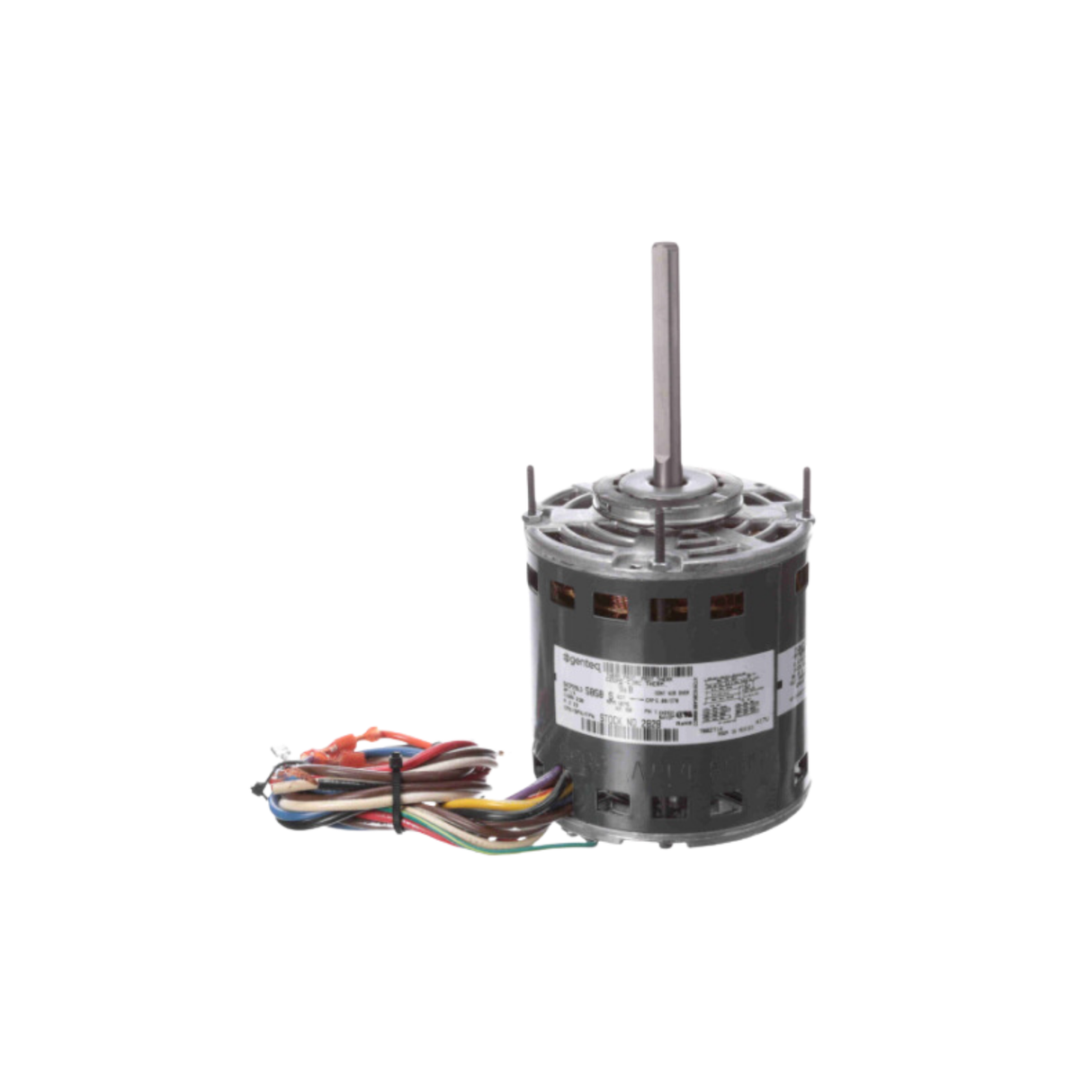

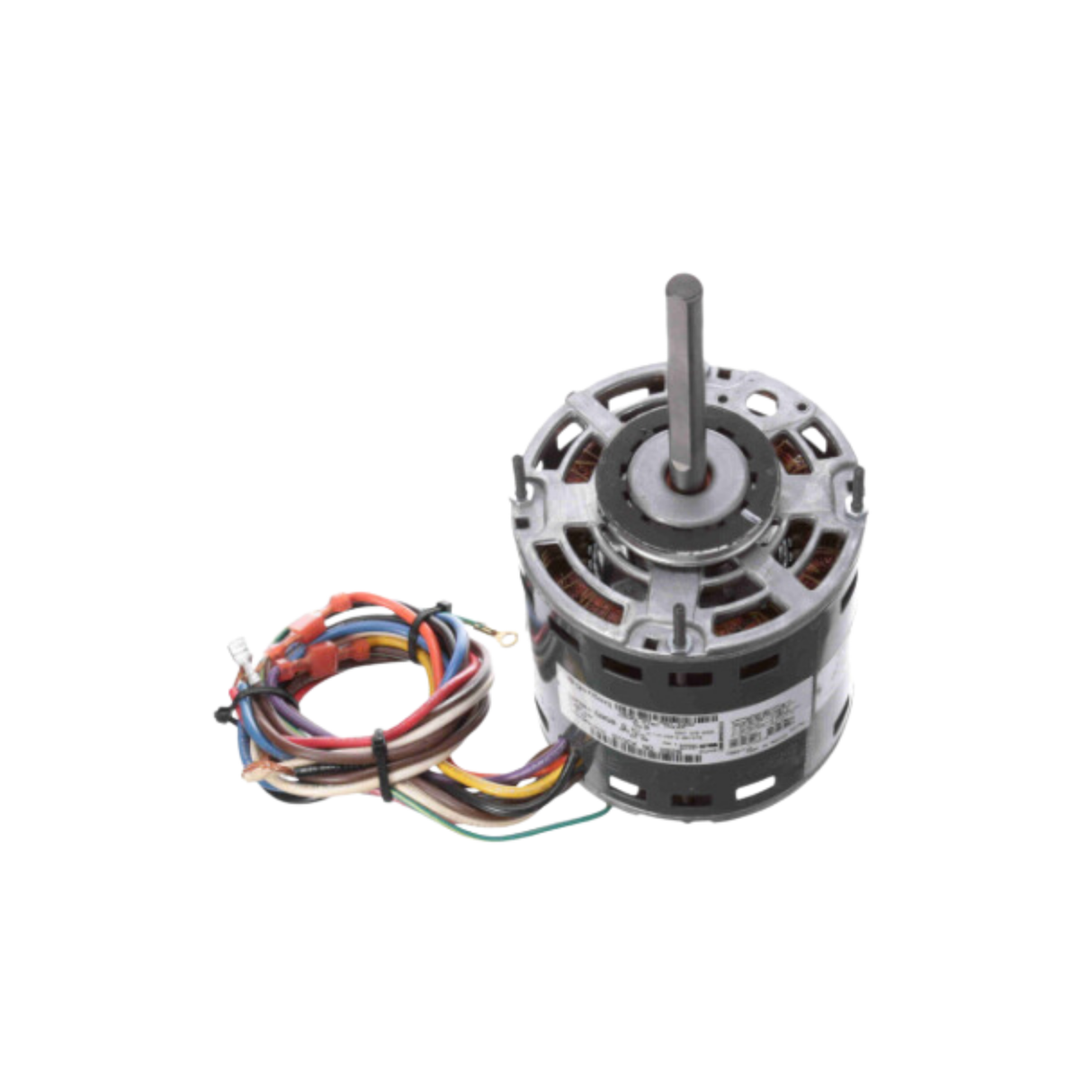

Regal Rexnord - Genteq 2828 208-230 V 60 Hz 1075 RPM 1/4 HP Reversible Motor

Features:

Direct Drive Fan & Blower Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
26" Leads
Resilient Ring Mounting, Extended Clampbolts

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 2828
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 2.22 A
Motor Size: 1/4 HP
RPM: 1075
Frame: 42
No. of Phase: 1
No. of Pole: 6
Mounting: Resilient Rings
Rotation: Reversible
Enclosure Type: Open Air Over
Dimensions: 15.05" x 6.75" x 6.45"
Weight: 11.86 lb.
