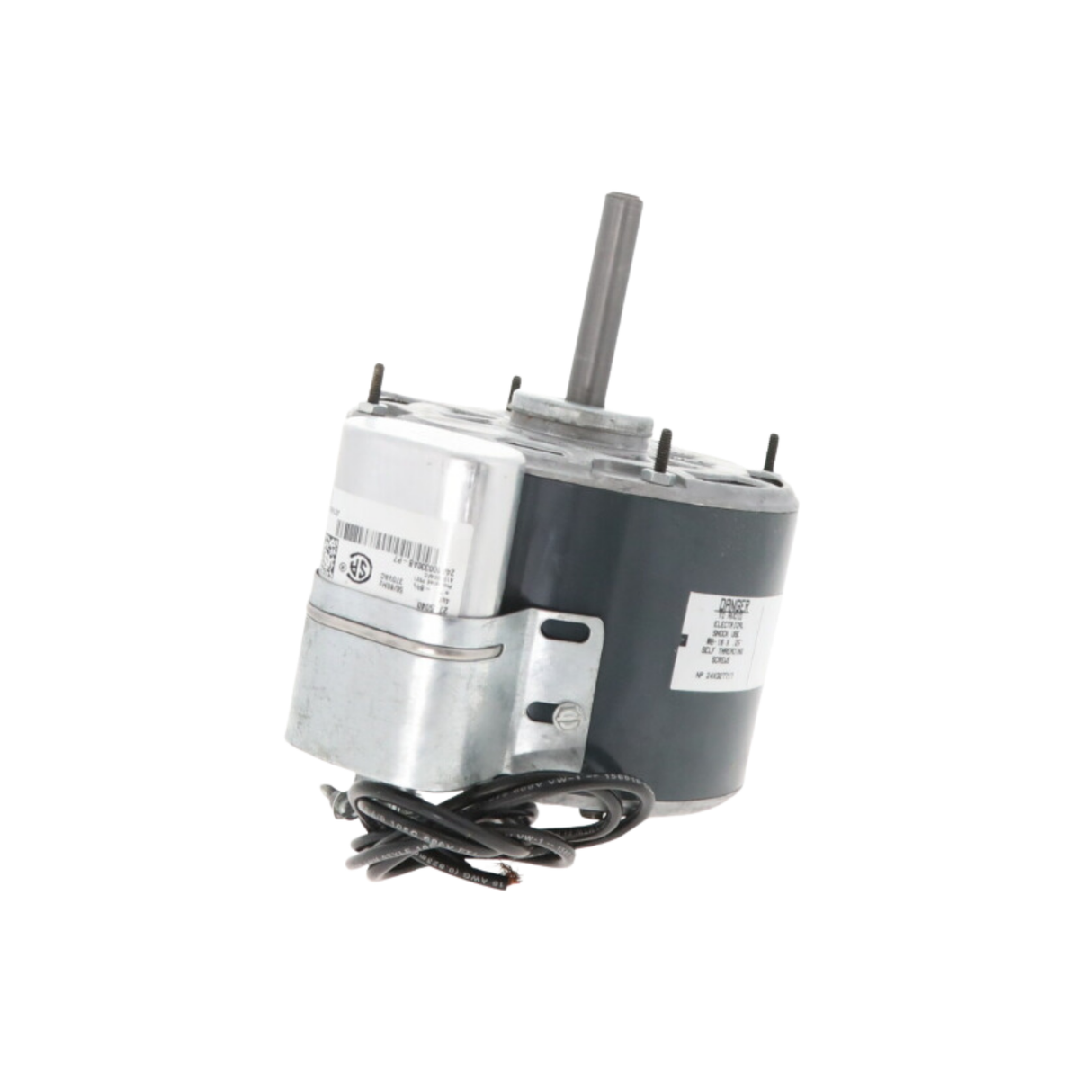

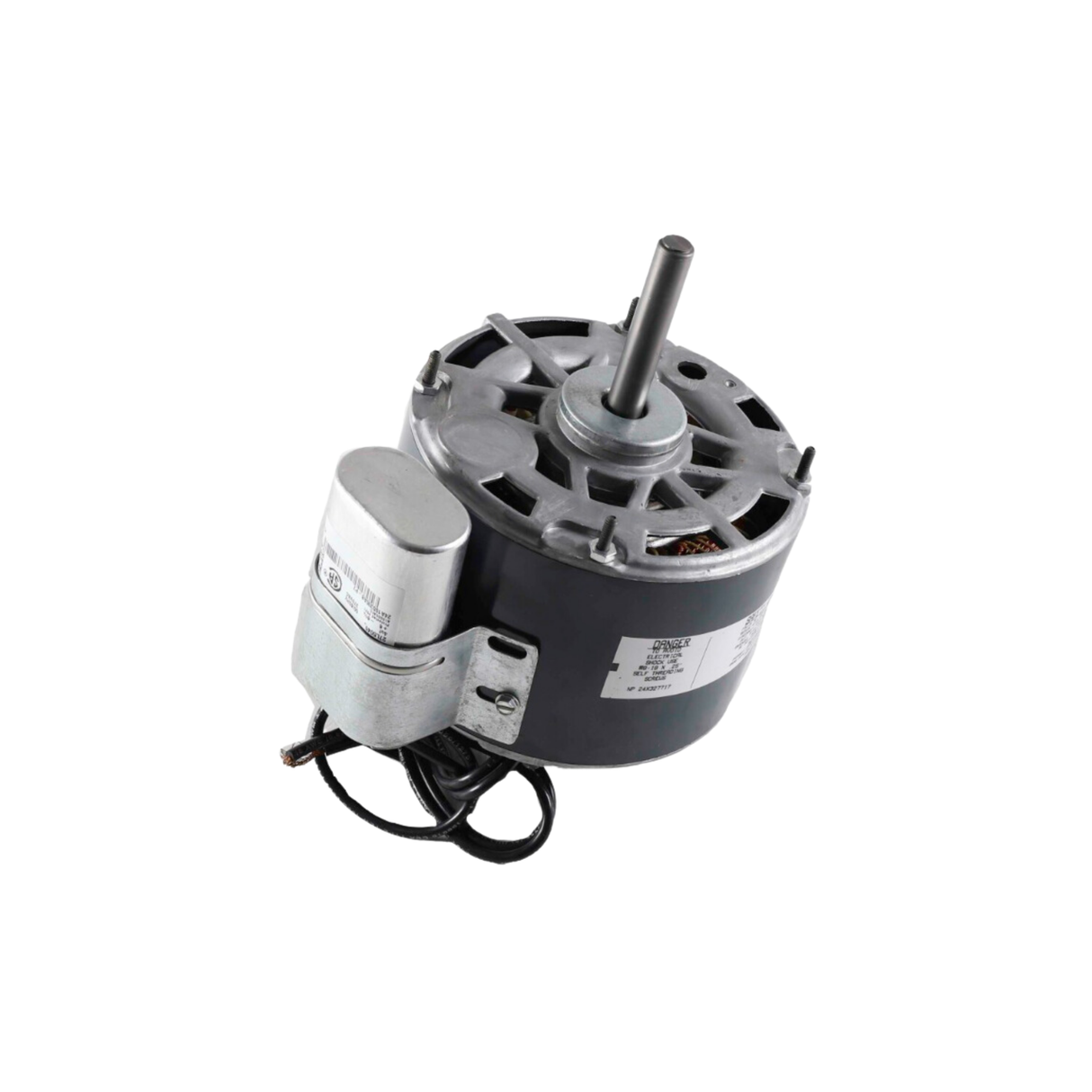

Regal Rexnord - Genteq 3012 208-230 V 60 Hz 1075 RPM 1/5 HP Motor

Features:

OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
24" Leads
Extended Clampbolts, Belly Band Mount (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 3012
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 1.70 A
Motor Size: 1/5 HP
RPM: 1075
Frame: 48
No. of Phase: 1
No. of Pole: 6
Mounting: Extended Studs
Rotation: Clockwise
Enclosure Type: Open Air Over
Dimensions: 14.9" x 9.0" x 8.8"
Weight: 11.45 lb.
