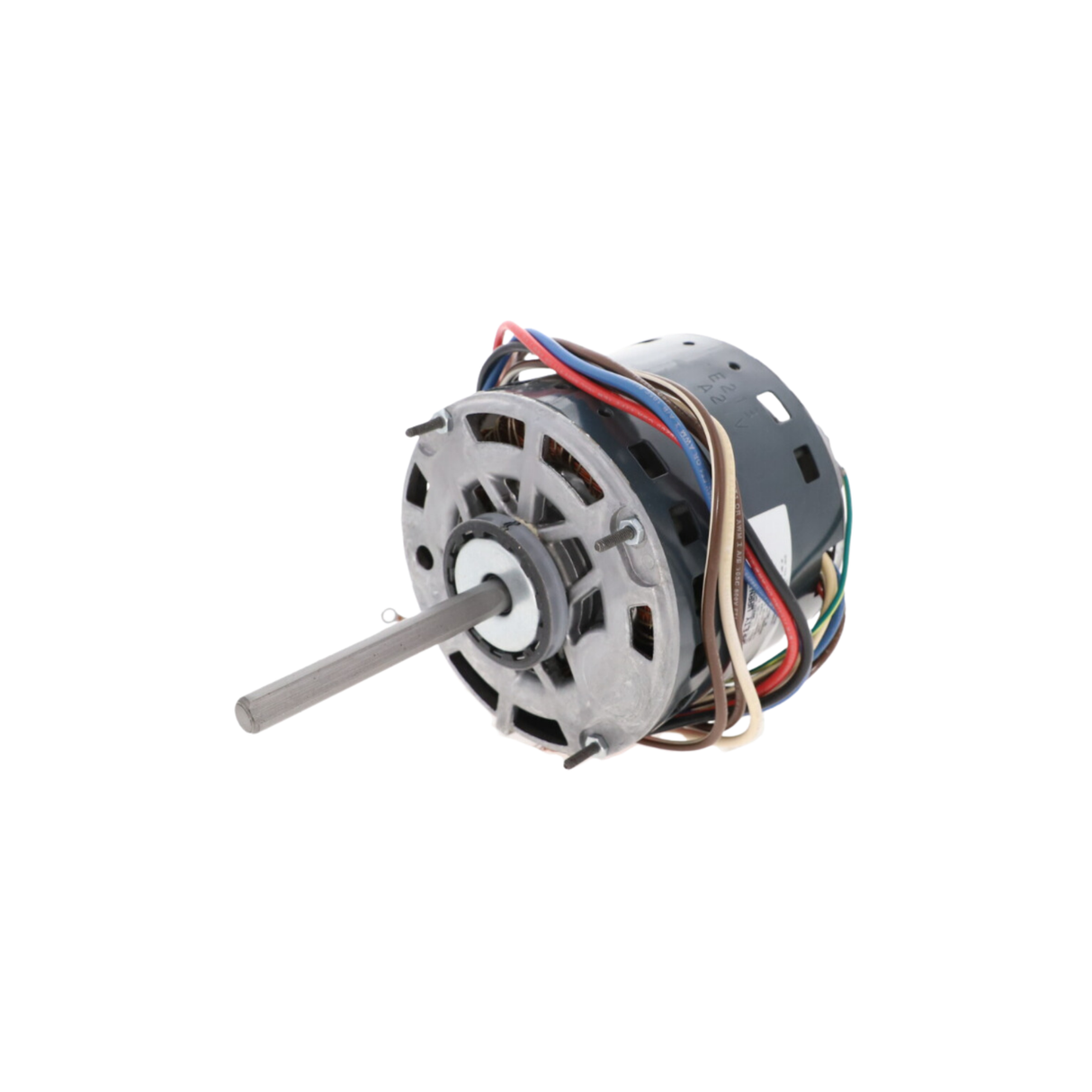

Regal Rexnord - Genteq 3385 115 V 60 Hz 1075 RPM 1/3 HP Motor

Features:

Direct Drive Fan and Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
26" Leads
Resilient Ring Mounting, Extended Clampbolts

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 3385
Product Type: Motor
Voltage Rating: 115 V
Frequency Rating: 60 Hz
Current Rating: 6.20 A
Motor Size: 1/3 HP
RPM: 1075
Frame: 48
No. of Phase: 1
No. of Pole: 6
Mounting: Resilient Rings
Rotation: Reversible
Enclosure Type: Open Air Over
Dimensions: 14.9" x 6.95" x 6.65"
Weight: 12.27 lb.

Catalog Page
