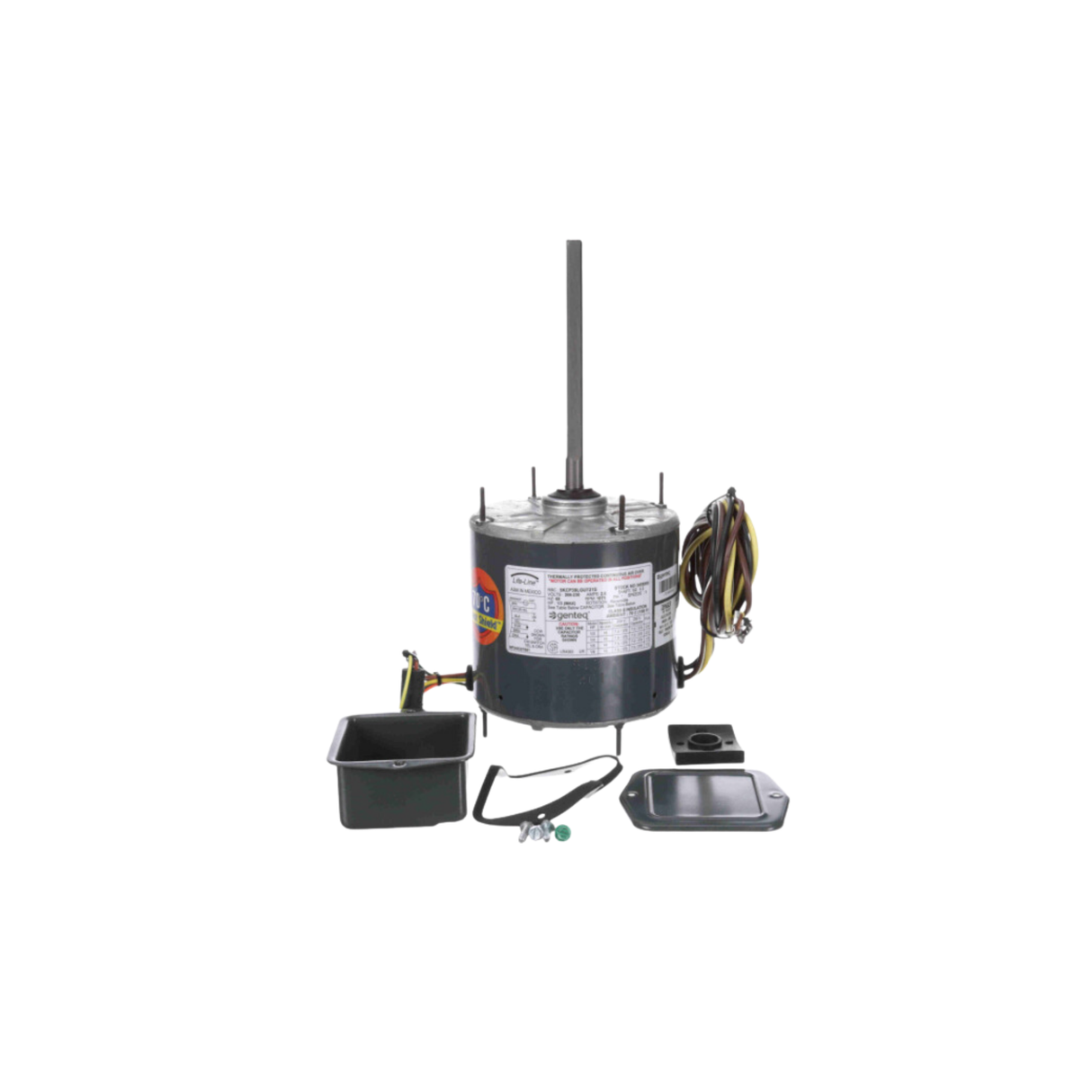

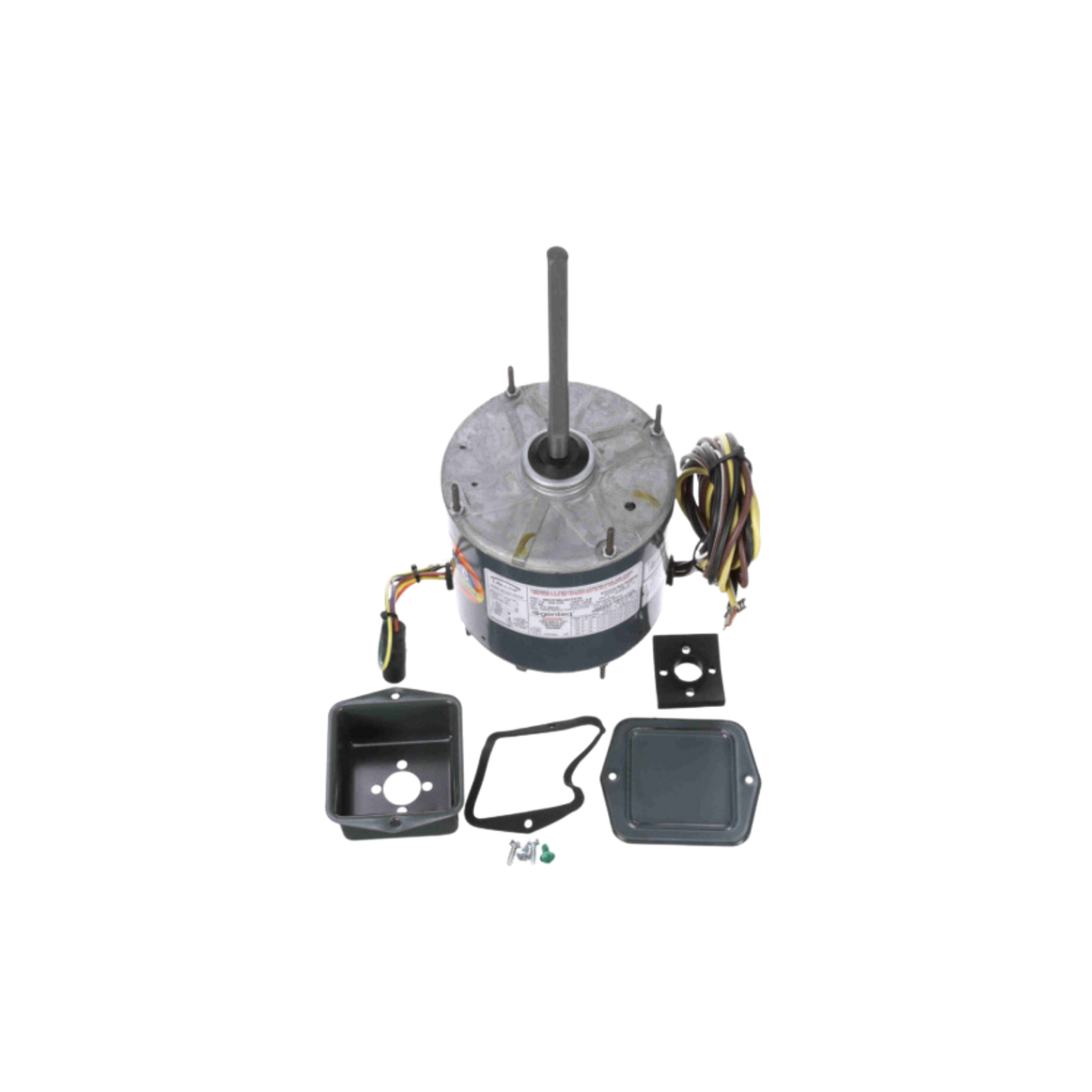

Regal Rexnord - Genteq 3458HS 208-230 V 60 Hz 1075 RPM 1/3-1/6 HP Motor

Features:

Heat Shield - Condenser Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 70°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
48" Leads
Shaft Down, Extended Clampbolts, Mounting Holes in Shell, Belly Band Mounting (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 3458HS
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 2.60 A
Motor Size: 1/3-1/6 HP
RPM: 1075
Frame: 48
No. of Phase: 1
No. of Pole: 6
Mounting: Round Belly Band
Rotation: Reversible
Enclosure Type: Totally Enclosed Air Over
Dimensions: 6.55" x 14.75" x 6.35"
Weight: 14.45 lb.
