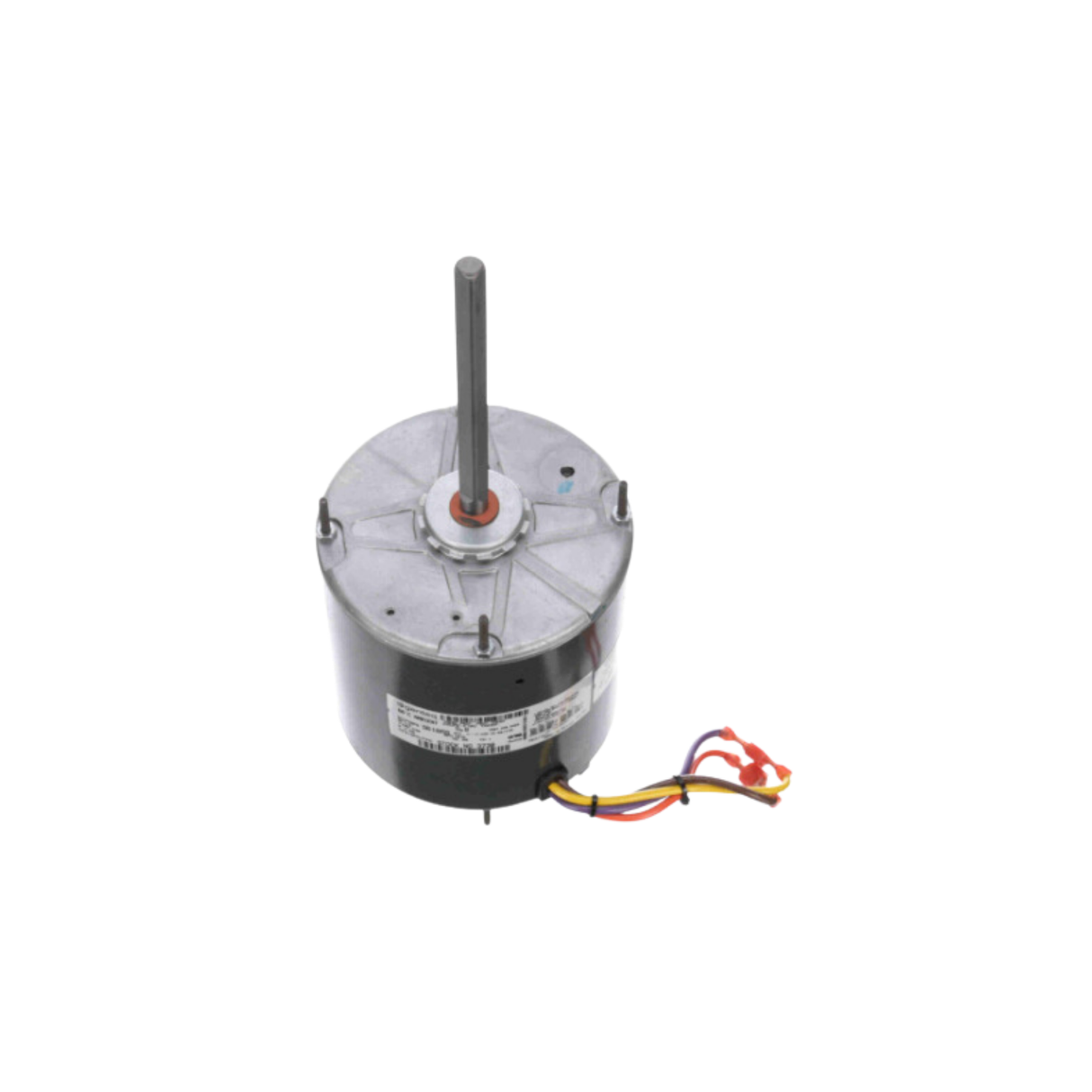

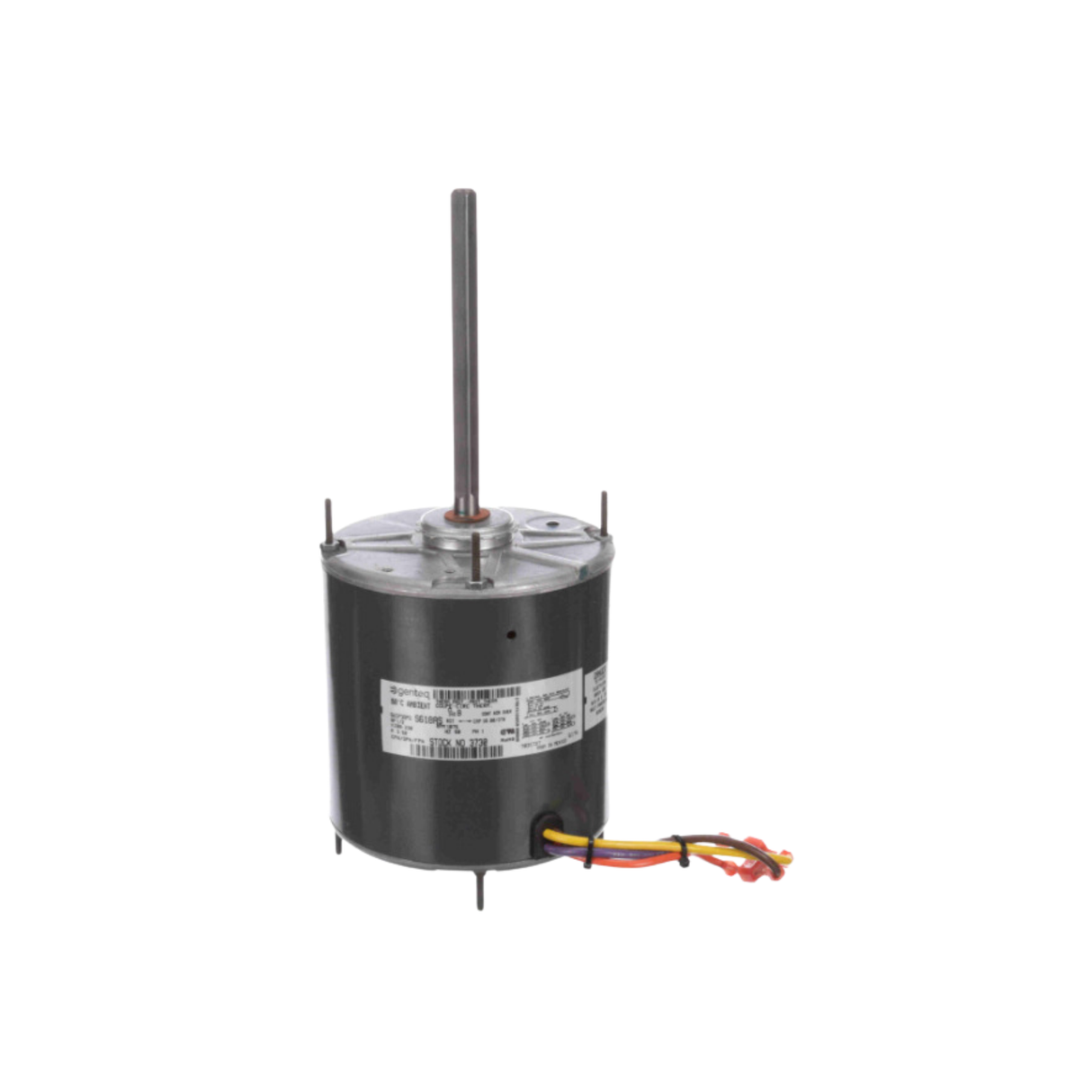

Regal Rexnord - Genteq 3730 208-230 V 60 Hz 1075 RPM 1/2 HP Motor

Features:

Condenser Fan - Heat Pump Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Double Flat
26" Leads
Extended Clampbolts, Belly Band Mount (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 3730
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 3.50 A
Motor Size: 1/2 HP
RPM: 1075
Frame: 48
No. of Phase: 1
No. of Pole: 6
Mounting: Round
Rotation: Reversible
Enclosure Type: Totally Enclosed Air Over
Dimensions: 17.05" x 9.2" x 8.35"
Weight: 18.64 lb.
