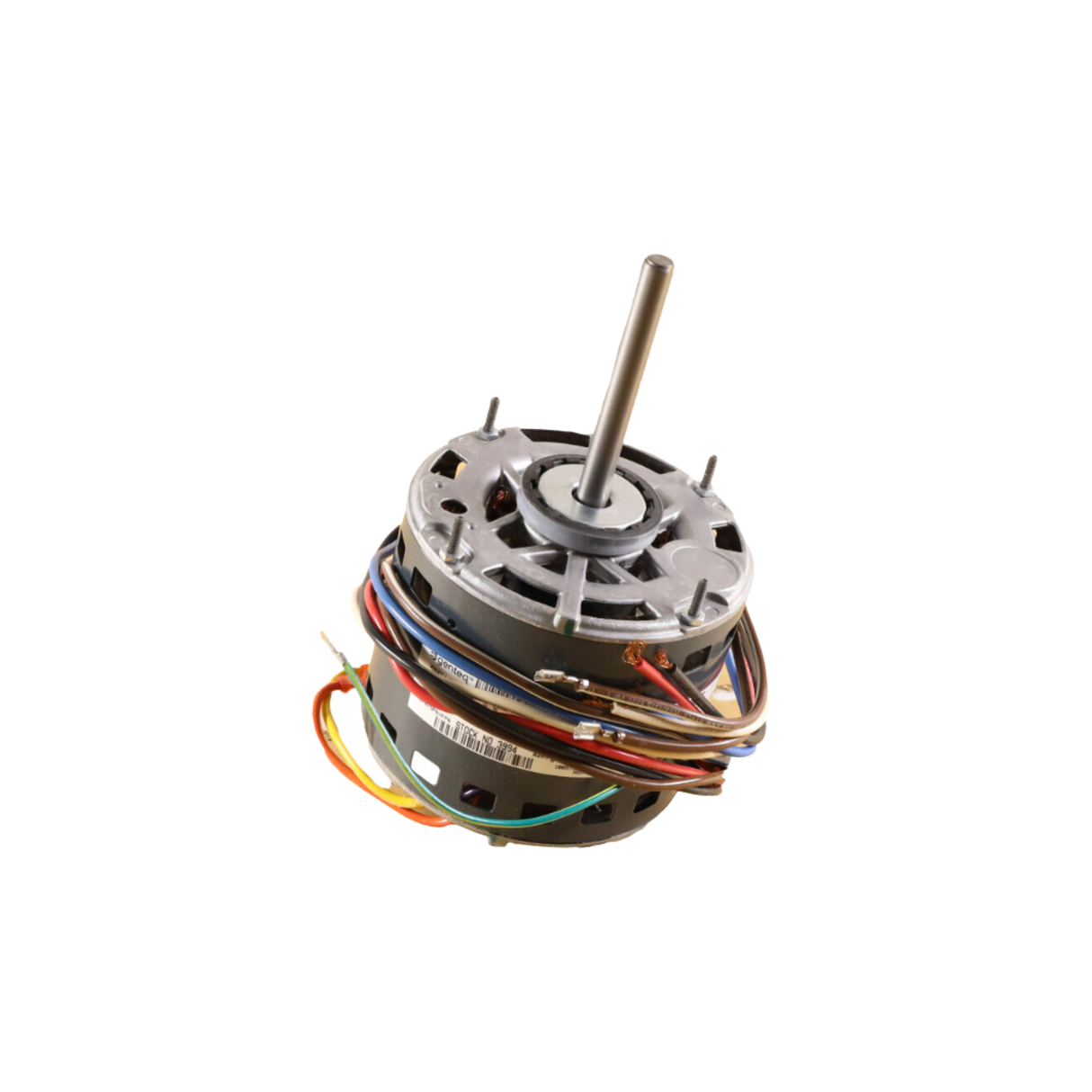

Regal Rexnord - Genteq 3994 115 V 60 Hz 1625 RPM 1/3 HP Motor

Features:

Direct Drive Fan and Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
26" Leads
Extended Clampbolts, Belly Band Mount (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 3994
Product Type: Motor
Voltage Rating: 115 V
Frequency Rating: 60 Hz
Current Rating: 3.90 A
Motor Size: 1/3 HP
RPM: 1625
Frame: 48
No. of Phase: 1
No. of Pole: 4
Mounting: Extended Studs
Rotation: Counter Clockwise
Enclosure Type: Open Air Over
Dimensions: 14.45" x 7.05" x 7.3"
Weight: 12.62 lb.
