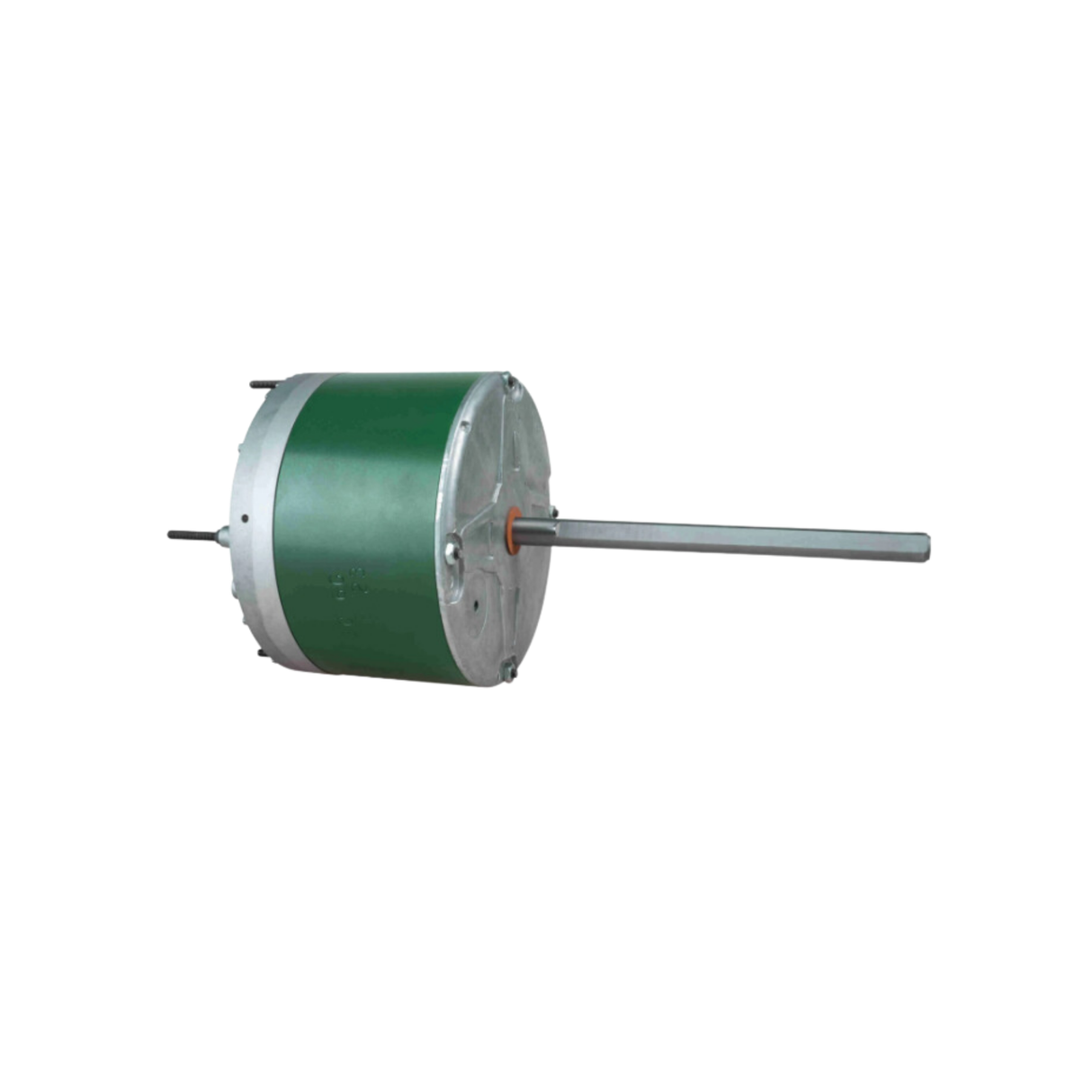

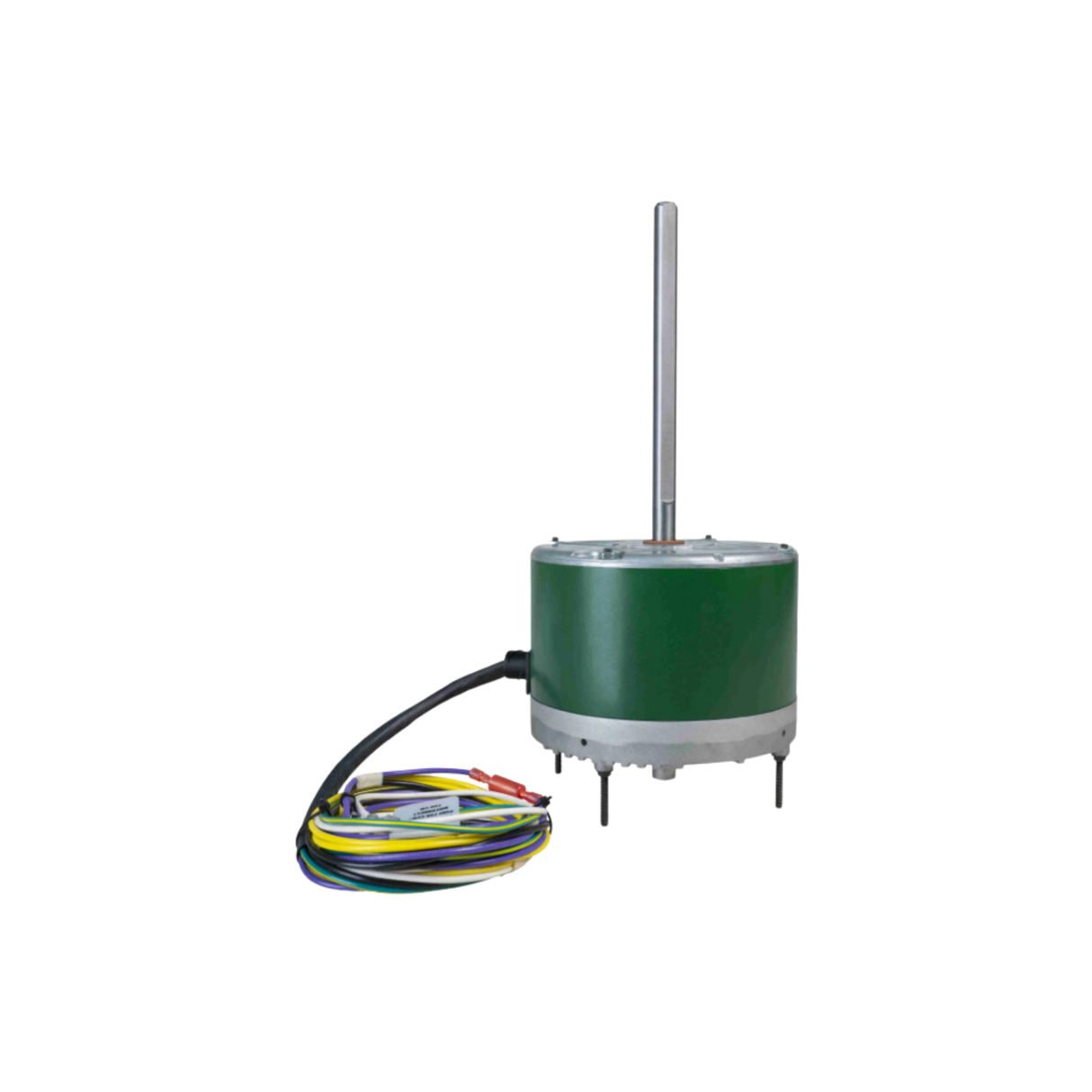

Regal Rexnord - Genteq 6303S 208-230 V 825/1075 RPM 1/3 HP Motor

Features:

Evergreen OM - Retrofit Condenser Fan Motor (Replaces PSC and Shaded Pole Motors)
Electronically Commutated (ECM), Electronically Protected
1/3 HP (Replaces 1/3-1/12). Two Operating Speeds (Constant Speed), 1075 RPM replaces motors rated 1000-1100 RPM, 825 RPM replaces motors rated 800-850 RPM
208-230 Voltage (Allowable Voltage Range 196-264), Single-Phase Input, 50-60 Hz, Totally Enclosed Air Over
Class B Insulation, -20 to 60°C Ambient
Rotation: Reversible (Factory Set To CCW Lead End)
Permanently Lubricated Ball Bearing
Shaft: 1/2” Diameter, 6.5” Length, 6” Single Flat
Leads: 54” Length With 1/4” Fast On Terminals, Ground Wire #10 Eyelet
Mounting: Horizontal or Vertical Shaft-down, Belly Band (Not Supplied With Motor), Extended Clamp Bolts, or OEM Mounting Holes
Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 6303S
Product Type: Motor
Voltage Rating: 208-230 V
Current Rating: 2.8 A
Frequency Rating: 60 Hz
Motor Size: 1/3 HP
Motor Speed: 2
RPM: 825/1075
Frame: 48
No. of Phase: 1
No. of Pole: 10
Rotation: Reversible
Enclosure Type:Totally Enclosed Air Over
Dimensions: 15.9" x 6.9" x 7.7"
Weight: 14.0 lb.
