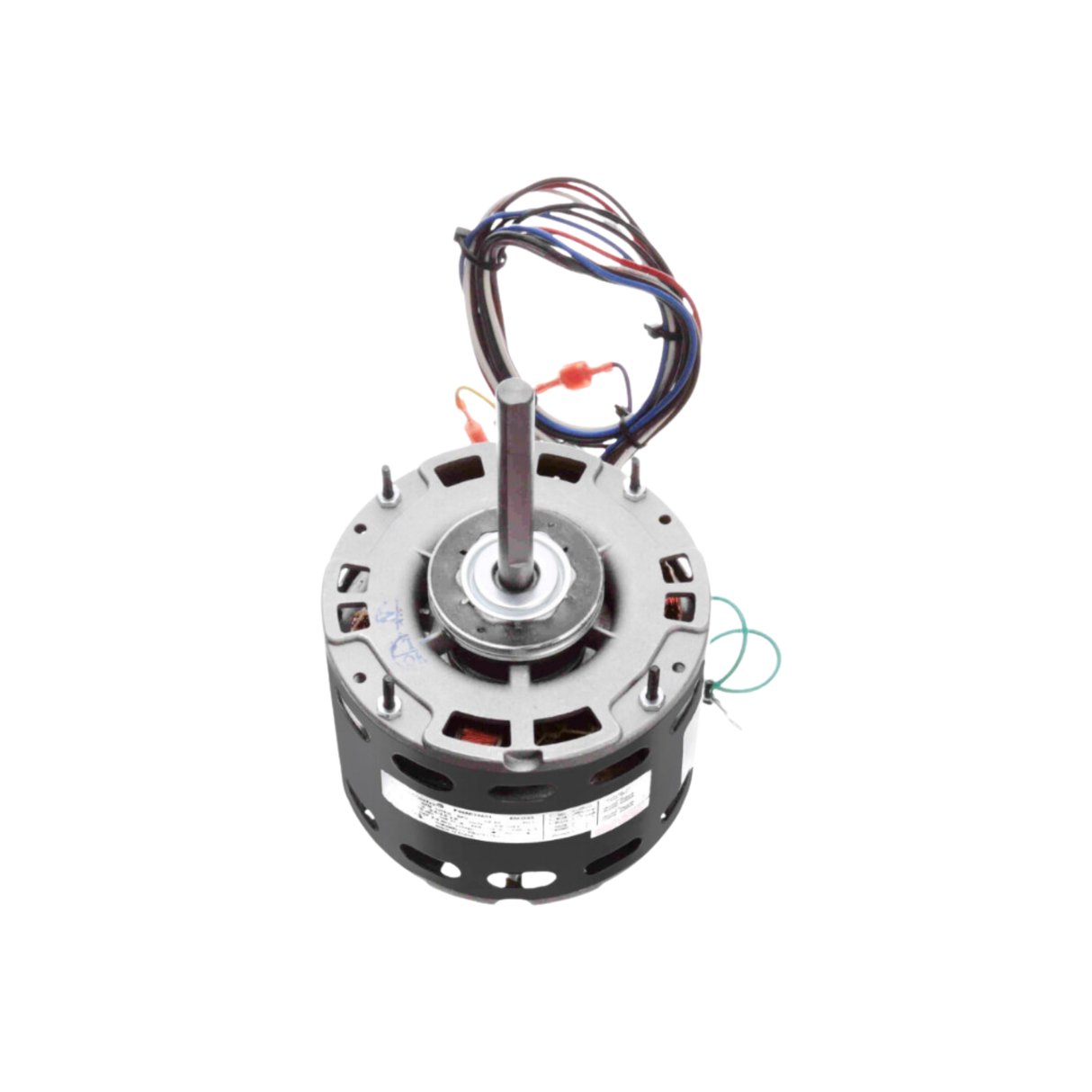

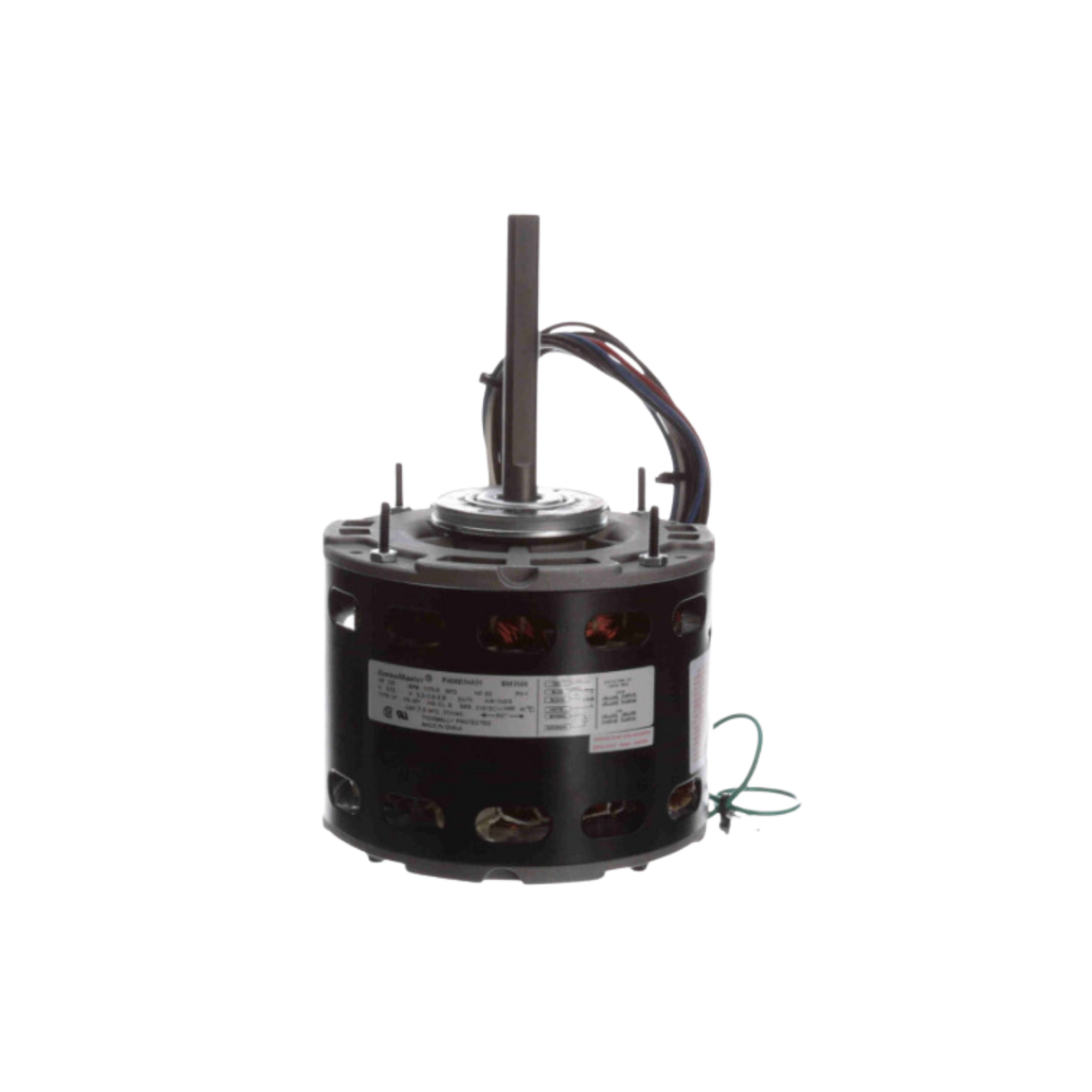

Regal Rexnord - Genteq EM3586 208-230 V 60 Hz 1075 RPM 1/3 HP Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Features:
Pro-E Series® - Direct Drive Fan & Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
25" Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
Specifications:
Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: EM3586
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 2.5-1.6-1.2 A
Motor Size: 1/3 HP
RPM: 1075
Frame: 48Y
No. of Phase: 1
No. of Pole: 6
Mounting: Extended Studs
Rotation: Reversible
Enclosure Type: Open Enclosed
Dimensions: 14.45" x 7.3" x 7.45"
Weight: 12.67 lb.
