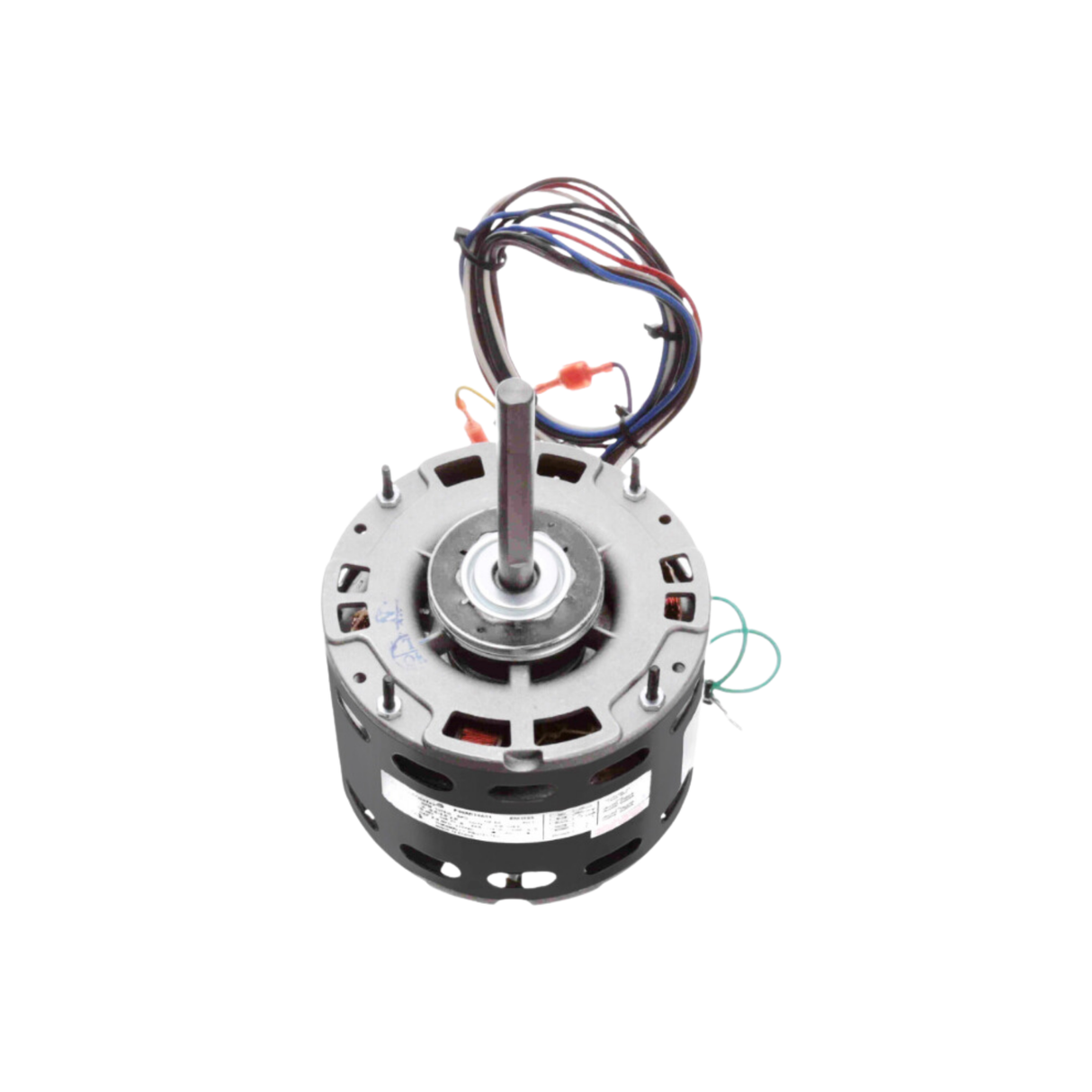

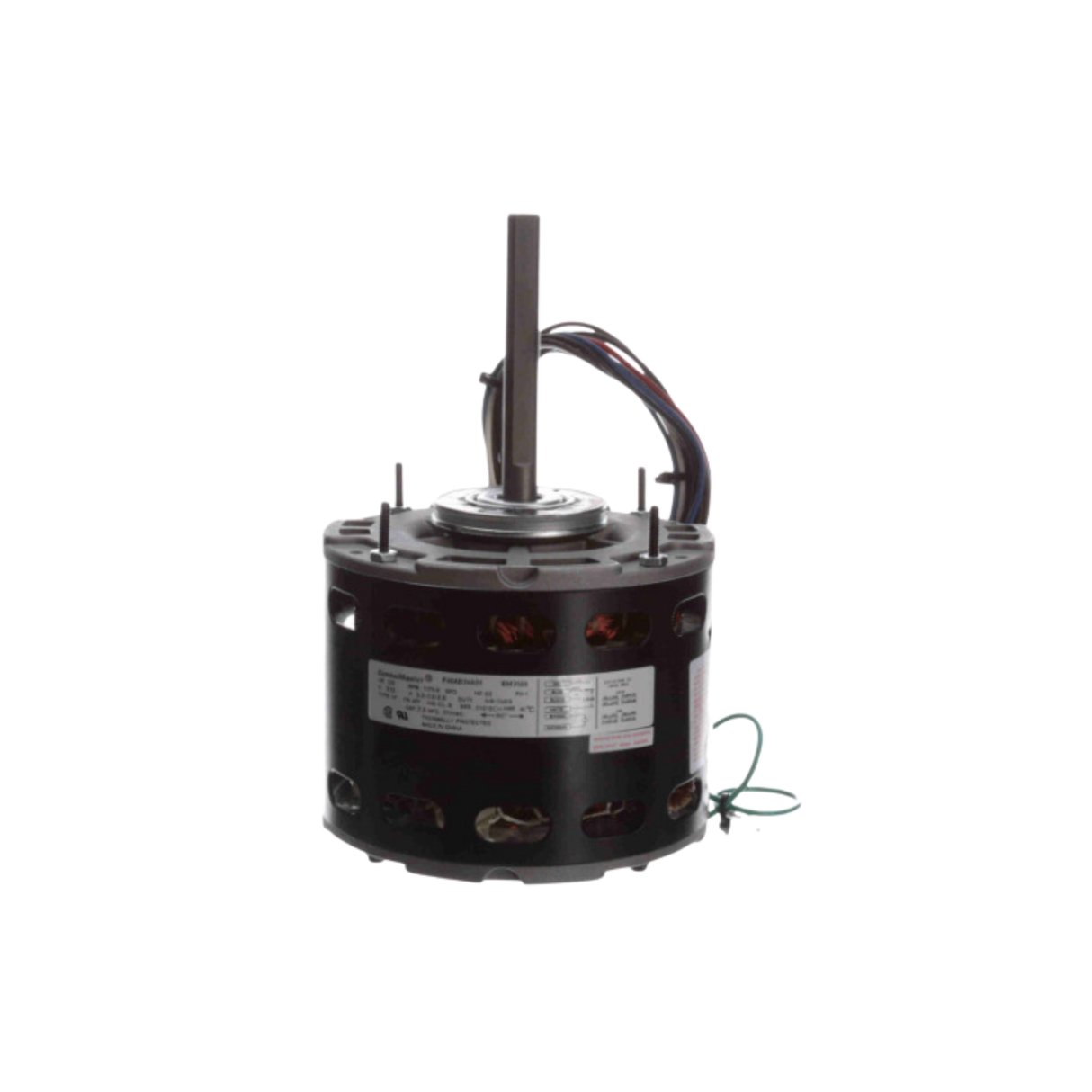

Regal Rexnord - Genteq EM3590 208-230 V 60 Hz 1075 RPM 3/4 HP Motor

Features:

Pro-E Series® - Direct Drive Fan & Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
25" Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: EM3590
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 5.1-4.2-3.1 A
Motor Size: 3/4 HP
RPM: 1075
Frame: 48Y
No. of Phase: 1
No. of Pole: 6
Mounting: Extended Studs
Rotation: Reversible
Enclosure Type: Open Enclosed
Dimensions: 16.0" x 7.4" x 7.6"
Weight: 18.25 lb.
