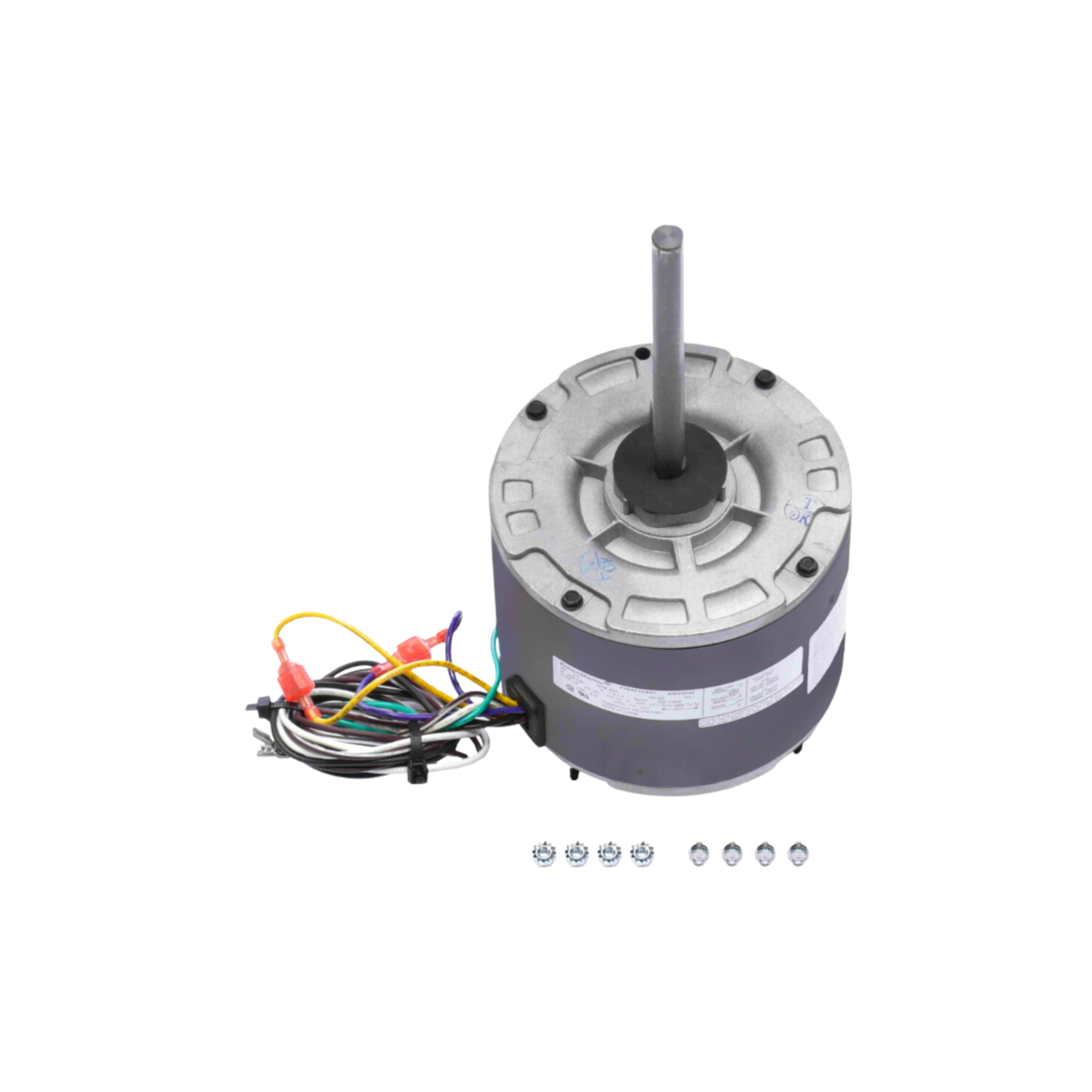

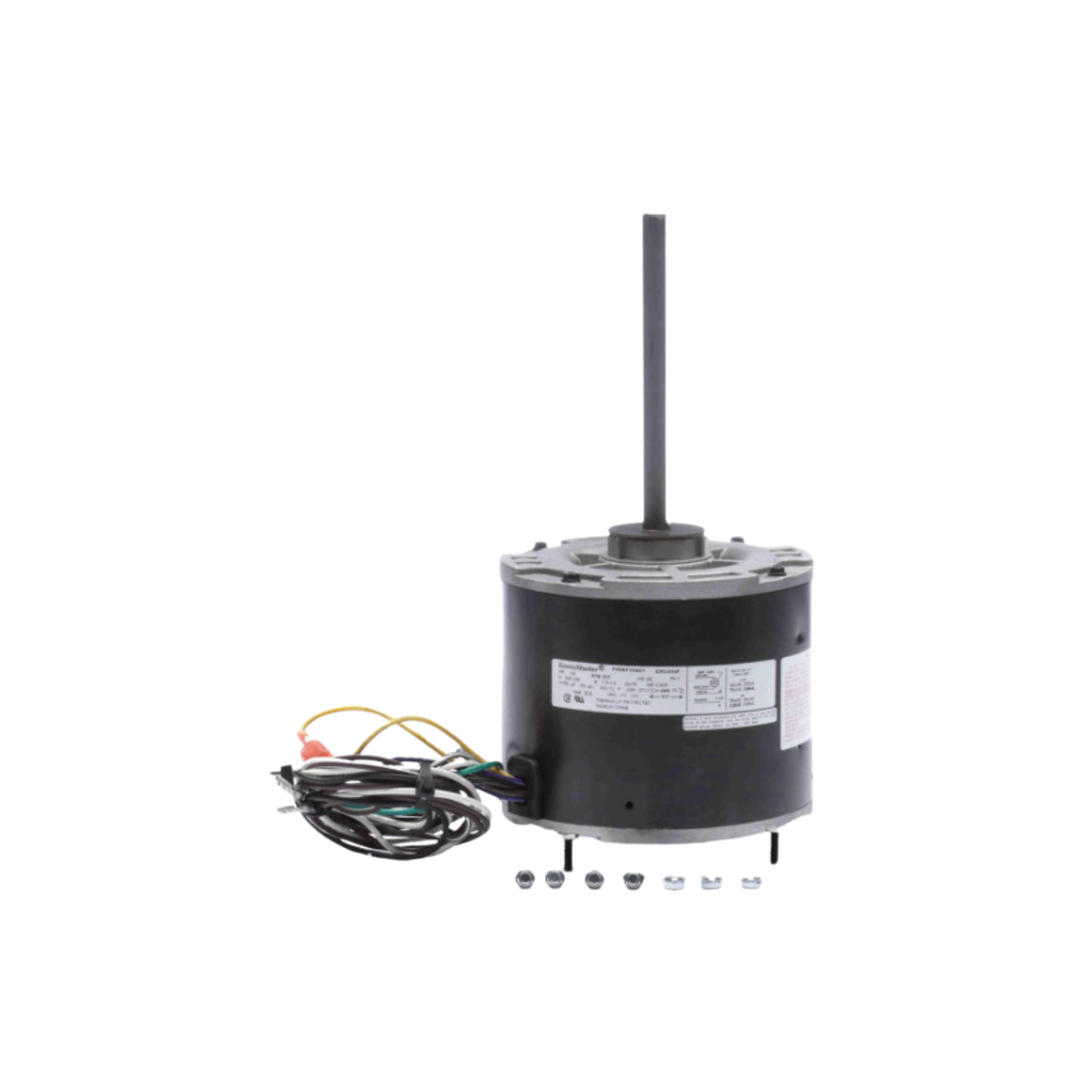

Regal Rexnord - Genteq EM3729F 208-230 V 60 Hz 1075 RPM 1/3 HP Motor

Features:

Pro-E Series® - Condenser Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
36" Leads
Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: EM3729F
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 2.2-2.5 A
Motor Size: 1/3 HP
RPM: 1075
Frame: 48Y
No. of Phase: 1
No. of Pole: 6
Mounting: Extended Studs
Rotation: Reversible
Enclosure Type: Totally Enclosed Air Over
Dimensions: 14.3" x 7.7" x 7.15"
Weight: 14.0 lb.
