WEG Electric Corp | SKU:
00118ES1B56-S

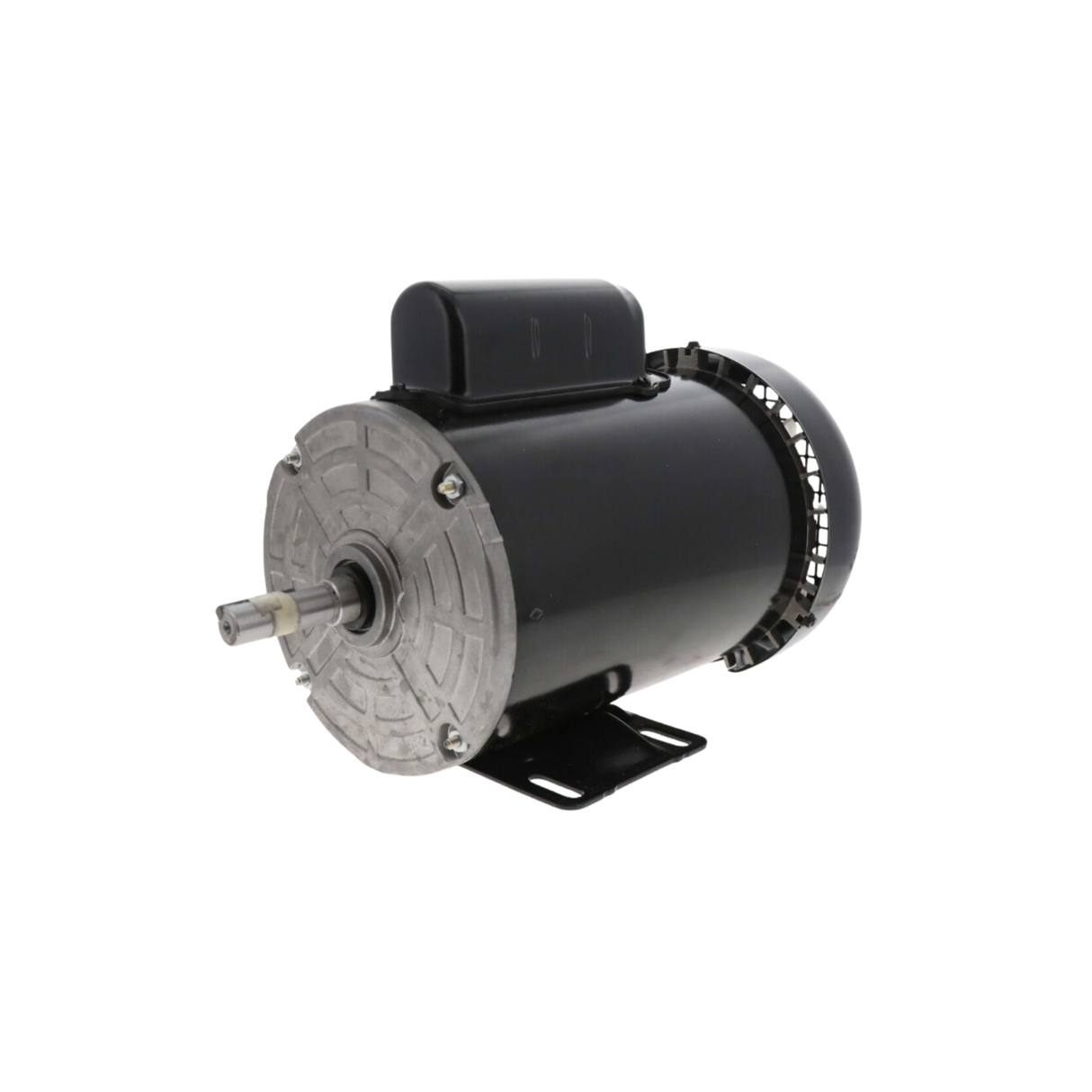

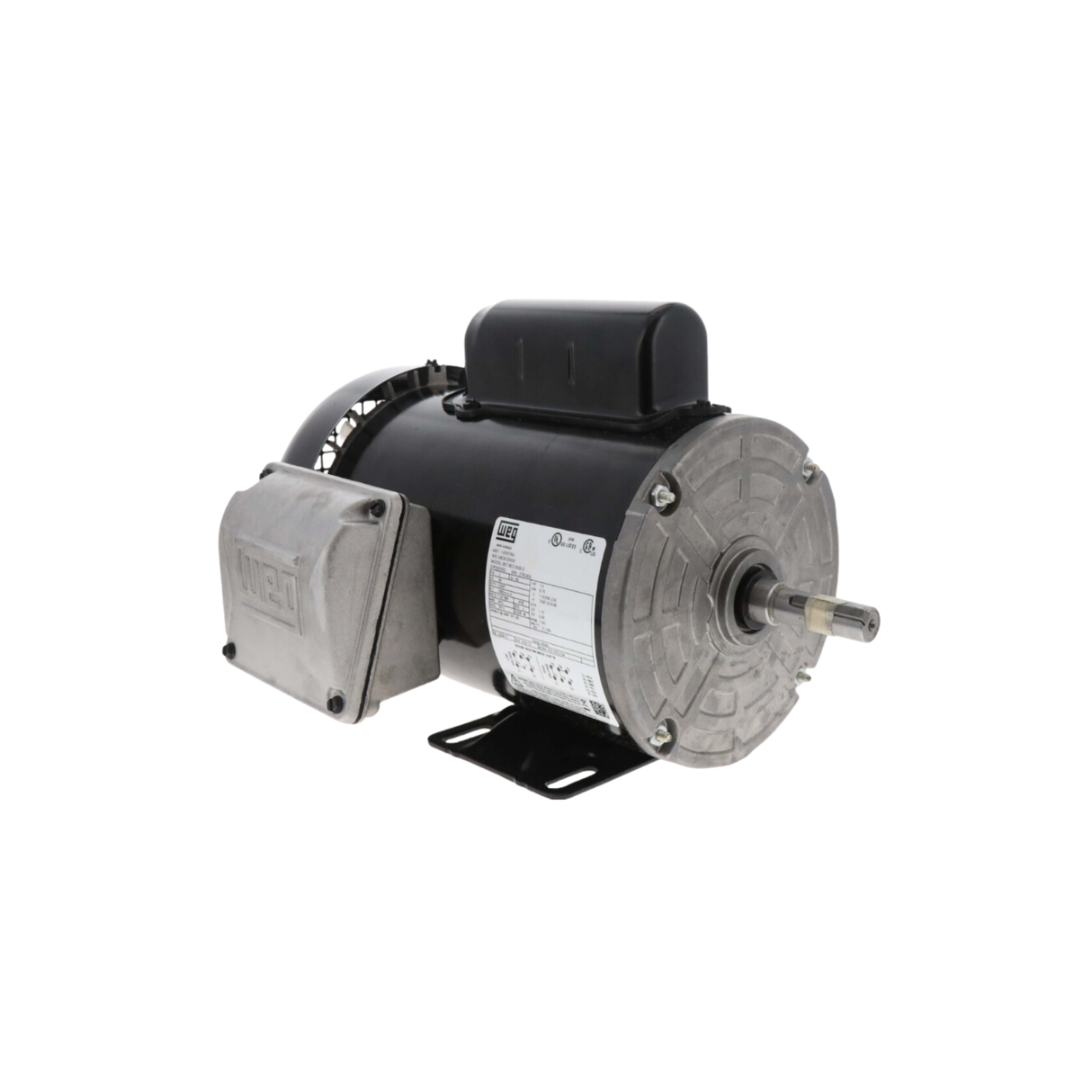

WEG Electric Corp 00118ES1B56-S 115/208-230 V 60 Hz 1745 RPM 1 HP General Purpose Motor
$467.26
Unit price /
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
WEG Electric Corp 00118ES1B56-S 115/208-230 V 60 Hz 1745 RPM 1 HP G...
$467.26
Unit price /
Unavailable
Description
Description
Specifications:
Manufacturer: WEG Electric Corp
Manufacturer Part Number: 00118ES1B56-S
Product Type: General Purpose Motor
Voltage Rating: 115/208-230 V
Frequency Rating: 60 Hz
Current Rating: 13.60 / 7.52–6.80 A
Motor Size: 1 HP
Frame Size: 56
RPM: 1745
No. of Phase: 1
No. of Pole: 4
Enclosure: Totally Enclosed Fan Cooled
Mounting: Foot
Dimensions: 18.25" x 11.95" x 10.6"
Weight: 36.67 lb.
