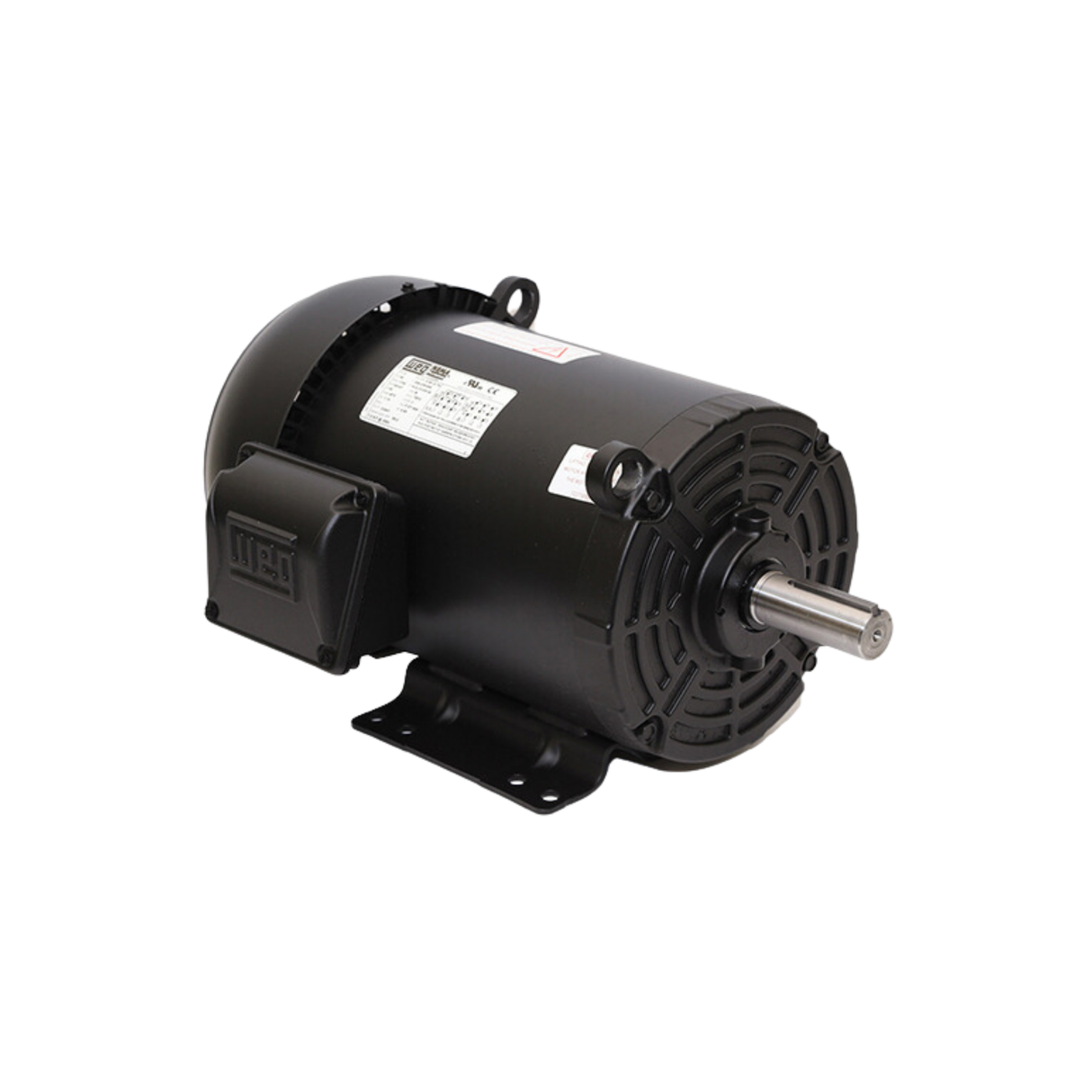

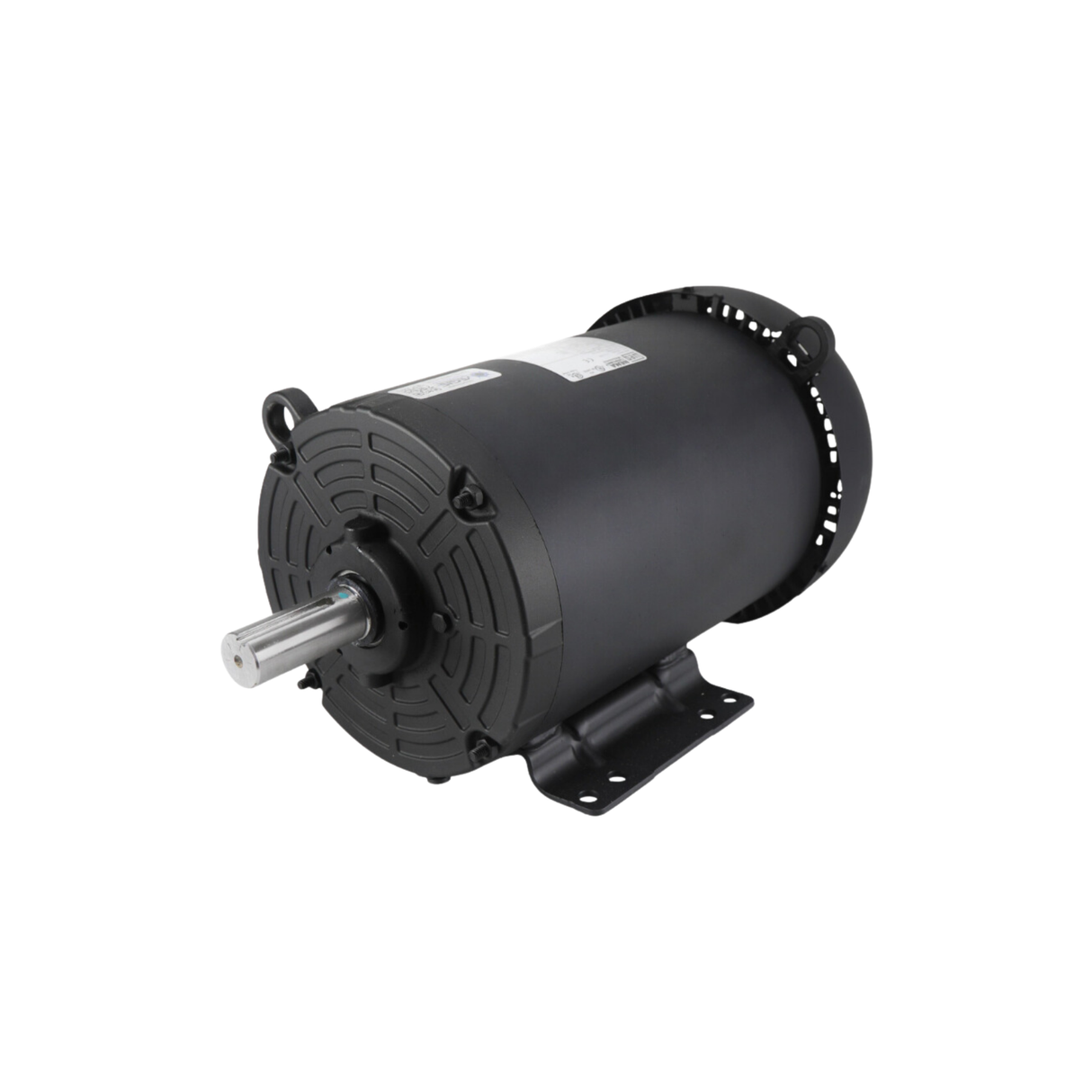

WEG Electric Corp 01018ET3E215T-S 208-230/460 V 50/60 Hz 1800 RPM 10 HP General Purpose Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
WEG Electric Corp 01018ET3E215T-S 208-230/460 V 50/60 Hz 1800 RPM 1...
Description
Description
Features:
Available 1-20 HP, 3600, 1800 and 1200 rpm, 208-230/460 V and 575 V
Dual rated for 60 Hz 208-230/460 V and 50 Hz @ 190-220/380-415 V
Optimized ventilation system for much cooler operation and extended life
Robust feet design for the toughest applications
Frames 182/4T and larger have two eyebolts for easy mounting in any position
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box is rotatable in 90 degrees increments for easy connection
AEGIS ring inside is available as an option
Suitable for VFD operation 1000:1 variable torque
Color coded leads for easy installation
Motor paint resistance exceeds 500 hours of salt spray test
Specifications:
Manufacturer: WEG Electric Corp
Manufacturer Part Number: 01018ET3E215T-S
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 50/60 Hz
Current Rating: 12.20 A
Motor Size: 10 HP
Frame Size: 213/5T
RPM: 1800
No. of Phase: 3
Enclosure: Totally Enclosed Fan Cooled
Mounting: Foot
Dimensions: 16.5" x 23.5" x 14.0"
Weight: 133.5 lb.
