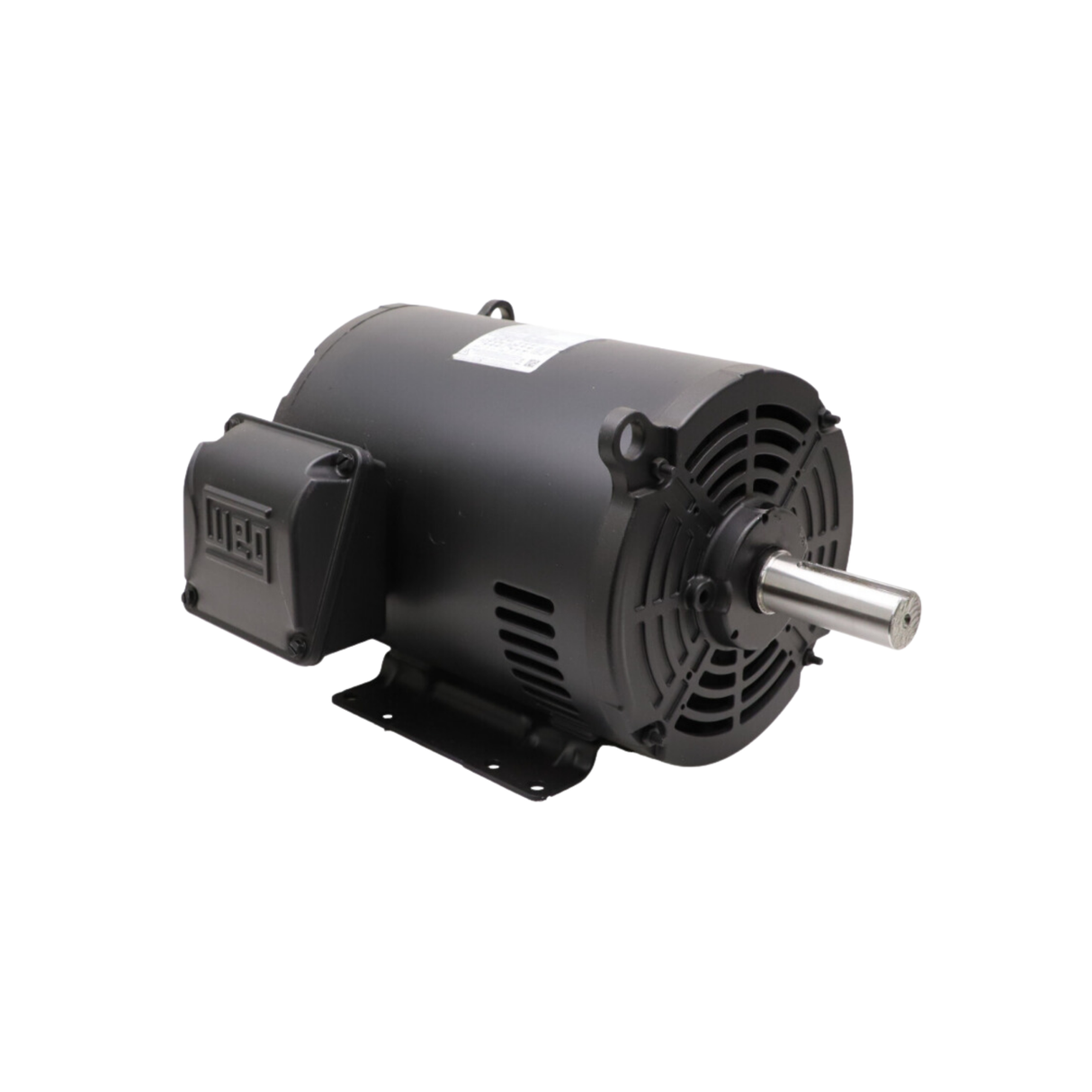

WEG Electric Corp 01518OT3E254T-S 230/460 V 50/60 Hz 1800 RPM 15 HP Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
WEG Electric Corp 01518OT3E254T-S 230/460 V 50/60 Hz 1800 RPM 15 HP...
Description
Description
Features:
Quality and flexibility in a new lighter frame
Option for internal AEIGS® ring
Motor frame painting system 500 hours salt spray resistant
VFD capable for 1000:1 speed ratio (variable torque)
Rated output: 0.25 hp to 25 hp
Number of poles: 2 to 6
Class F insulation
Frame Sizes: NEMA 56 to 254/6T
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
IP21 standard
F1 mount as standard
Aluminum endshields
Cast iron flanges for improved strength (182/4TC and larger)
Internal bolts give a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required
Double shielded ball bearings on frames 56 to 213/5T
Voltage: 208-230/460
Specifications:
Manufacturer: WEG Electric Corp
Manufacturer Part Number: 01518OT3E254T-S
Product Type: Motor
Voltage Rating: 230/460 V
Frequency Rating: 50/60 Hz
Current Rating: 18.30 A
Motor Size: 15 HP
Frame Size: 254/6T
RPM: 1800
No. of Phase: 3
Enclosure: Open Drip Proof
Mounting: Foot
Dimensions: 26.0" x 34.5" x 21.0"
Weight: 218.5 lb.
