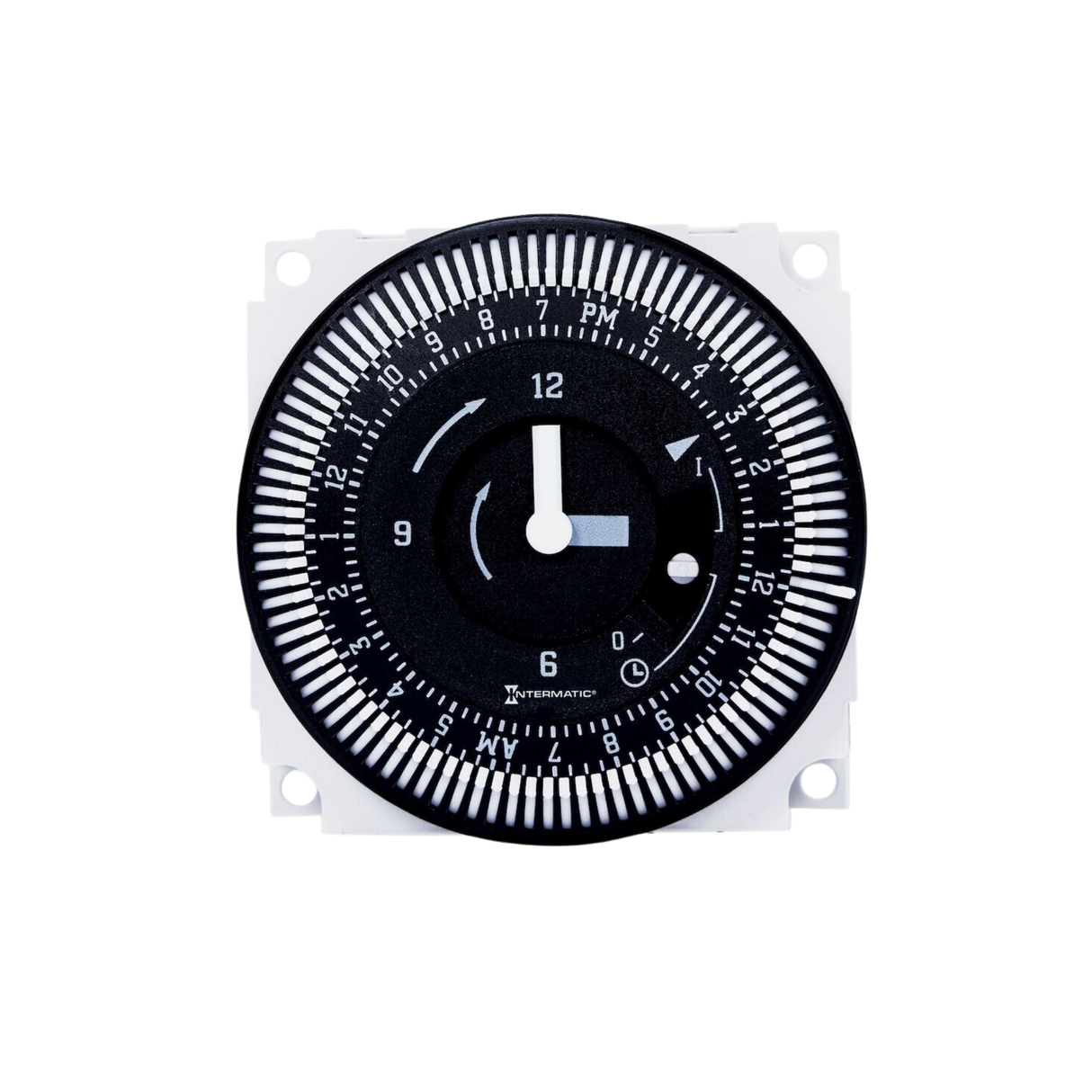

Intermatic FM/1QTUZH-120U 120 VAC 50/60 Hz 21 A SPDT Quartz Electromechanical Timer

The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.

Features:

21 A SPDT Switch
Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
72-hour carry-over battery backup on Q models
Noise immune – ideal for robust applications
Synchronous drive or quartz drive Q models with self-recharging battery backup
True clock face, easy-to-set
Available with or without override
Compact size
Clear plastic cover (DC-FME-A), sold separately
Standalone or with indoor/outdoor enclosure, sold separately

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: FM/1QTUZH-120U
Product Type: Electromechanical Timer
Voltage Rating: 120 VAC
Frequency Rating: 50/60 Hz
Current Rating: 21 A
Motor Load Ratings Range: 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
Resistive Load Rating: 21 A, 120 VAC, 50 Hz, 21 A, 120 VAC, 60 Hz, 21 A, 208 VAC, 50 Hz, 21 A, 208 VAC, 60 Hz, 21 A, 240 VAC, 50 Hz, 21 A, 240 VAC, 60 Hz, 21 A, 250 VAC, 50 Hz, 21 A, 250 VAC, 60 Hz
Tungsten (NO) Load Rating: 1350 W, 120 VAC, 50 Hz, 1350 W, 120 VAC, 60 Hz
Shortest Switching Time (ON/OFF): 15 Minute
Minimum Cycle Time: 15 Minute
Maximum Cycle Time: 24 Hour
Timing Interval: 15 Minute
Switch Type: SPDT
Clock Drive Type: Quartz
Operating Humidity: 0 to 95%, Non-condensing
Operating Temperature Range: -4 to 131 Degrees F
Mounting Options: Panel
Dimensions: 3.8" x 3.45" x 2.5"
Weight: 2.0 lb.
