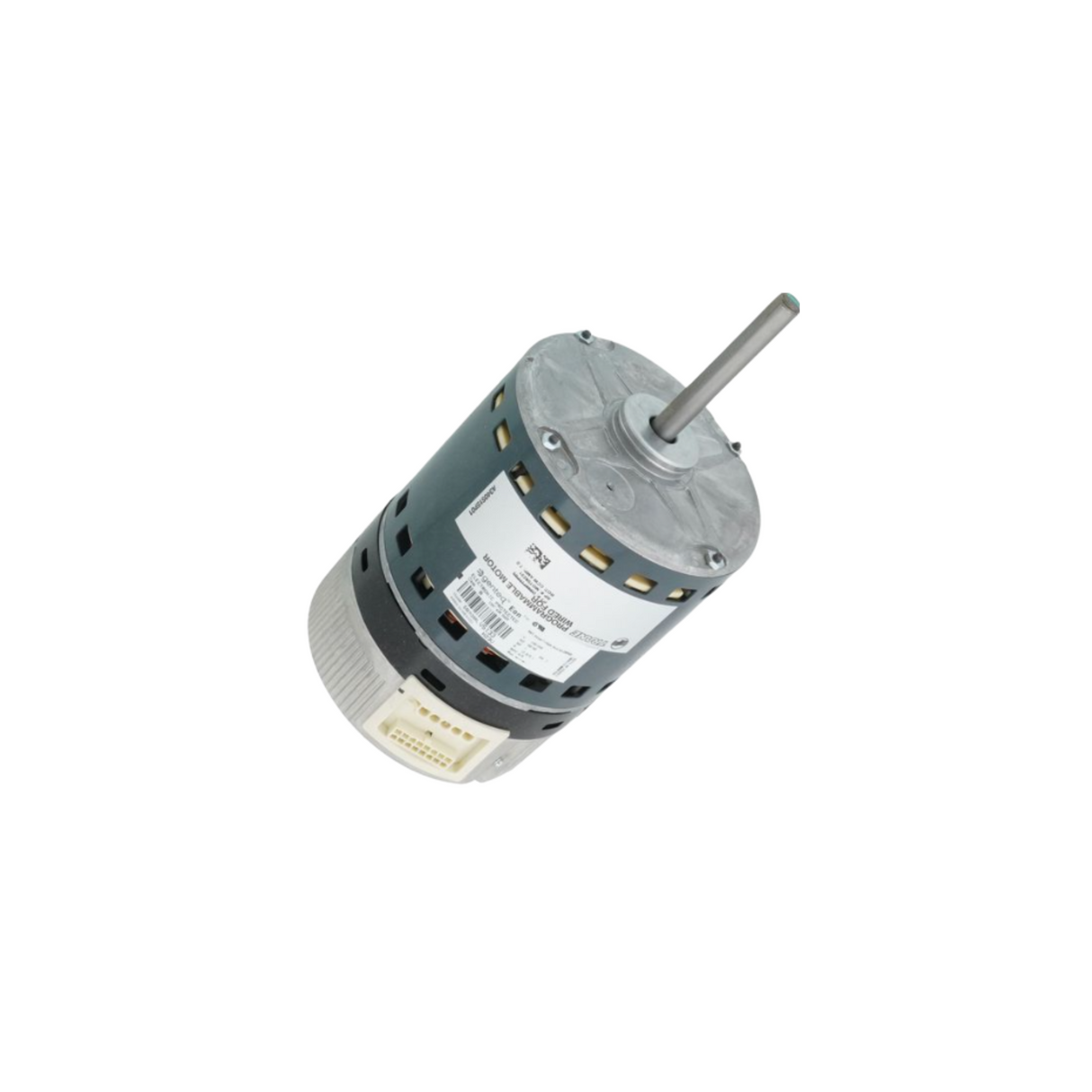

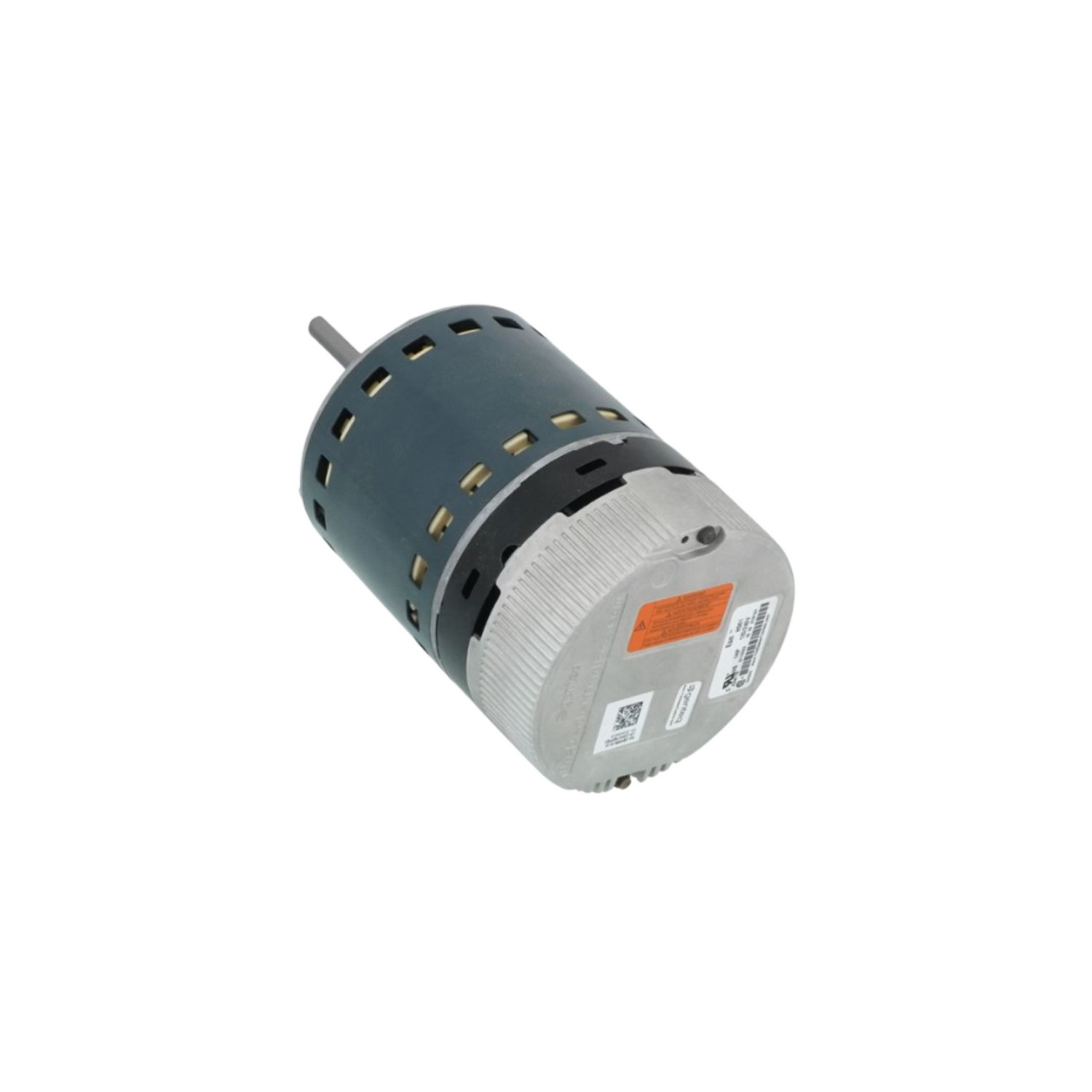

Trane MOT9231 1hp 115/230 V 1050 RPM 1 HP Counter Clockwise Motor

The MOT9231 is an OEM electronically commutated motor (ECM) used in Trane and American Standard HVAC systems. With a programmable module, it supports both 115 V and 230 V single-phase operation, delivering up to 1 HP of airflow performance.

Specifications:

Manufacturer: Trane
Manufacturer Part Number: MOT9231
Product Type: Motor
Voltage Rating: 115/230 V
Frequency Rating: 50/60 Hz
Current Rating: 7.0 A
Motor Size: 1 HP
Frame Size: 48
RPM: 1050
No. of Phase: 1
No. of Speed: 2
Enclosure: Open Drip Proof
Rotation: Counter Clockwise
Weight: 17.83 lb.
