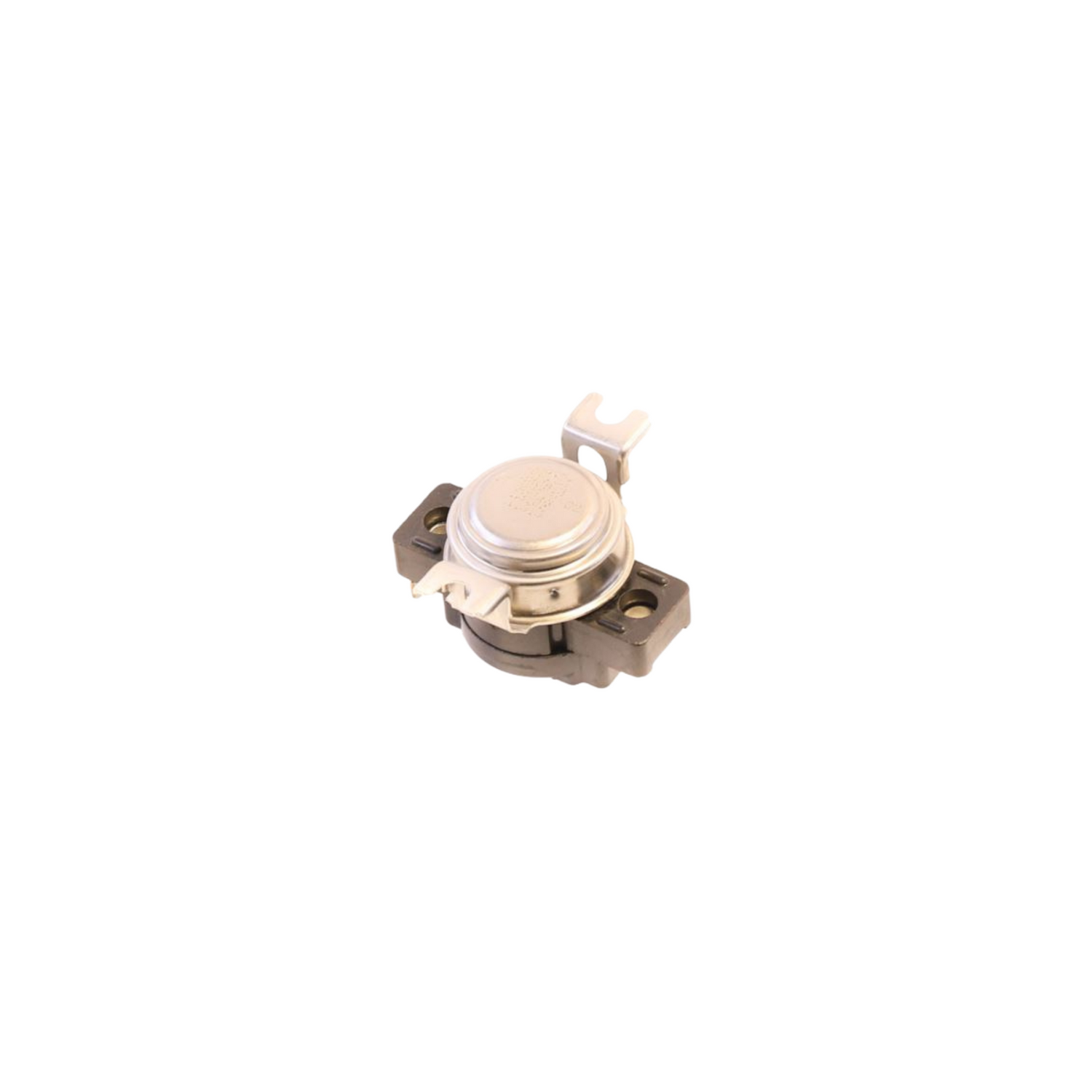

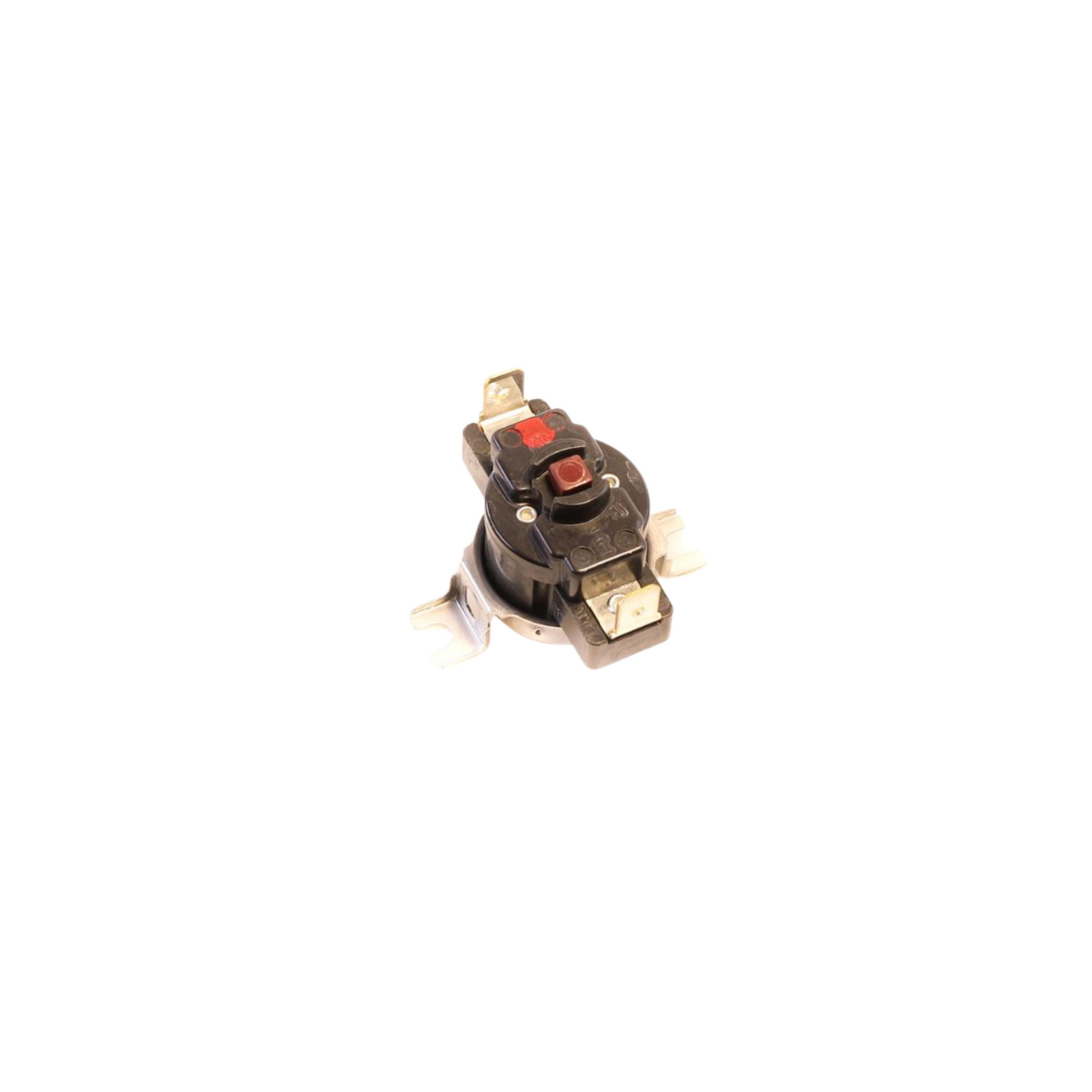

Rheem 47-22712-82 230 VAC SPST Limit Switch
Rheem 47-22712-82 230 VAC SPST Limit Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 47-22712-82
Product Type: Limit Switch
Category: General Purpose
Close Temperature: -31 Degrees F
Color Code: Red
Connections: 1/4" Quick Connects
Contact Orientation: Normally Closed
Disc Face: Enclosed
Maximum Current Rating: 25 A
Maximum Voltage Rating: 230 VAC
Mounting: Surface Mount - Flangeless
No. of Poles: 1
Open Temperature: 310 Degrees F
Reset Mode: Manual
Switch Type: SPST
TOD Switch Series: 60T
Tolerance Open Temperature: +/- 8 Degrees F
Dimensions: 2.55" x 3.1" x 2.05"
Weight: 0.05 lb.
