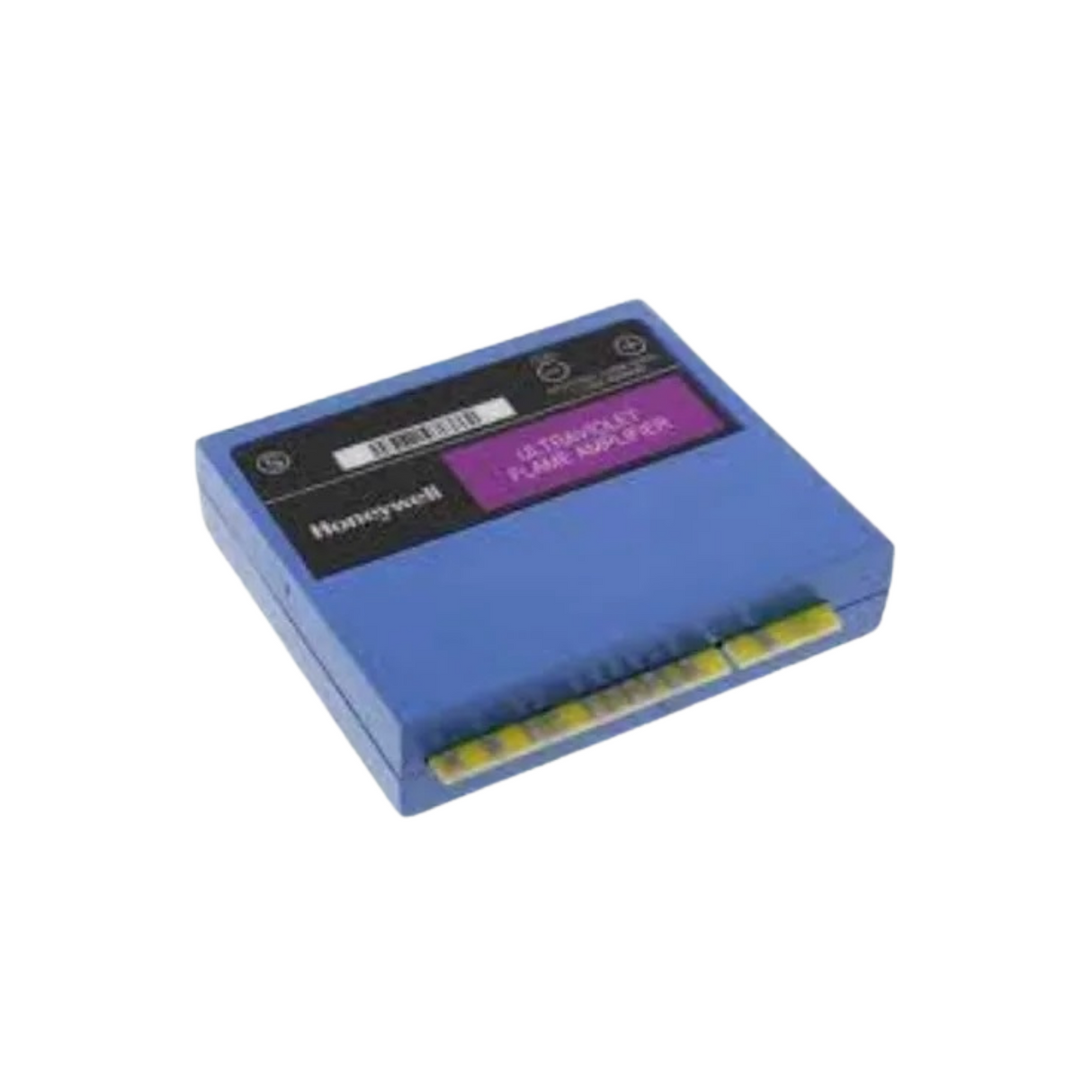

Honeywell R7849A1023 Solid State Plug-In Flame Amplifier

Solid state plug-in amplifiers that respond to flame detector inputs to indicate the presence of flame when used with 7800 series relay modules.

Features:

Flame failures response time of 0.8 or 3 sec
Flame signal strength ranges from 0 to 5 VDC
Plug into 7800 relay module through printed circuit board edge connector keyed for proper orientation
Flame signal test jacks to measure amplifiers flame signal voltage
Dynamic self check amplifiers test the detectors and all electronic components in the flame detection system 7800 series relay module locks out on safety shutdown with flame detection system failures
Compatible with existing Honeywell® flame detectors
For use with minipeeper C7027A, C7035A, C7044 gas, oil flame sensor
For 7800 series and R7140 relay module

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: R7849A1023/U
Type: Solid State Plug-In
Dimensions: 3 9/16" L x 7/8" W x 3" H
