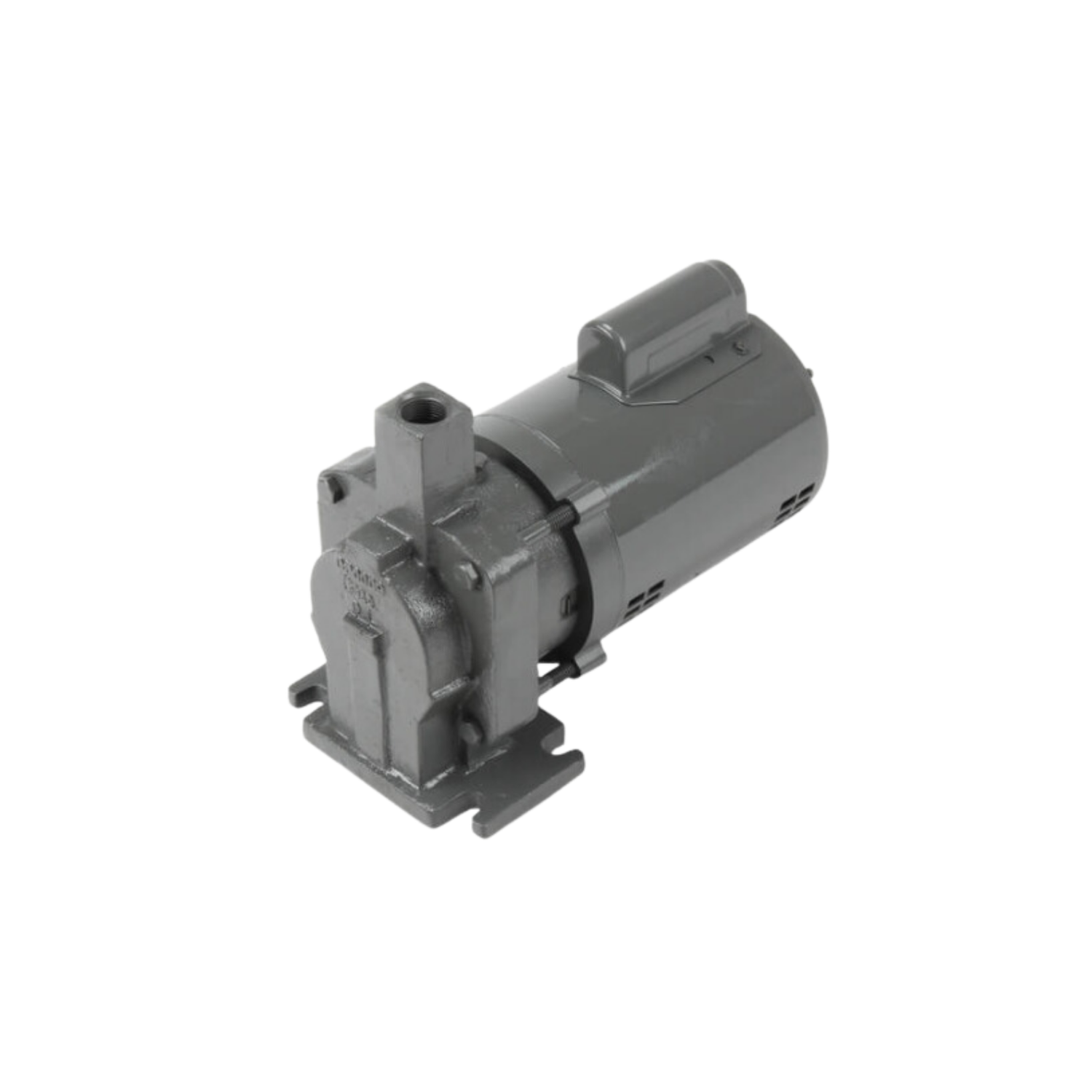

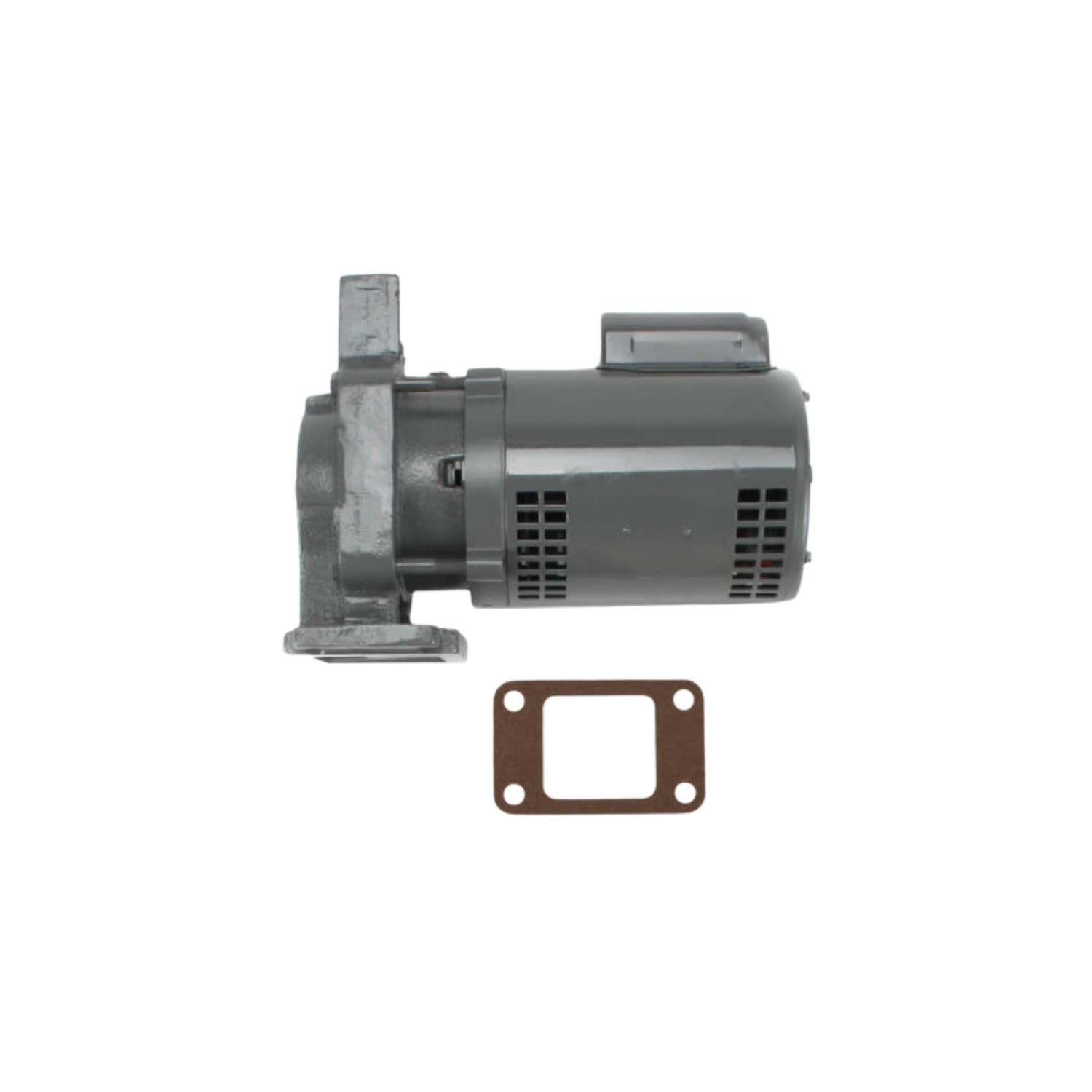

Xylem-Hoffman Specialty 180001 Pump & Motor

Features:

Vertical mounting design conserves floor space and protects motor
Low NPSH requiredΓÇôonly 2" (610mm) NPSH for Model 616PF-B
Precision balanced bronze impeller for vibration free operation
Bronze case wear rings protects casing from wear
Water slinger protects motor from water
Heavy duty ball bearing 3500 RPM motor
Maximum discharge pressure 40 psi (276 kPa)*
Maximum capacity 30 GPM (6840 LPS)*
18 gpm @ 20 psig
Pump seal maximum temperature 250?F (121?C)
Pump maximum temperature: 210F (99C) ΓÇô Model 616PF-B; 200F (93C) ΓÇô All other Models

Specifications:

Manufacturer: Xylem-Hoffman Specialty
Manufacturer Part Number: 180001
Product Type: Pump & Motor
Voltage Rating: 115/208-230 v
Motor Size: 1/3 HP
RPM: 3500
Maximum Temperature Range: 250 Degrees F
No. of Phase: 1
Dimensions: 10.65" x 16.65" x 12.0"
Weight: 31.89 lb.
