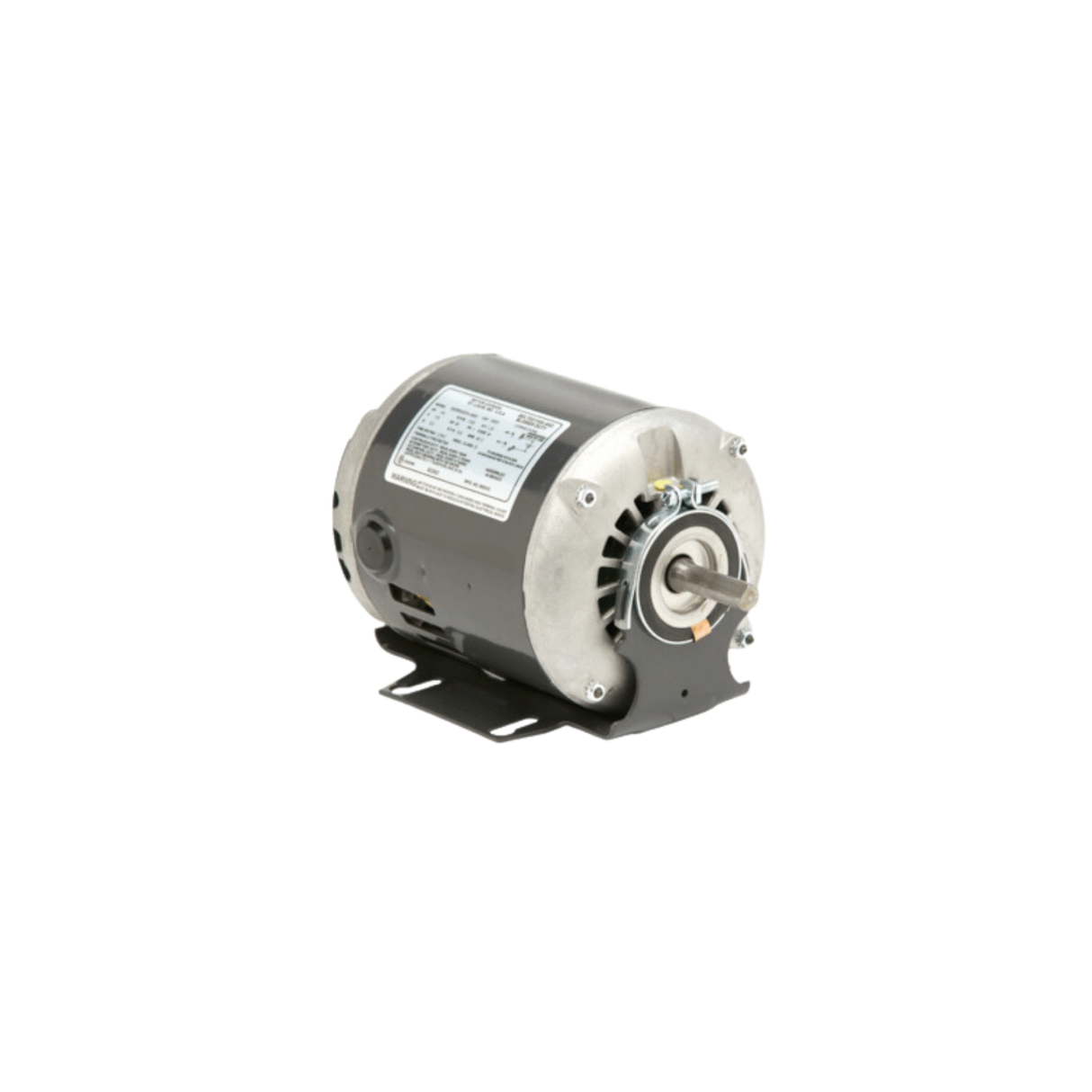

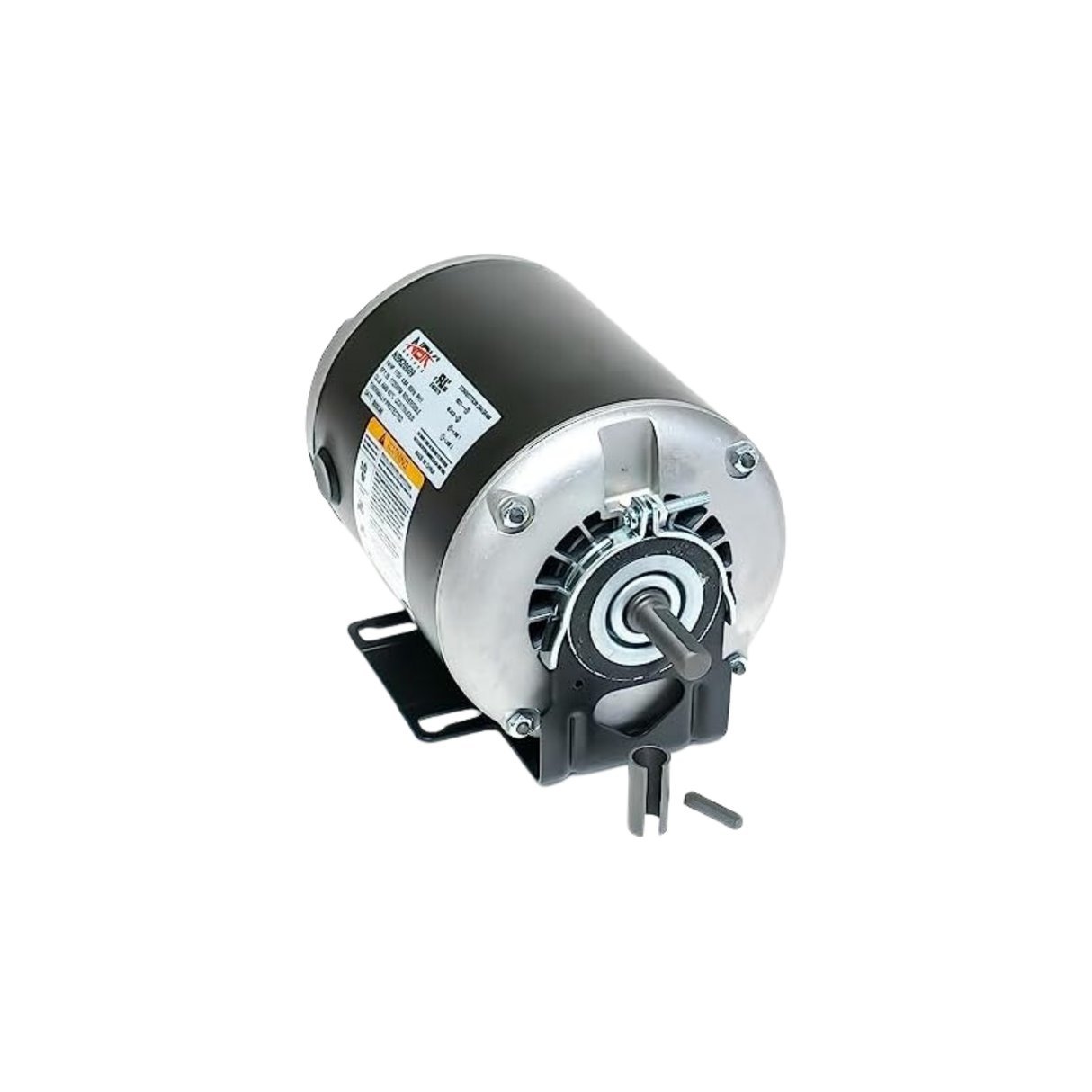

Nidec-US Motors 3618 115/208-230 VAC 1/4 HP 1725 RPM Blower Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors 3618 115/208-230 VAC 1/4 HP 1725 RPM Blower Motor
Description
Description
Features:
Resilient base
Class B insulation unless otherwise noted
With threaded conduit hole
Reversible rotation
Automatic reset thermal overload protector
Applications: Designed to meet manufacturer's requirements for belted fans and blowers
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: 3618
Product Type: Blower Motor
Voltage Rating: 115/208-230 VAC
Frequency Rating: 60 Hz
Current Rating: 5.2 A / 2.6 A
Motor Size: 1/4 HP
Shaft Diameter: 1/2"
RPM: 1725
Frame: NEMA 48Z
No. of Phase: 1
Rotation: Reversible
Enclosure Type: Open Drip Proof
Dimensions: 9.3" x 13.45" x 9.6"
Weight: 15.95 lb.
