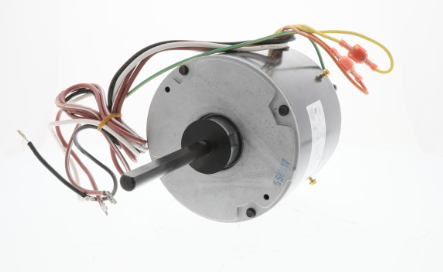

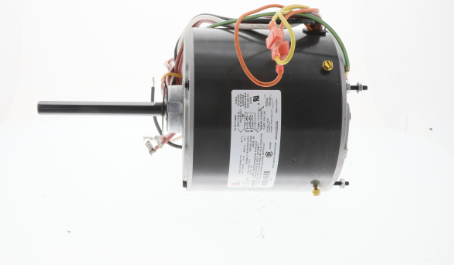

Nidec-US Motors 1861 208-230 VAC 1/3 HP 1075 RPM Condenser Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors 1861 208-230 VAC 1/3 HP 1075 RPM Condenser Motor
Description
Description
Motor, Condenser, 1/3HP, 208-230Vac, Single Phase, 1075 RPM, 2.0 Amps, 48Y NEMA Frame Size, Totally Enclosed Air Over Enclosure, Self Aligning Ball Bearing, Stud or Band Mount, 1/2" Shaft, Reversible Rotation, Permanent Split Capacitor Motor
Replaces: GE/Brownell Electric 5KCP39LGS407S Motor
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: 1861
Product Type: Condenser Motor
Voltage Rating: 208-230 VAC
Frequency Rating: 60 Hz
Current Rating: 2.0 A
Motor Size: 1/3 HP
RPM: 1075
Frame: NEMA 48Y
No. of Phase: 1
Rotation: Reversible
Dimensions: 7.7" x 13.55" x 7.1"
Weight: 13.79 lb.
