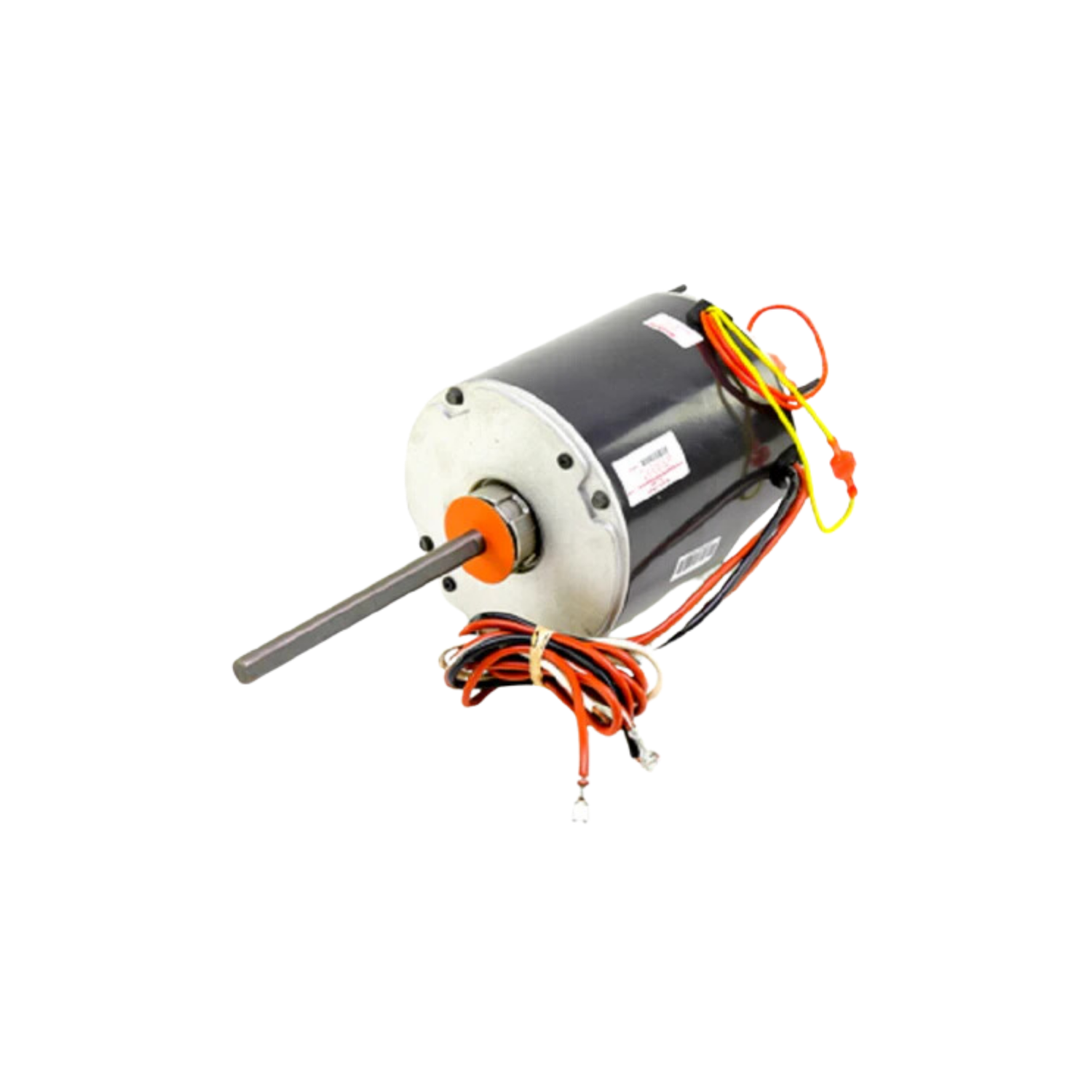

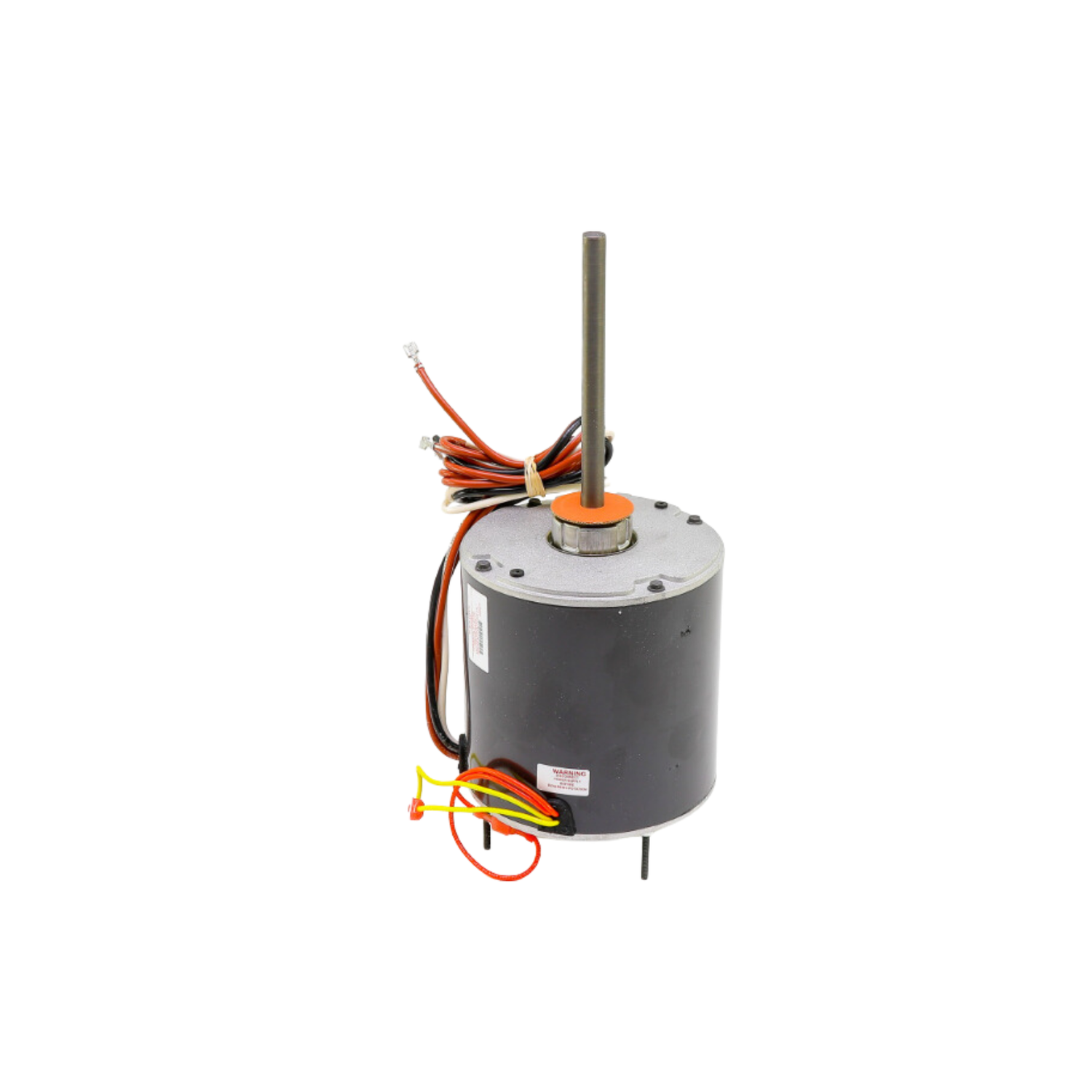

Nidec-US Motors 1879 208-230 V 3/4 HP 1075 RPM Condenser Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors 1879 208-230 V 3/4 HP 1075 RPM Condenser Motor
Description
Description
Features:
140°F (60°C) ambient design
Sleeve bearings have all angle thrust system
Class B insulation
Designed for use with 370V capacitors
Extended studs
30" leads
Hubless lead end
Drain holes both ends
Reversible rotation
Automatic reset thermal overload protector
Continuous-duty
Applications: Residential and commercial condensing unit fan motors to meet manufacturer's requirements
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: 1879
Product Type: Condenser Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Motor Size: 3/4 HP
RPM: 1075
Frame: NEMA 48Y
No. of Phase: 1
Enclosure Type: Totally Enclosed Air Over
Dimensions: 7.05" x 15.7" x 6.75"
Weight: 20.59 lb.
