Nidec-US Motors | SKU:
2193

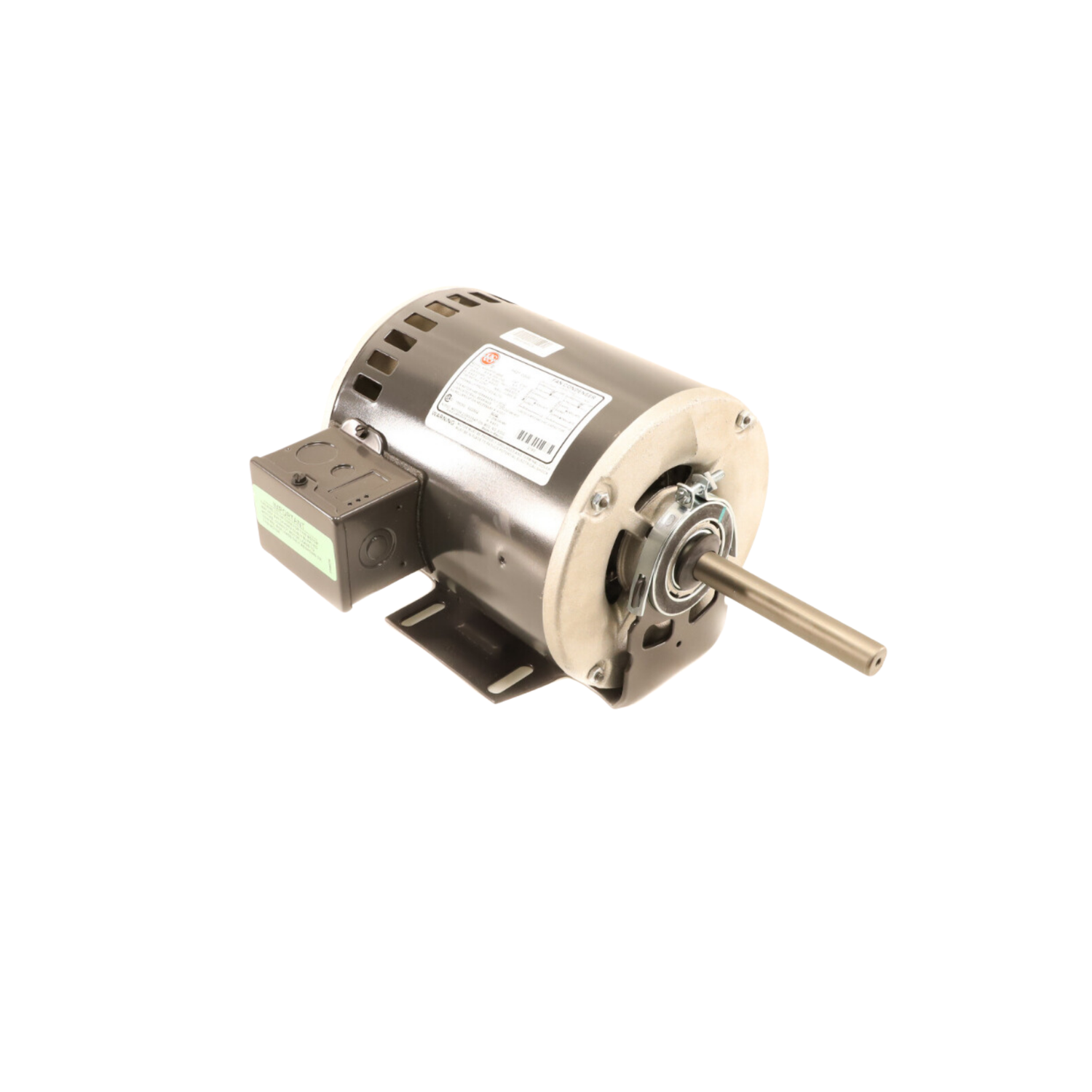

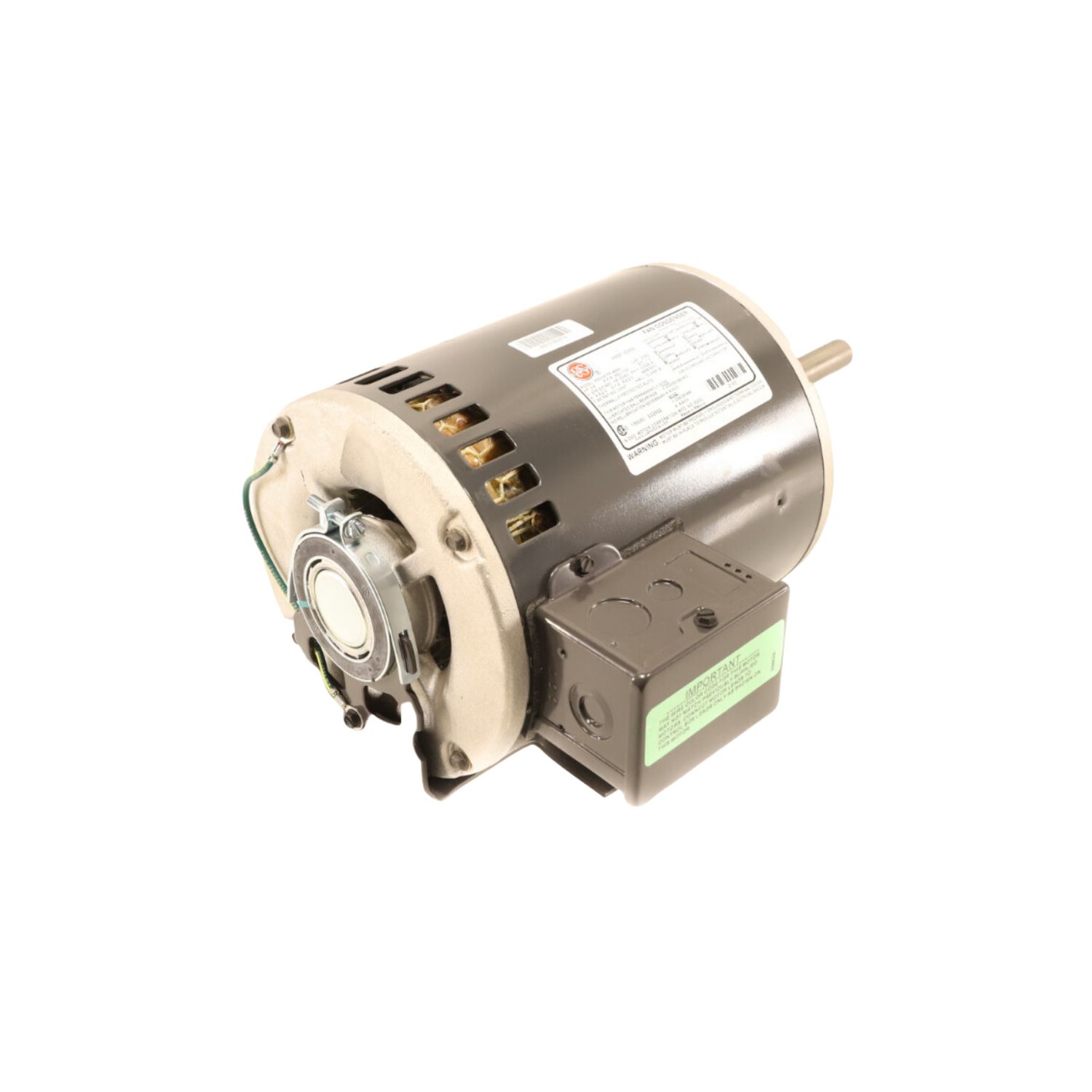

Nidec-US Motors 2193 208-230/460 VAC 3/4 HP 920 RPM Condenser Motor
$933.23
Unit price /
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors 2193 208-230/460 VAC 3/4 HP 920 RPM Condenser Motor
$933.23
Unit price /
Unavailable
Description
Description
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: 2193
Product Type: Condenser Motor
Voltage Rating: 208-230/460 VAC
Frequency Rating: 50/60 Hz
Current Rating: 4.8 A, 2.5 A
Motor Size: 3/4 HP
RPM: 920
Shaft Diameter: 5/8"
Frame: NEMA 56Y
No. of Phase: 1
Rotation: Counter Clockwise
Dimensions: 12.0" x 12.5" x 18.5"
Weight: 40.5 lb.
