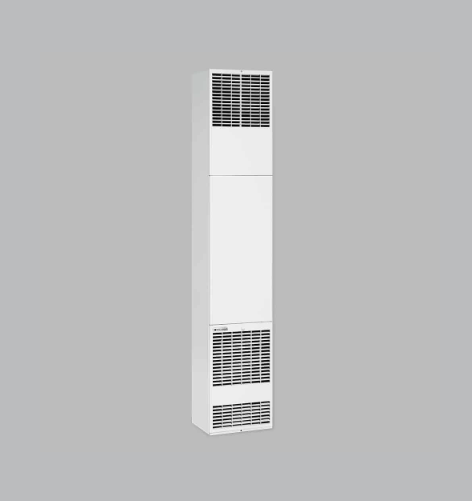

Cozy DVCF402D Direct-Vent Counterflow Natural Gas 40,000 Btu/hr. Furnace Standing Pilot

Top-Vent Counterflow Models require less than one square foot of floor space. They may be recessed into the stud space or surface mounted and vented vertically through the ceiling and roof. Direct-Vent Counterflow The forced-air circulation comfort heating system uses only outside air for combustion, as the burners are completely sealed within the combustion chamber. Combustion products are discharged outdoors through the wall vent. This eliminates the expense of a vent. All vent caps include a built-in “Bird Guard.” All vent material is included. Ideal for garages.

• Freestanding or recessed, Cozy Direct Vent Counterflow furnaces are ideal for homes, apartments, offices, schools, cabins and many other applications
• Counterflow blower system circulates ceiling-to-floor warm air
• “Matchless” pilot igniter
• Multi-room heating with optional outlet accessories to heat up to three rooms
• Equipped with a four-foot service cord
• Natural or propane models (conversion kits available)
• Automatic temperature and safety controls
• Resettable vent-limit safety switch (top-vent models)
• Thermostat Sold Separately – Part #8967

“Matchless Pilot Igniter”
All models include a “matchless” pilot igniter. Assures convenient pilot lighting without matches.

Thermostat Sold Separately – Part number: 8967

Contemporary Finish
Soft-white, powder-coated, high-heat resistant finish to complement any décor.

Dimensions and Clearances

Top-Vent

4″ to an intersecting wall
4″ from the top of the furnace to the ceiling or overhang
2″ from the top of the furnace to the ceiling or overhang on 60085 Series
0″ to finished floor

Direct Vent

4″ to an intersecting wall
4″ from the top of the furnace to the ceiling or overhang
0″ to finished floor
59″ from the finished floor to the center line of the vent cap for Model Series 40073 and 40077
68 1/2″ from the finished floor to the center line of the vent cap for Model Series 55073 and 62577
