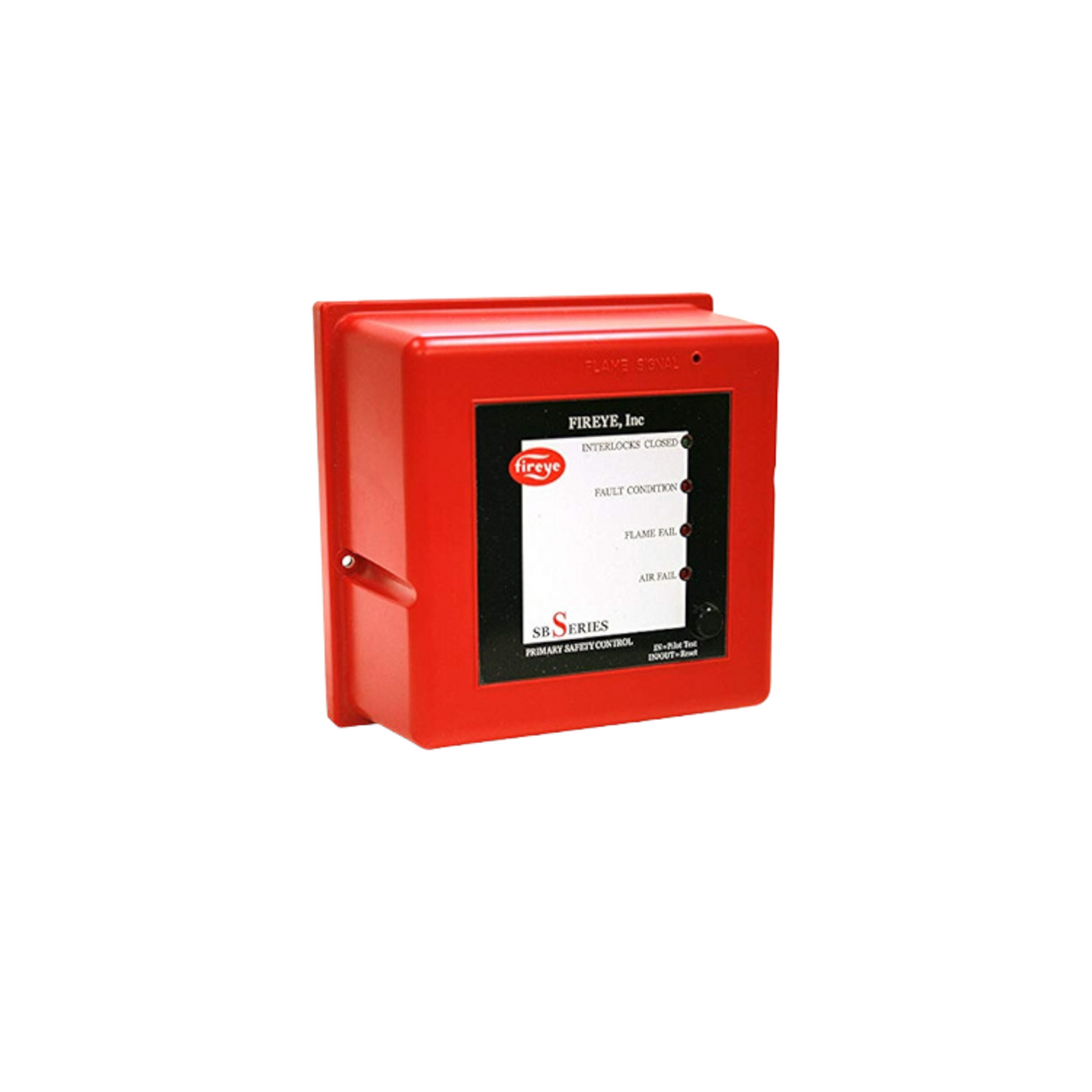

Fireye SB560532AA Flame Safeguard Control

The Fireye SBSeries Flame Safeguard Control is a compact, microprocessor based, modular burner
management system designed to provide automatic ignition and continuous flame monitoring for commercial sizes of heating and process equipment firing any type of fuel.

The control unit includes all the necessary digital logic and analog measuring circuitry to control the
sequence and monitor the flame of single gas, oil or combination gas/oil burners. Three available control
sequences are no-purge, purge, and modulation (air damper control). The part number specifies the
various features such as the flame sensor type, no purge, purge, modulation, proof of air opening at
start, and timings; thus the designer has control and protection against field tampering of critical
sequences.

Specifications:

Manufacturer: Fireye
Manufacturer Part Number: SB560532AA
Product Type: Flame Safeguard Control
Voltage Rating: 120 VAC @ 50/60 Hz
Ignition Timing: 10, 15 Seconds
Dimensions: 6" x 7.25" x 6.4"
Weight: 2.22 lb.
