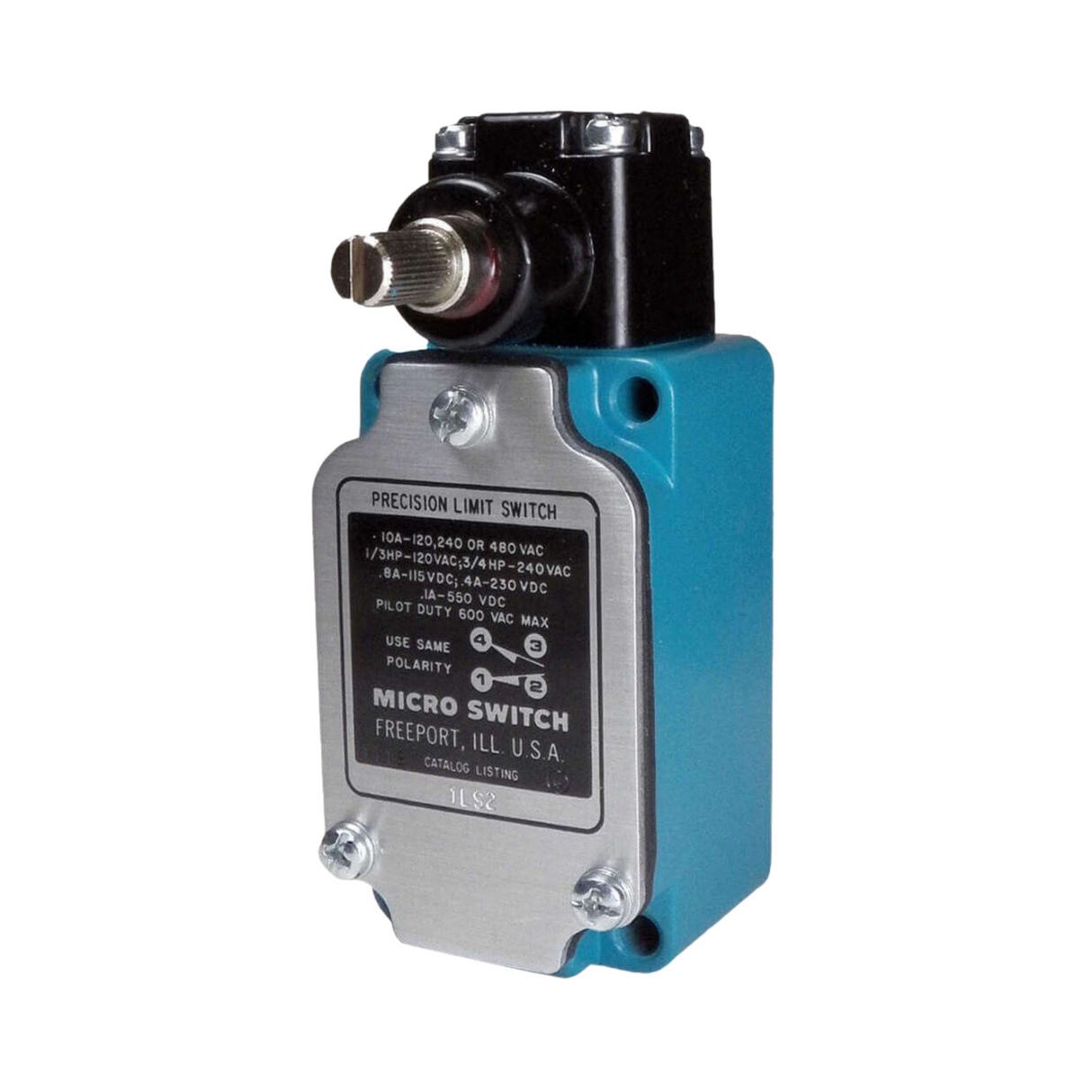

Honeywell 1LS2 Enclosed Limit Switch Side Actuator, SPDT

1LS2 Limit Switch from Honeywell is an enclosed limit switch that is designed for various industrial applications. This Honeywell Switch comes with a wide choice of heads and actuators, as well as a variety of operating characteristics to offer design flexibility and superior performance. Compact in size, this SPDT Limit Switch fits into places too small that are not possible for other adjustable switches.

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: 1LS2
Item: Enclosed Limit Switch
Actuator Location: Side
Actuator Style: Rotary Head, No Lever
Amps: 10
Body Material: Zinc Die Cast
Contact Form: 1NC/1NO, SPDT, Snap Action, Double Break
Electrical Connection: Screw Terminals
Height: 4.05"
Width: 1.19"
Depth: 1.13"
IP Rating: No IP Rating
Movement: Rotary, Standard
NEMA Rating: 1, 3, 4, 6, 13
Operating Force: 4.5 in.-lb.
Operating Temp. Range: -20 Degrees to 160 Degrees F
Travel: Pretravel (PT) 20 Degrees max; Overtravel (OT) 30 Degrees min; Differential Travel (DT) 12 Degrees max
Voltage Rating: 120AC/240AC/480AC
Wiring Entry: 1/2"-14 NPT Conduit
