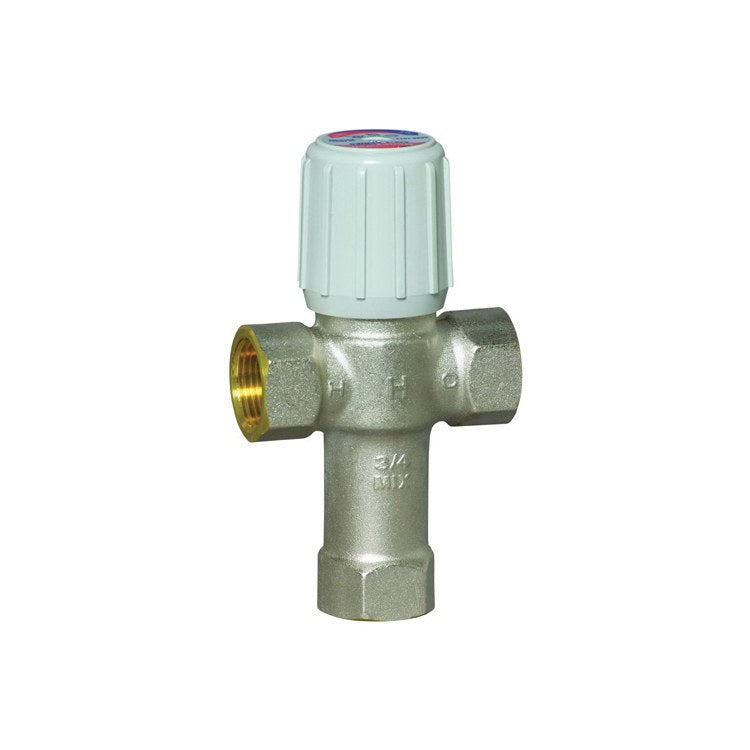

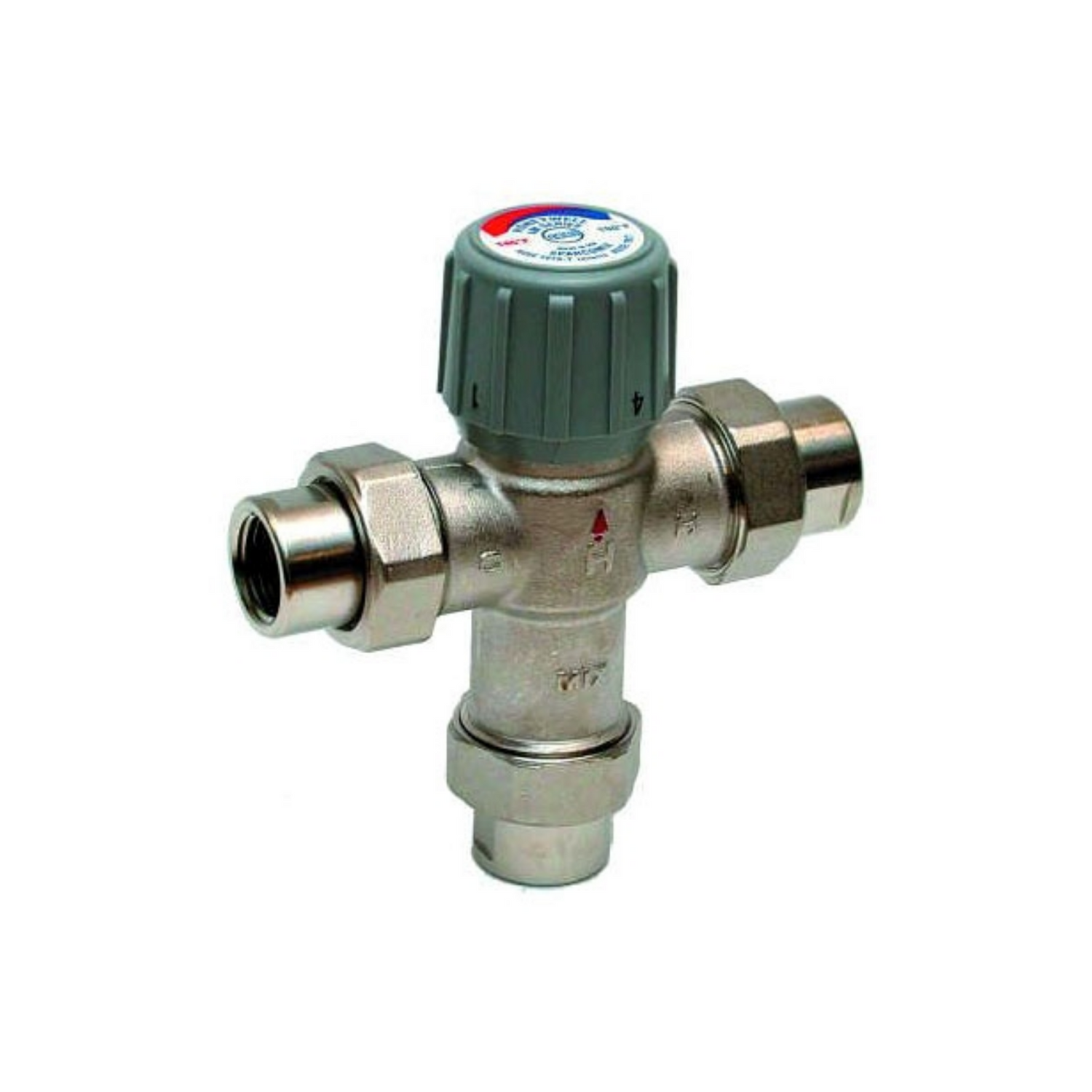

Honeywell AM102-1LF 1" Npt. Aquamix Lead Free Mixing Valve 70-145F
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: AM102-1LF
Product Type: Thermostatic Mixing Valve
Nominal Size: 1"
End Connection: Union Threaded x Union Threaded x Union Threaded
End to End Distance: 7"
Base to Inlet Dimension: 3.9"
Inlet to Mixing Outlet Dimension: 3.9"
Body Material: Non-Stick Coated Nickel Plated Brass
Flow Rate: 0.5 GPM
Temperature Rating: 212 Deg F
Pressure Rating: 150 PSI
Length: 6.8"
Operating Temperature: 70 to 145 Deg F
Flow Capacity: 3.9 Cv
O-Ring Material: EPDM Rubber
Dimensions: 5.1" x 1.95" x 1.9"
Weight: 0.05 lb.
