Honeywell  |  SKU: BZ-2RW863-A2

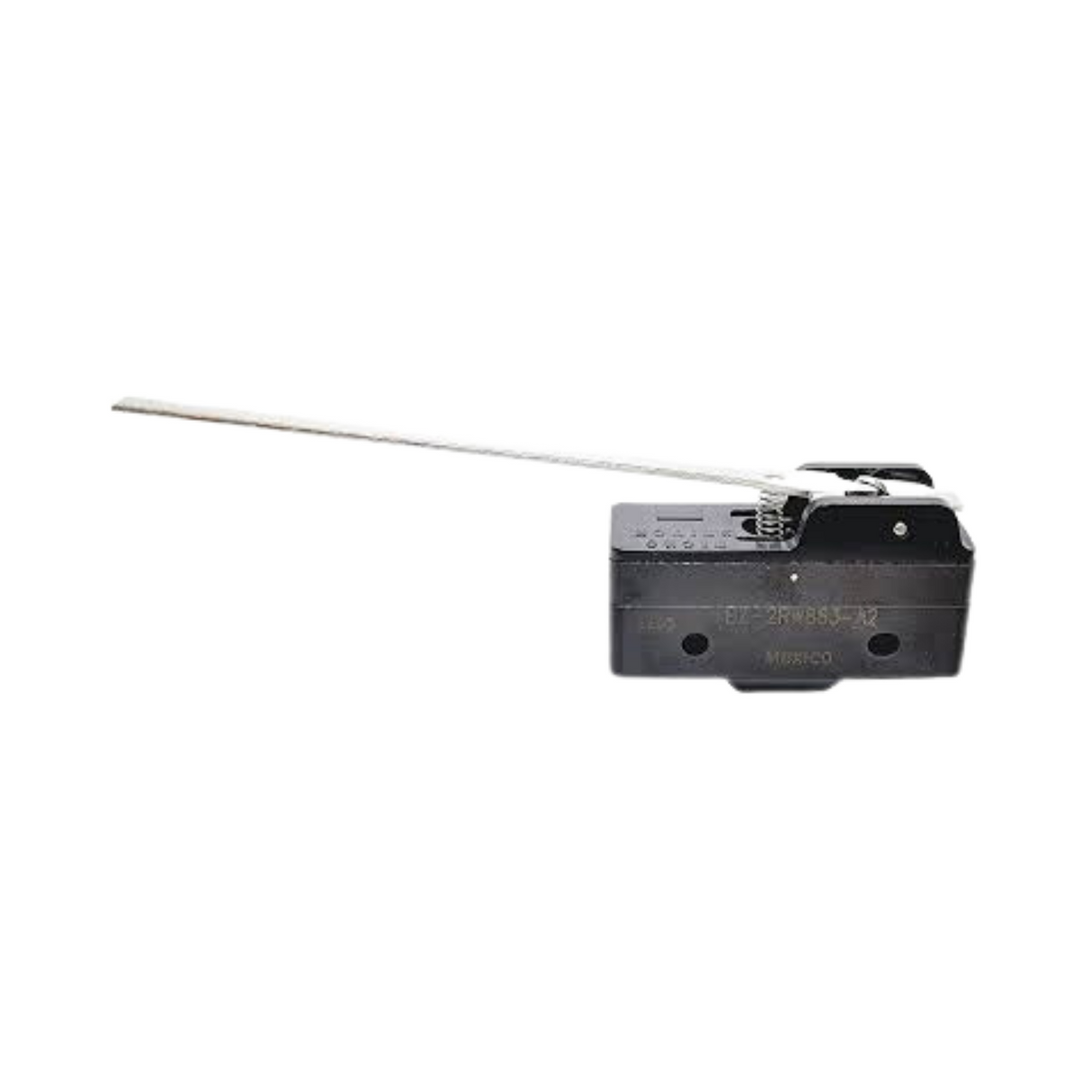

Honeywell BZ-2RW863-A2 Micro Switch Industrial Snap Action Switch, 15A@480V, 15A@240V, Lever, SPDT, Screw (Limited Availability)

$33.88

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw (SPDT), 15 A 125/250 Vac, ENEC 16 A 250 Vac, 152,4 mm [6.0 in] Straight Lever Actuator, Solder Termination, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC

Features:

Accepted world-wide standard "Large Basic" switch
Low operating force and differential travel
Long mechanical life up to 20,000,000 cycles at 95% survival
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Choice of actuation, termination and operating characteristics

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: BZ-2RW863
Mounting: Through Hole
Pole Throw Configuration: SPDT
Switch Configuration: N.O./N.C.
Actuator Material/Style: Straight Lever
Contact Rating @ Voltage: 16@250VAC A
Maximum Movement Differential: 3.56 mm
Operating Force: 0.28 N
Termination Style: Quick Connect
Dimension: 163.68 x 17.45 x 44.45 mm
Body Orientation: Straight
IP Rating: N/A
