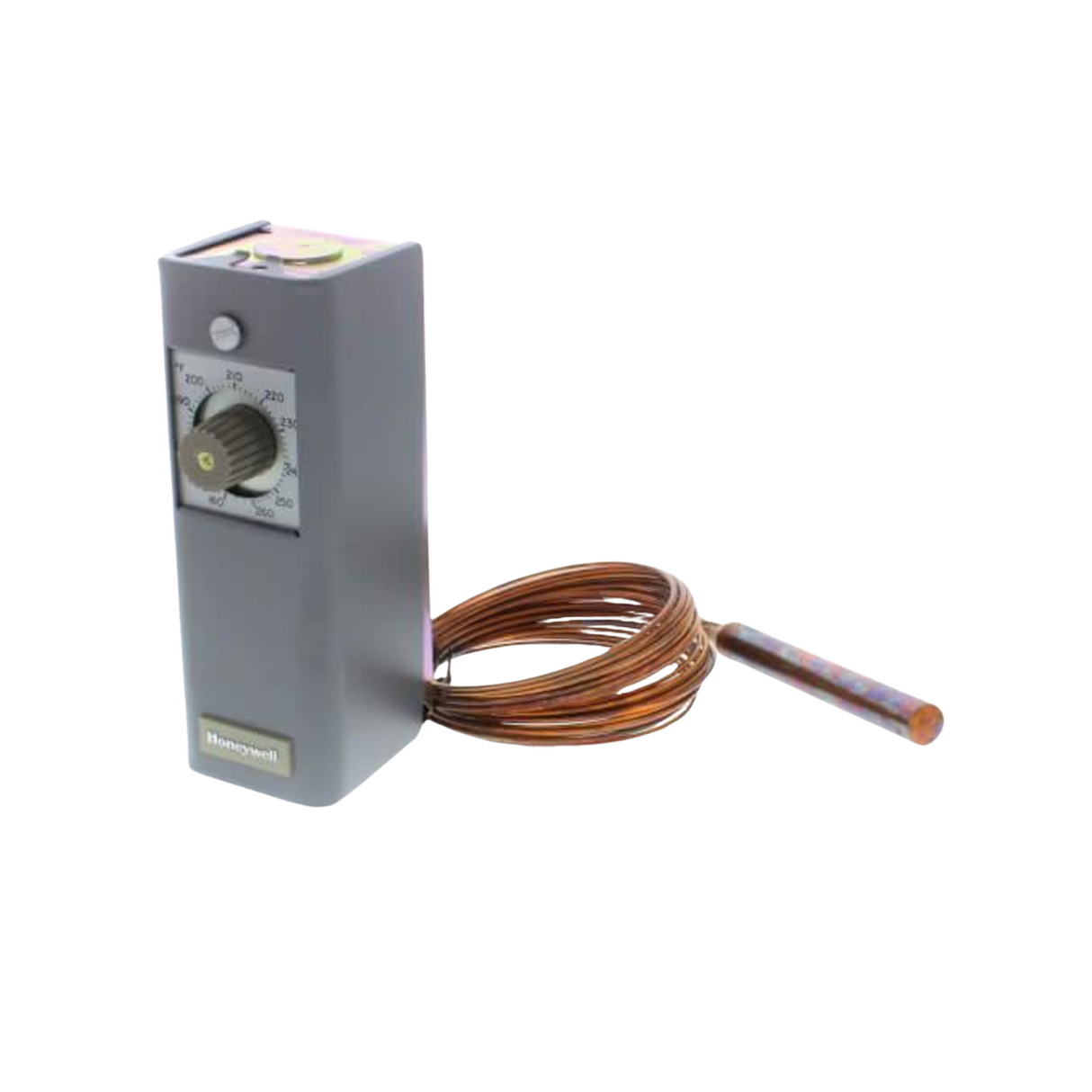

Honeywell T675A1102 Remote Temperature Controller
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Features:
Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area
Typical uses include control of dampers and valves in heating cooling and heating cooling system
Fast response models (available for use in return air duct) operate approximately four times faster than standard models
Controller can be mounted in any position
Ambient temperature compensation provides good temperature control
T675A models with fixed differential have an electrical rating of 125 VA at 120/208/240 and 277 VAC
T675B models have 125 VA pilot duty up to 277 VAC
Set point temperature range: 160 260 deg F
Differential temperature: 3 10 deg F
Standard/Approvals: CSA Certified UL E4436Application: Regulates Temperature of Air or Liquids in Ducts Pipes Tanks and Boilers
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: T675A1102
Dimensions (LxWxH): 5.35x12.75x2.45
Weight: 1.57LB
Voltage: 120Vac or 240/277Vac
Temperature Range: 160-260 Degree Setpoint Temperature Range
Maximum Operating Temperature: 280 Degree Maximum Operating Temperature
Differential Temperature: 3-10 Degrees
Capillary Length: 20" Capillary Length
Output: 1 SPDT Output
Material: Bulb - Copper
