Honeywell  |  SKU: LSZ54N

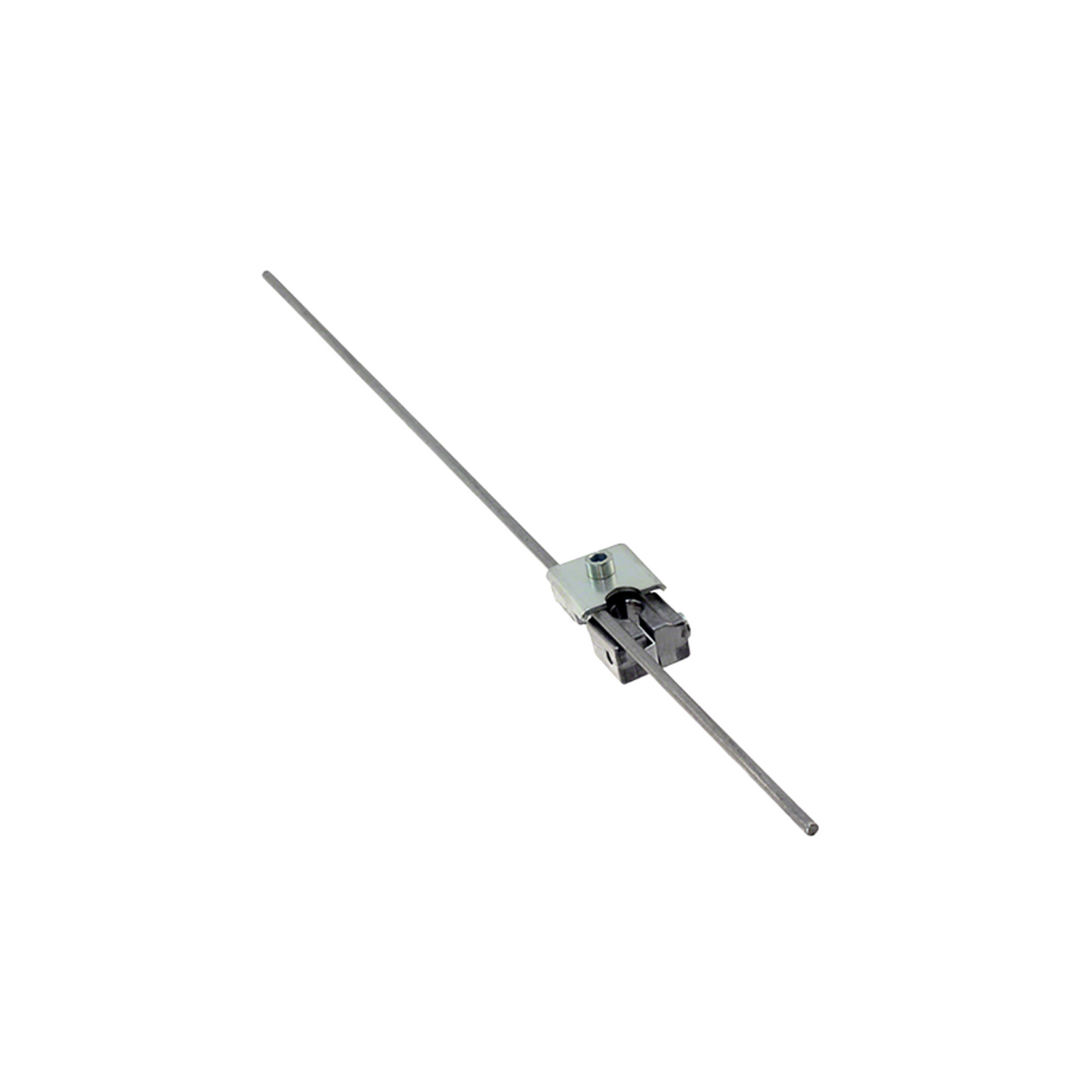

Honeywell LSZ54N - Micro Switch Limit Switch Head, 1/3/4/4X/6/6P, CW and CCW, Rotary Actuator, Side, CSA/UL (Limited Availability)

$57.58

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

The LSZ54N Switch Accessory from Honeywell is a standard rod lever with stainless steel material, 13 inch length and .125 inch diameter. This side rotary lever is meant for the Heavy Duty or HDLS Limit Switch series. The HDLS series limit switches have been designed to be rugged for the most challenging applications. It comes in a modular style with a wide choice of actuator types, operating heads and circuitry options for design flexibility. Operating heads can be rotated 90 degrees and are field adjustable to CW and/or CCW operation.

Features:

Standard rod lever
Stainless steel material
Lead-free
RoHS compliant
Designed for use with 4617, 4621, 4625 series

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: LSZ54N
Type: Rod Lever
Switch Type: Limit Switch
Color: N/A
Actuator Style: Rotary
Actuator Location: Side
Voltage Rating: 600V AC/250V DC
Travel: Differential Travel 5° Max.; Overtravel 60° M in; Pretravel 15° Max.
Movement: CW and CCW
Operating Force: 4 in-lb
Operating Temp: 10° to 250°F
NEMA Rating: 1; 3; 4; 4X; 6; 6P
IP Rating: Not Rated
Standards: CSA; UL
For Use With: HDLS LSA Switches
