Honeywell LSZ61 - Micro Switch Limit Switch Head, 1/3/4/4X/6/6P, CW and CCW, Rotary Actuator (Limited Availability)
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description

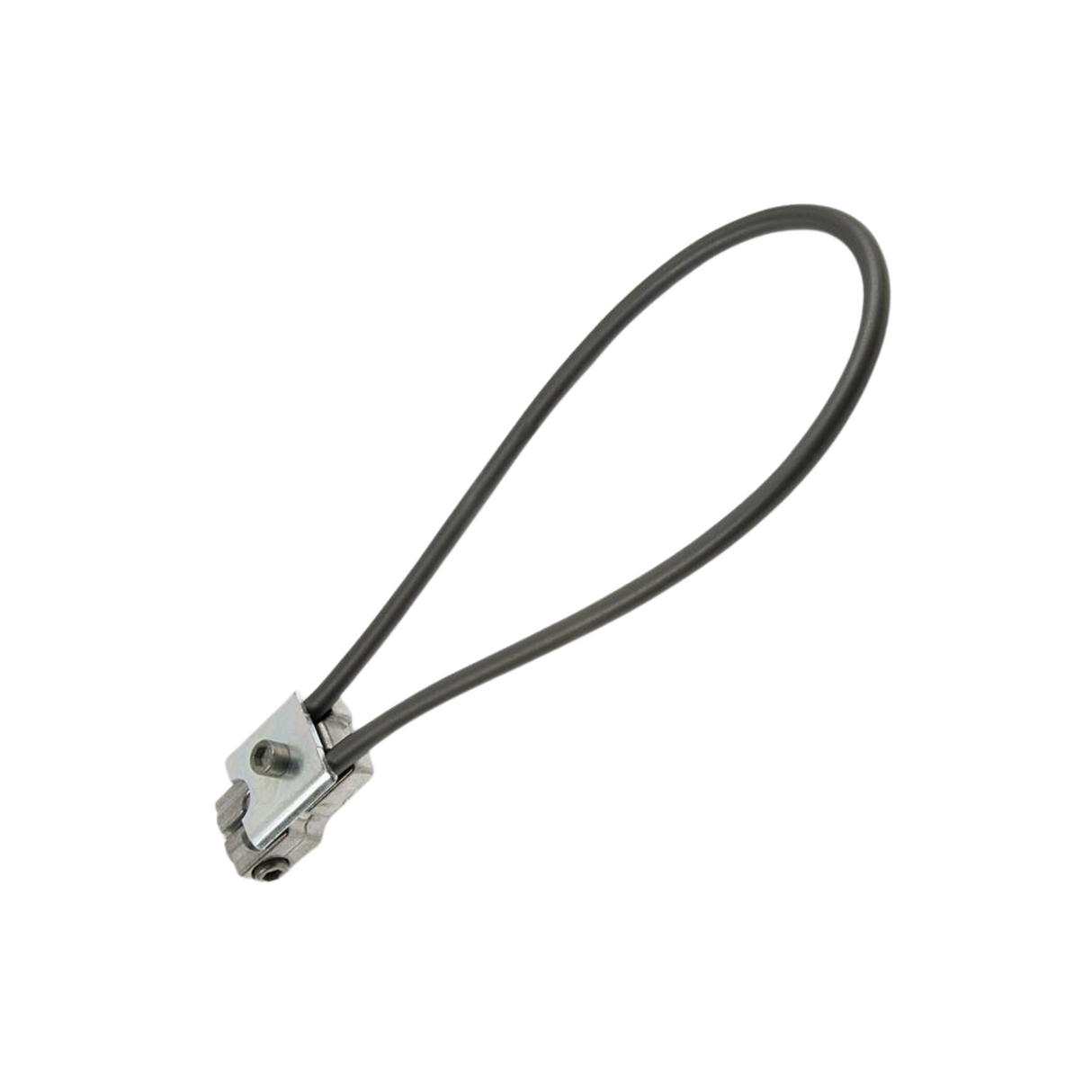

The LSZ61 Switch Accessory from Honeywell is a Nylatron-based looped lever rod with a length of 6 inch, 2.3 inch width and .19 inch diameter. This side rotary lever is meant for the Heavy Duty or HDLS Limit Switch series. The HDLS series limit switches have been designed to be rugged for the most challenging applications. It comes in a modular style with a wide choice of actuators, operating heads and circuitry options for design flexibility. Operating heads can be rotated 90 degrees and are field adjustable to CW and/or CCW operation.
Features:
Cap screw
It is RoHS compliant
To be used with HDLS series limit switches
Has a 6 inch flexible loop
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: LSZ61
Type: Lever
Switch Type: Rotary Limit Switch
Color: N/A
Actuator Style: Rotary
Actuator Location: Top
Voltage Rating: 600V AC/250V DC
Travel: Differential Travel 10° Max.; Overtravel 110° M in; Pretravel 25° Max.
Movement: CW and CCW
Operating Force: 2.5 in-lb
Operating Temp: 30° to 250°F
NEMA Rating: 1; 3; 4; 4X; 6; 6P
IP Rating: Not Rated
Standards: CSA; UL
For Use With: HDLS LSB Switches
