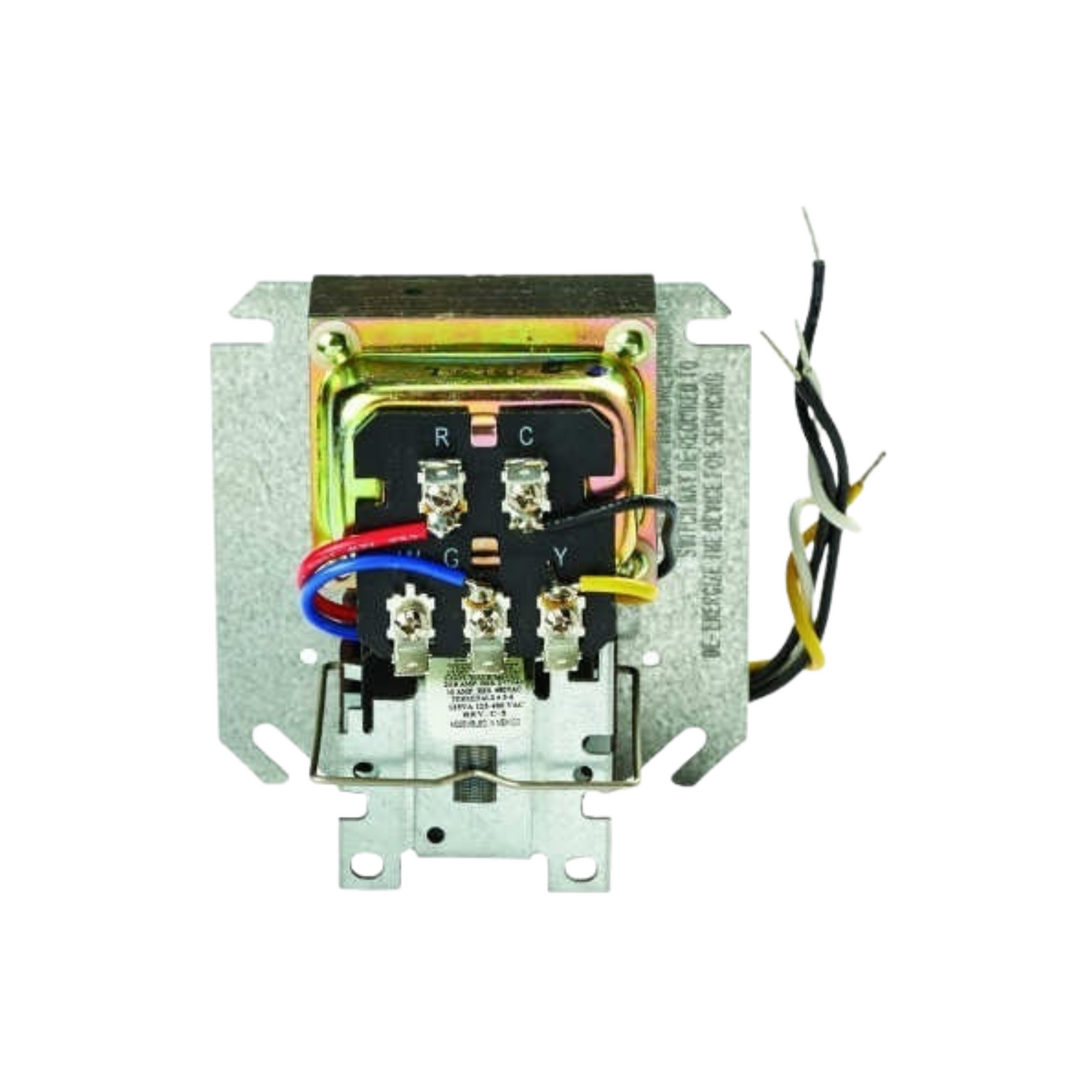

Honeywell R8285D5001 Dpst Control Center For Hydronic Applications,...
Features:
Transformer Powers Low Voltage Control Systems and Provides Overload Protection
Low Voltage Terminal Board Provides Convenient Connections for Thermostat and Heating and Cooling Equipment Wiring
Relay is Easily Replaced without Disturbing Wiring
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: R8285D5001
Product Type: Fan Control Center
Contact Voltage Rating: 120/208/240 VAC at 50/60 Hz
Contact Current Rating: 12 A (Full Load), 60 A (Locked Rotor)
Contact Configuration: DPST
Terminal Type: Lead Wire
Mounting: 4" x 4" Junction Box
Coil Rating: 20 VA Maximum (Inrush), 9 VA (Sealed)
Power Rating: 11 Watt, 3/4 HP
Supply Rating: 50 VA, 26.5 V (Secondary)
Dimensions: 5.8" x 7.4" x 5.25"
Weight: 2.62 lb.
