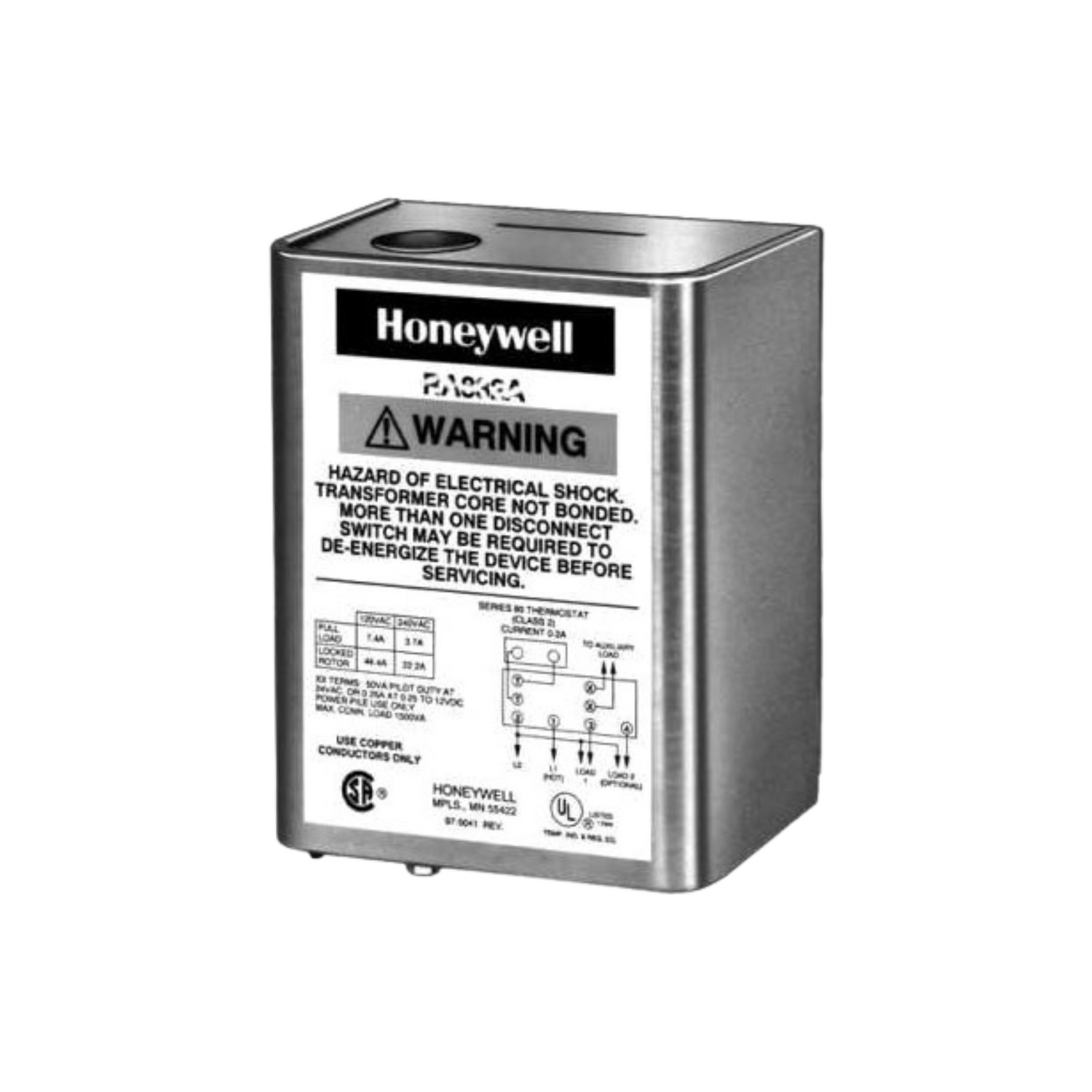

Honeywell RA889A1001 120V 60Hz. Switching Relay 15Afl/30Alr 2000 Va Max.
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Honeywell RA889A1001 120V 60Hz. Switching Relay 15Afl/30Alr 2000 Va...
Features:
High Load Switching Capability
Troubleshooting LED
Push-To-Test Button
Replaceable Transformer Fuse
Long-Life Dc Relay Drive Control Technology
Secondary of Transformer Protected by Replaceable 1A Automotive Fuse
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: RA889A1001
Product Type: Switching Relay
Contact Configuration: SPDT
Contact Voltage Rating: 120 VAC @ 60 Hz
Contact Current Rating: 15 A @ 120 VAC (Full Load), 30 A @ 120 VAC (Locked Rotor)
Coil Voltage: 24 VAC @ 60 Hz
Temperature Rating: -20 to 120 Degrees F
Humidity: 0% to 90% RH
Dimensions: 6.4" x 4.8" x 3.65"
Weight: 2.01 lb.
Includes: Integral Transformer, Enclosure
