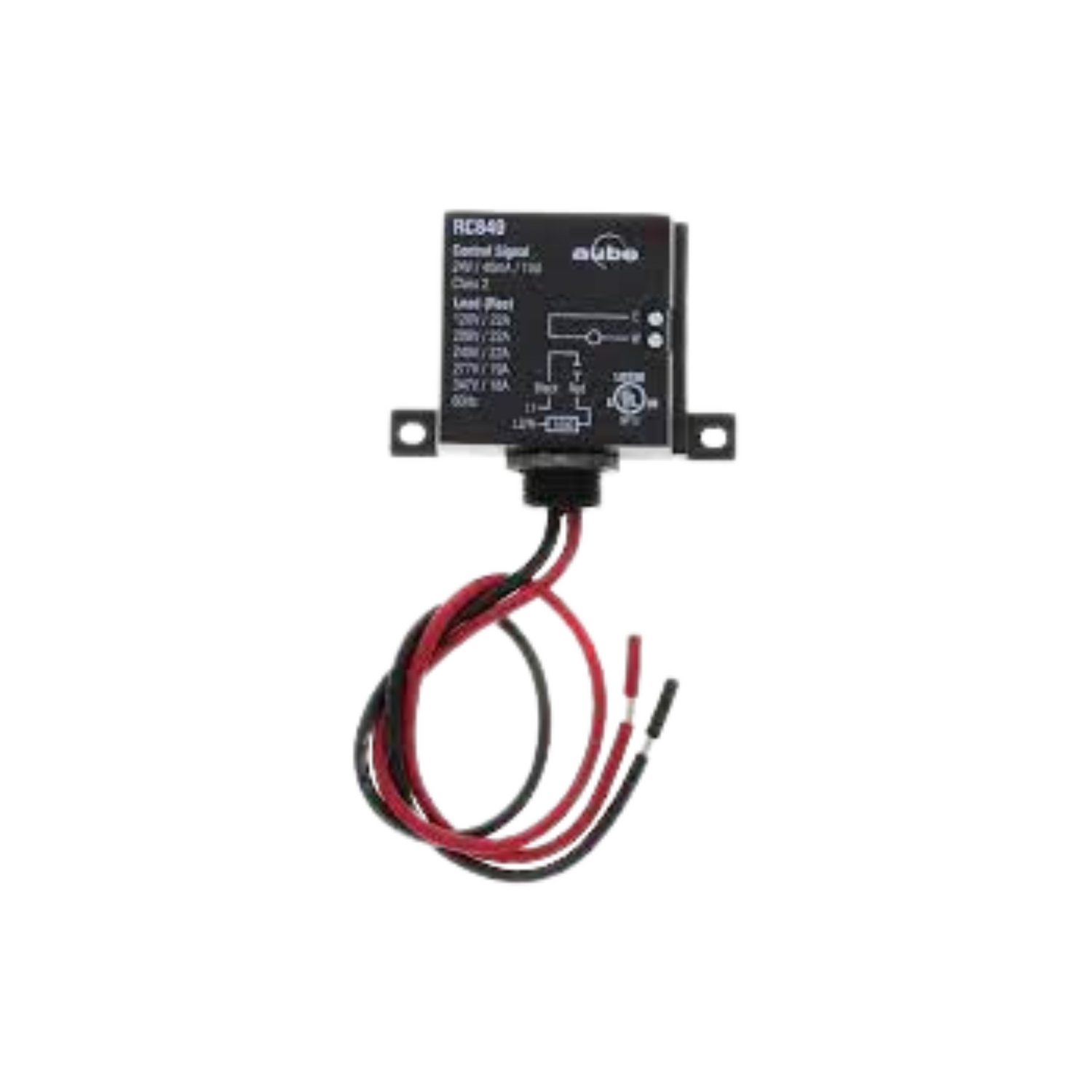

Honeywell RC840T-120 Honeywell/Aube Electromechanical Relay With 2
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Features:
Direct Replacement for any Brand Name Relay
Built-In 24 Volt Transformer for Easy Installation
Compatible with 24Volt Thermostats with 2-Wire Connections (R,W) or 3-Wire Connections (R,W,C)
Immediate Relay Activation Provides Improved Temperature Control and Comfort
Epoxy-Soundproofed Relay Ensures Quiet Operation
Terminal Board Connection Enables Easy Installation
Low Current Consumption Means Multiple Relays Can be Controllers by a Single Thermostat
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: RC840T-120
Product Type: Electric Heating Relay
Coil Voltage: 24 VAC
Contact Voltage Rating: 120 VAC @ 60 Hz
Contact Current Rating: 16 A (Full Load), 42 A (Locked Rotor), 22 A (Resistive Load)
Terminal Type: 12 AWG Wire
Control Signal Rating: 1.2 VA, 40 mA
Inductive Load: 1.5 HP @ 120 VAC
Humidity Range: 0% to 95% RH
Temperature Rating: -4 to 140 Deg F
Switching Mode: ON/OFF
Dimensions: 3.9" x 3.7" x 2.6"
Weight: 0.84 lb.
Includes: 22 A @ 120 VAC Transformer
