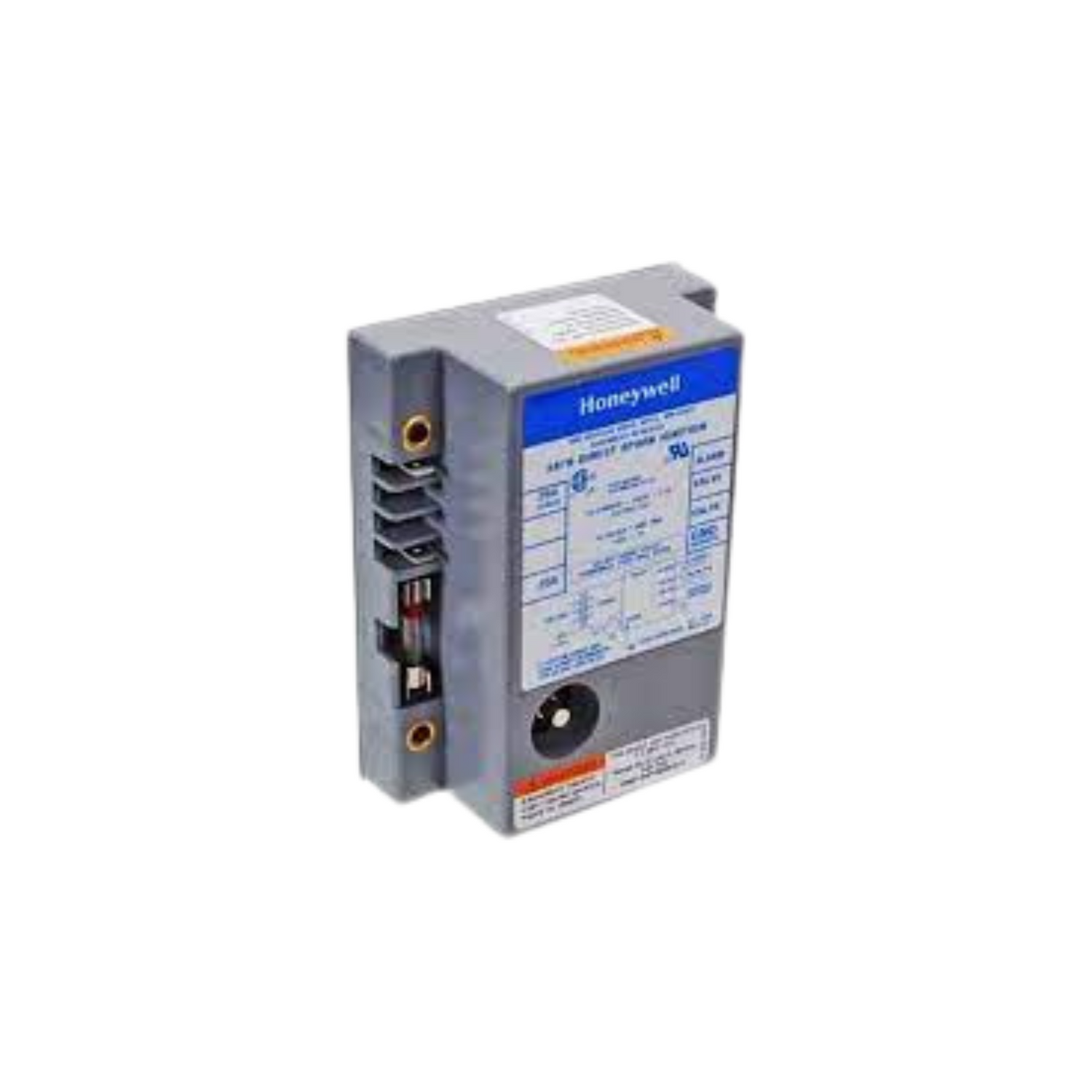

Honeywell S87B1065 Dsi Ignition Control 4 Second Lockout, Single Rod

Features:

Control Ignition Sequence and Gas Control Operation
Generate High Voltage Potential for Main Burner Ignition
Lockout after One Trial for Ignition If Main Burner Fails to Ignite
Reset from Thermostat after Lockout

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: S87B1065
Product Type: Direct Spark Ignition Control
Fuel Type: Natural/Liquid Propane Gas
Flame Sense Type: Single Rod
Ignition Source: Internal High Voltage Spark Generator
Ignition Sequence: 1-Trial
Ignition Trial Time: 4 Second
Flame Failure Response Time: 0.8 Second at 5 Microamp
Valve Rating: 2 A @ 24 VAC
Power Rating: 24 VAC @ 60 Hz
Temperature Rating: -40 to 175 Degrees F
Lockout Timing: 4 Second
Flame Failure Re-Ignition Time: 0.8 Second
Dimensions: 5.1" x 4" x 1.95"
Weight: 0.68 lb.
Includes: Alarm Terminal
