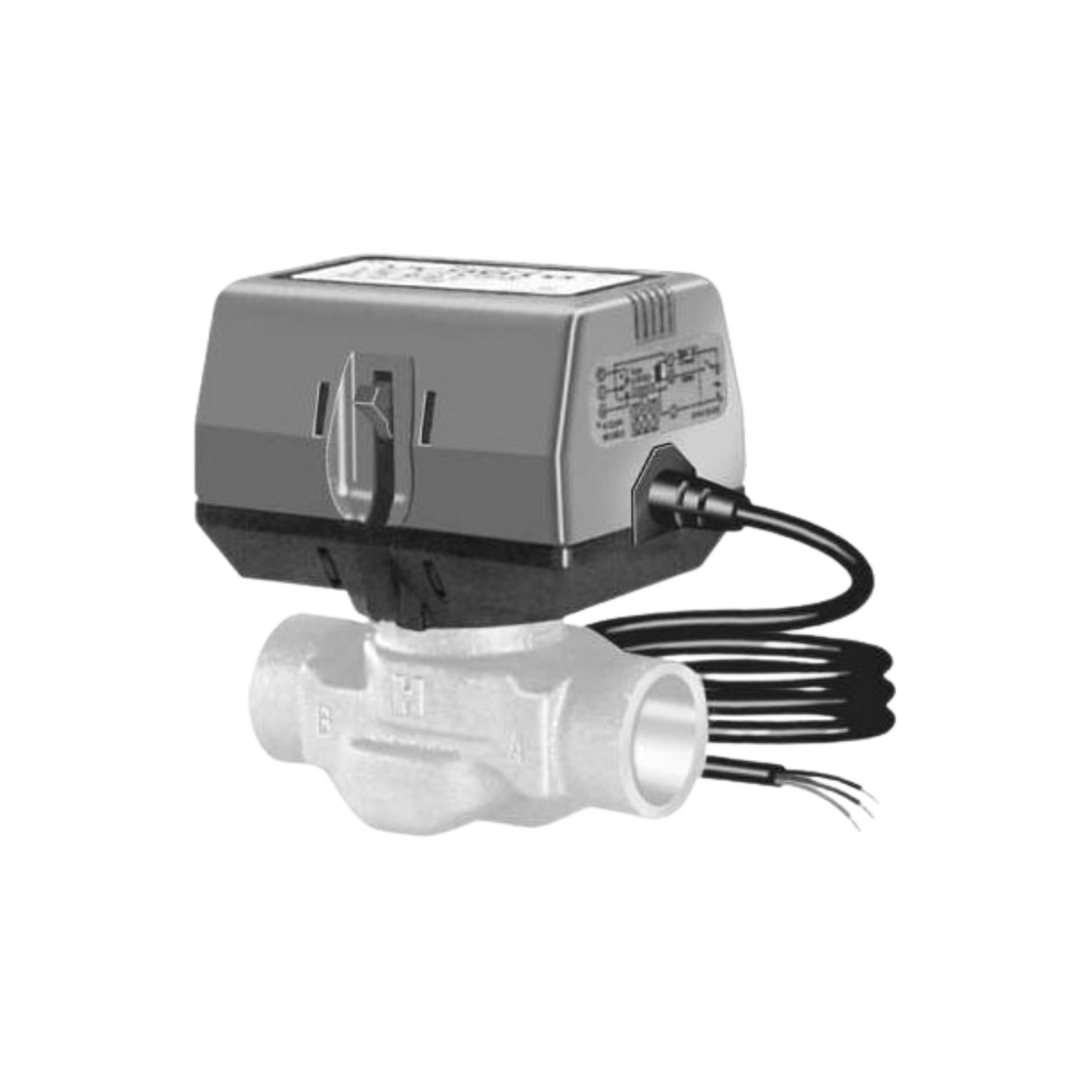

Honeywell VC4011ZZ11 120V Two Position On/Off 2 Wire + Common Actuato

Features:

Use with Two-Way or Three-Way Valves
Minimal Actuator Power Consumption
Quick-Connect or One Meter Cable Electrical Connections Available
Quick and Easy Replacement of Moving Parts
Actuator Head Installation Does Not Require Draining the System
On/Off Models with Six Second Nominal Timing
Use 2-Position Actuators with 1000 Series 2 Way and 6000 Series 3-Way Vc Valve Bodies Only
All Vc Series Actuator-Valve Combinations Provide 60 PSI Close-Off

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: VC4011ZZ11
Product Type: Cartridge Cage Valve Actuator
Operation Type: Lever
Voltage Rating: 100 to 130 VAC
Minimum AC Voltage: 100 V
Maximum AC Voltage: 130 V
Frequency Rating: 50/60 Hz
Power Rating: 6 VA (Driving)
Enclosure: IP40
Supply Connection Size: 39" Molded Strain Relief Cable
Body Material: Plastic
Shaft Adapter Type: Self-Alignment
Operating Temperature: 32 to 150 Degrees F
Differential Pressure Rating: 60 PSID
Timing: 6 Second
Dimensions: 4.6" x 6" x 3.35"
Weight: 0.87 lb.
