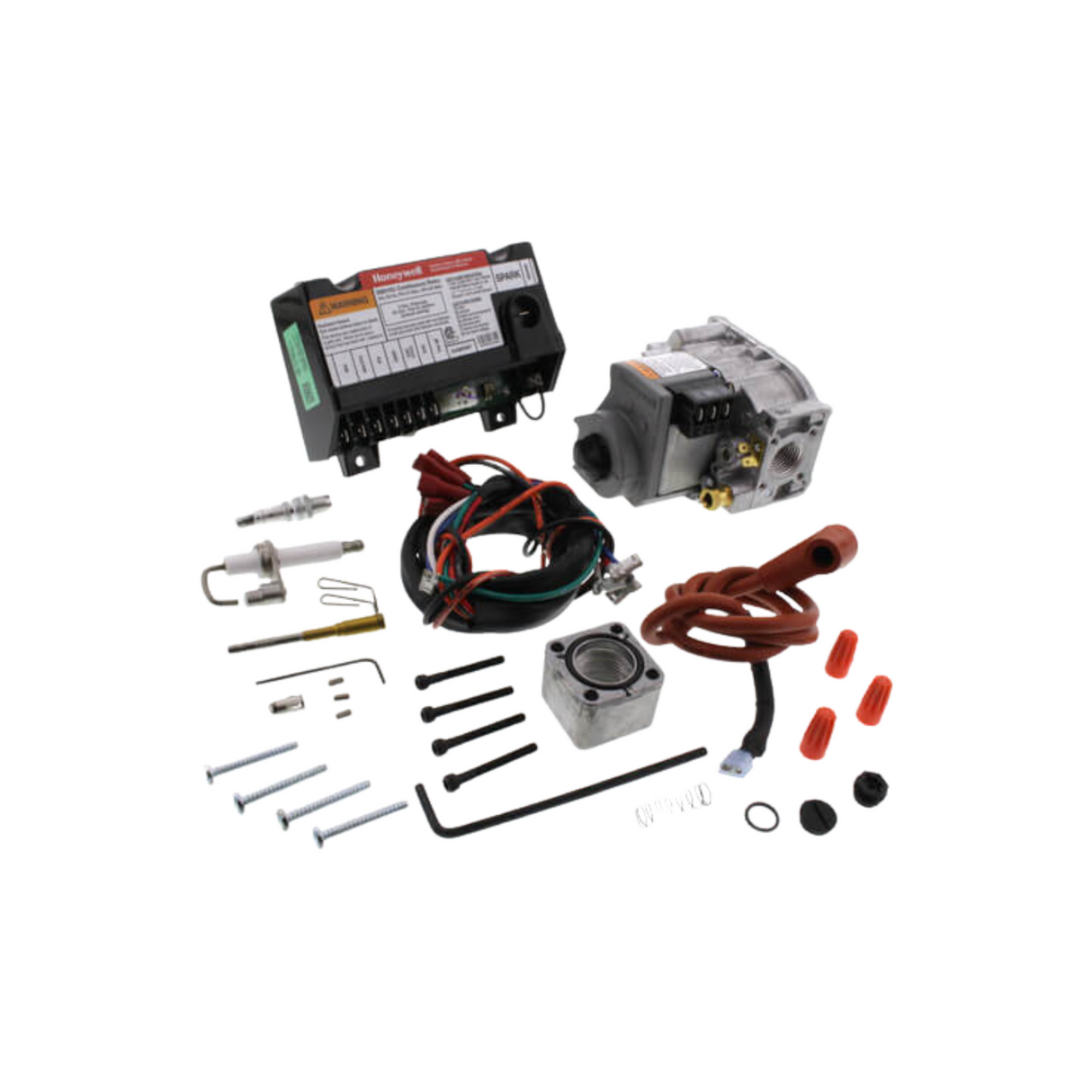

Honeywell Y8610U6006 Retrofit Kit For Natural Or Lp Gas 270,000 Btu
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Features:
Intermittent Pilot Retrofit Kits Save Energy by Converting Atmospheric Standing Pilot Systems to Intermittent Pilot
Provides 100 Percent Pilot Gas Shut-Off If Pilot Fails to Light after 6-Minute Delay, Trial for Ignition is Repeated
Ignition Trail/Delay Sequence is Repeated Until the Appliance Lights or Call for Heat is Removed
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: Y8610U6006
Product Type: Gas Burner Ignition System
Fuel Type: Natural/Liquid Propane Gas
Ignition Source: Internal High Voltage Spark Generator
Ignition Sequence: Continuous Retry
Prepurge Time: 0 to 30 Second
Flame Failure Response Time: 2 Second
Voltage Rating: 24 VAC 60 Hz
Current Rating: 1 A (Pilot), 2 A (Main) @ 24 VAC
Power Rating: 24 VAC @ 60 Hz
Flame Sense Type: 1 or 2 Rod
Lockout Timing: 15/90 Second
Temperature Rating: -40 to 165 Degrees F
Dimensions: 6.45" x 7.45" x 4.9"
Weight: 3.27 lb.
Includes: Gas Valve, Ignition Module, Pilot Burner Hardware, Ignition Cable and Wiring Harness
