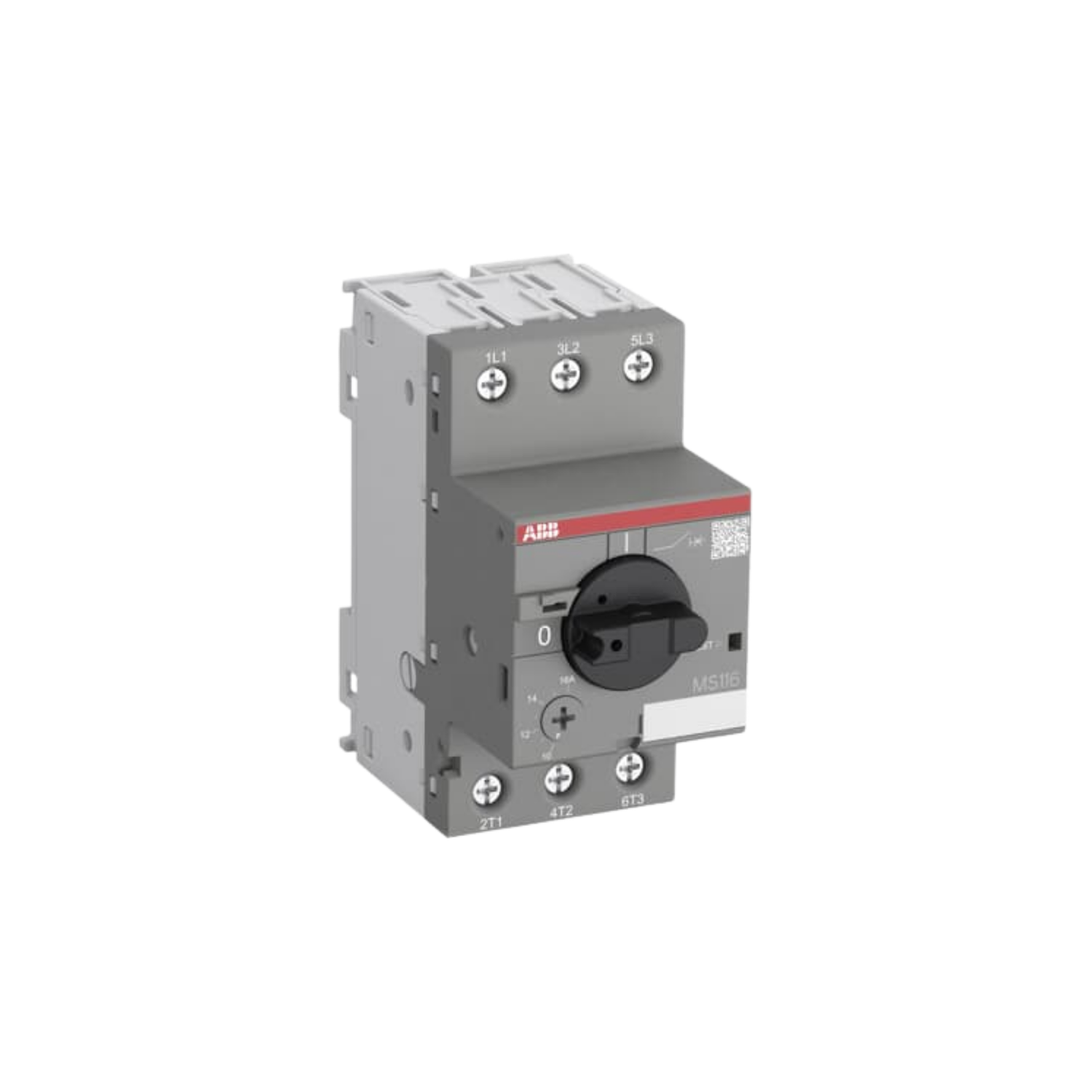

ABB MS116-0.4 Manual Motor Starter

The MS116-0.4 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 0.40 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: MS116-0.4
Product Type: Motor Starter
Voltage Rating: 690 V
Frequency Rating: 50/60 Hz
Current Rating: 0.25-0.40 A
No. of Pole: 3
Terminal Type: Screw Terminals
Dimensions: 1.77" x 3.54" x 3.37"
Weight: 0.49 lb.
