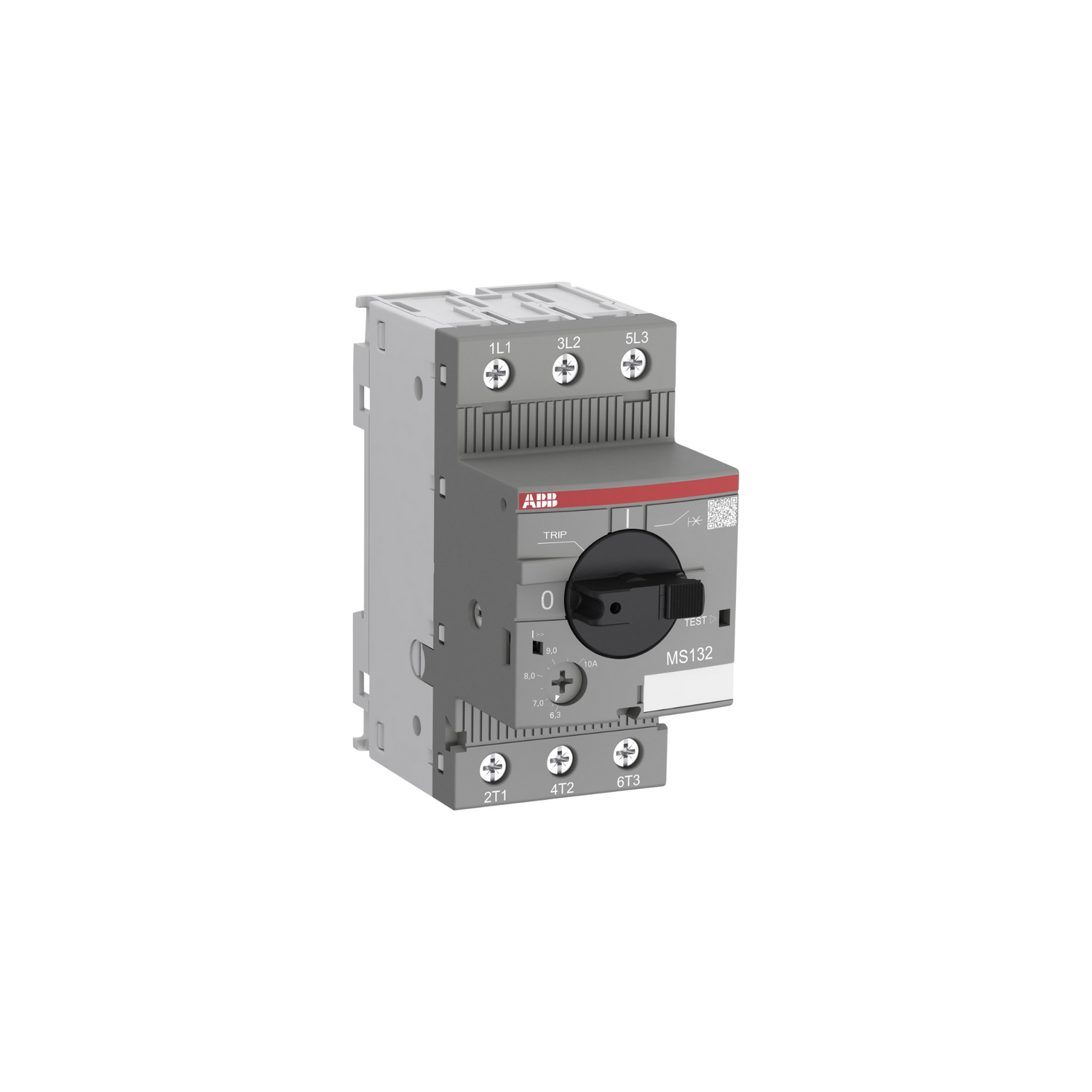

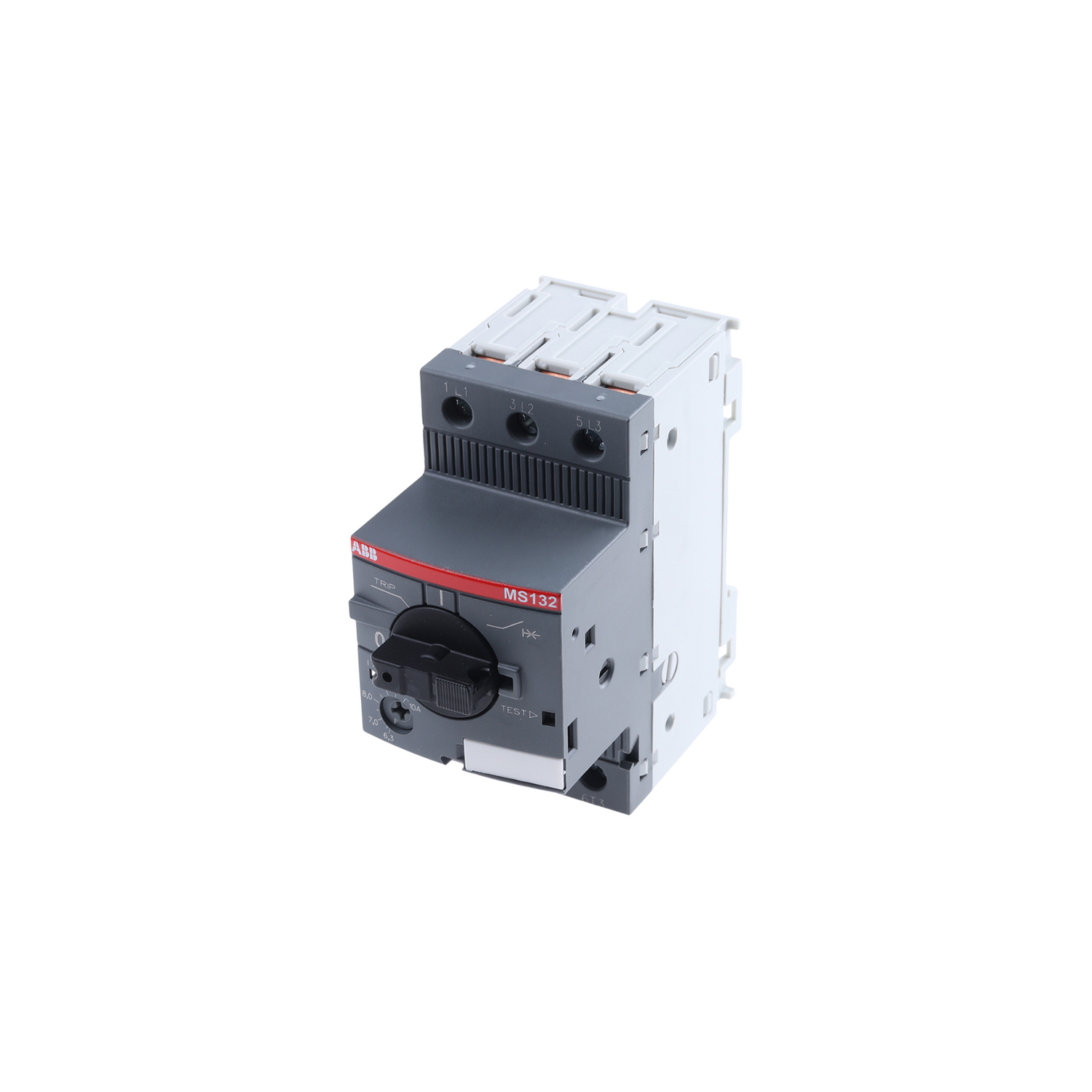

ABB MS132-10 690 V 6.3-10 A Manual Motor Starter

The MS132-10 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 10.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.

Specifications:

Manufacturer: ABB
Manufacturer Part Number: MS132-10
Product Type: Motor Starter
Voltage Rating: 690 V
Current Rating: 6.3-10 A
Poles: 3
Operation Mode: Manual
Terminal Type: Screw Terminals
Dimensions: 3.62" x 3.74" x 1.96"
Weight: 0.61 lb.
