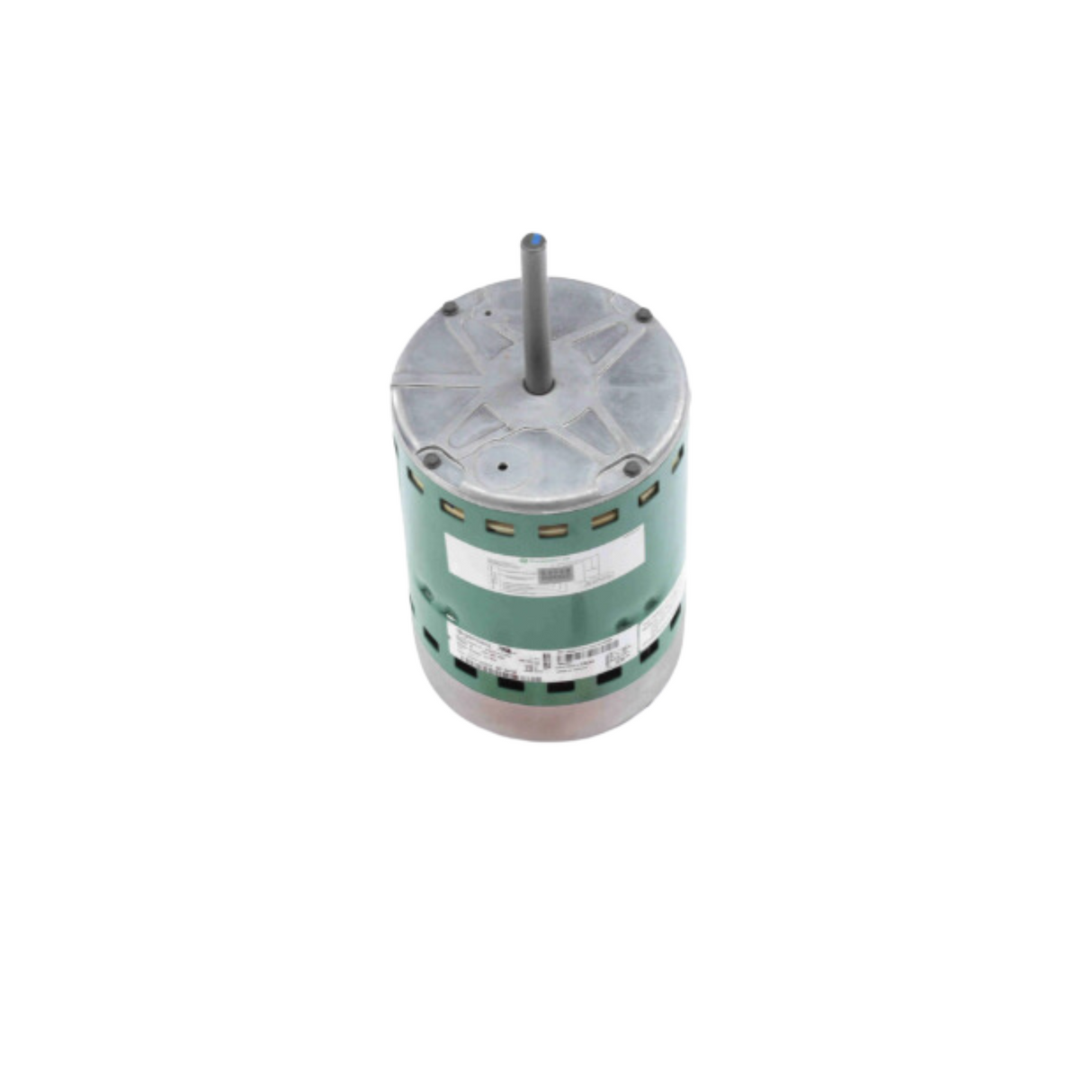

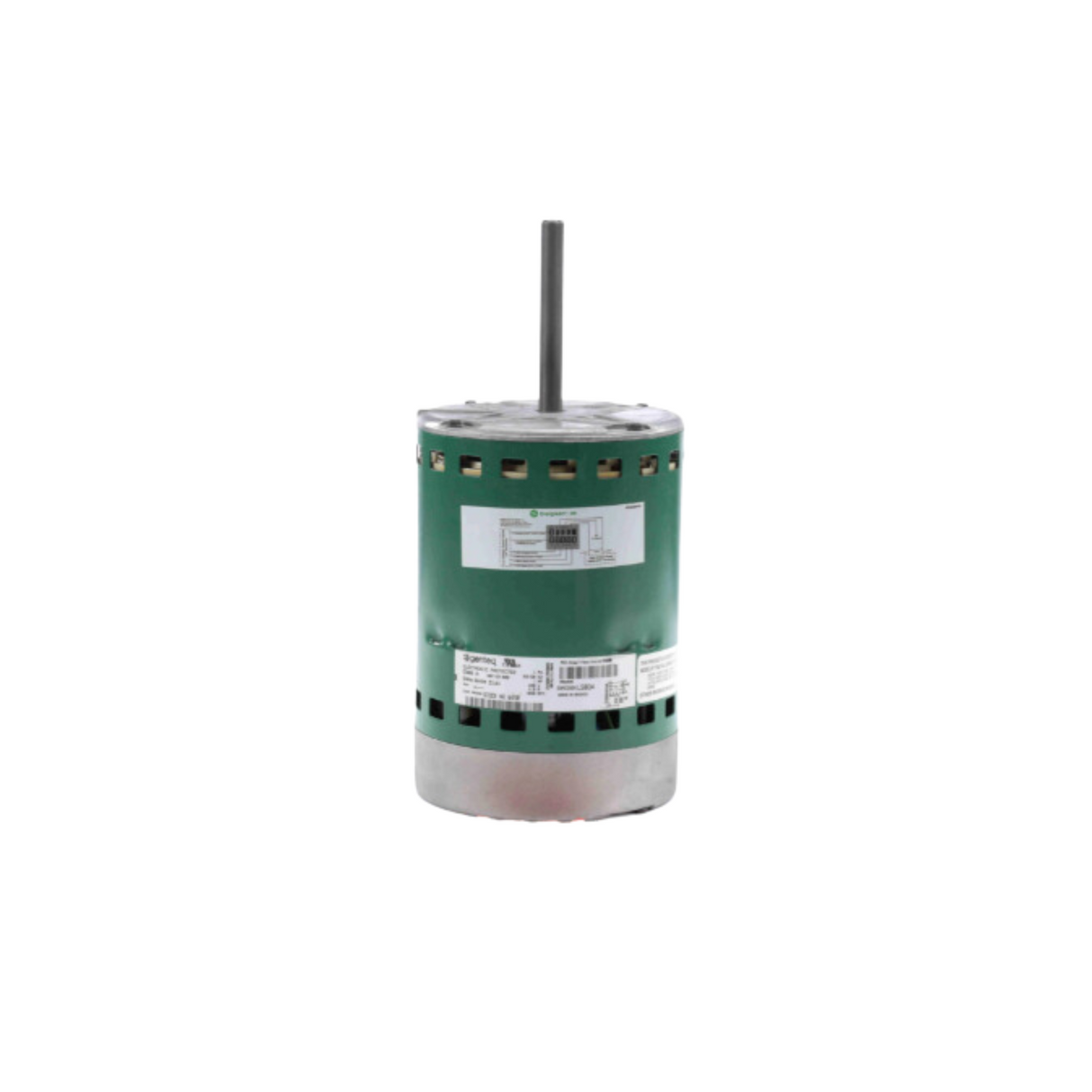

Regal Rexnord - Genteq 6405 460 V 60 Hz 1075 RPM 1/2 HP Reversible Evergreen Motor

Features:

Evergreen CM - ECM Replacment Commercial Air Handler Motor
5.6" Diameter - 48 Frame
Electronically Commutated (ECM), Electronically Protected
Up to five constant torque settings controlled by 24 VAC inputs
Fully variable (PWM compatible) from 600-1100 RPM
Open Air Over, Class B Insulation, 55°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
42" Leads
Belly Band Mount (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Genteq
Manufacturer Part Number: 6405
Product Type: Evergreen Motor
Voltage Rating: 460 V
Frequency Rating: 60 Hz
Current Rating: 2.1 A
No. of Phase: 1
No. of Speed: 1
Motor Size: 1/2 HP
RPM: 1075
Rotation: Reversible
Frame: 48
Dimensions: 16.6" x 8.45" x 8.4"
Weight: 14.54 lb.

Tech Sheet
