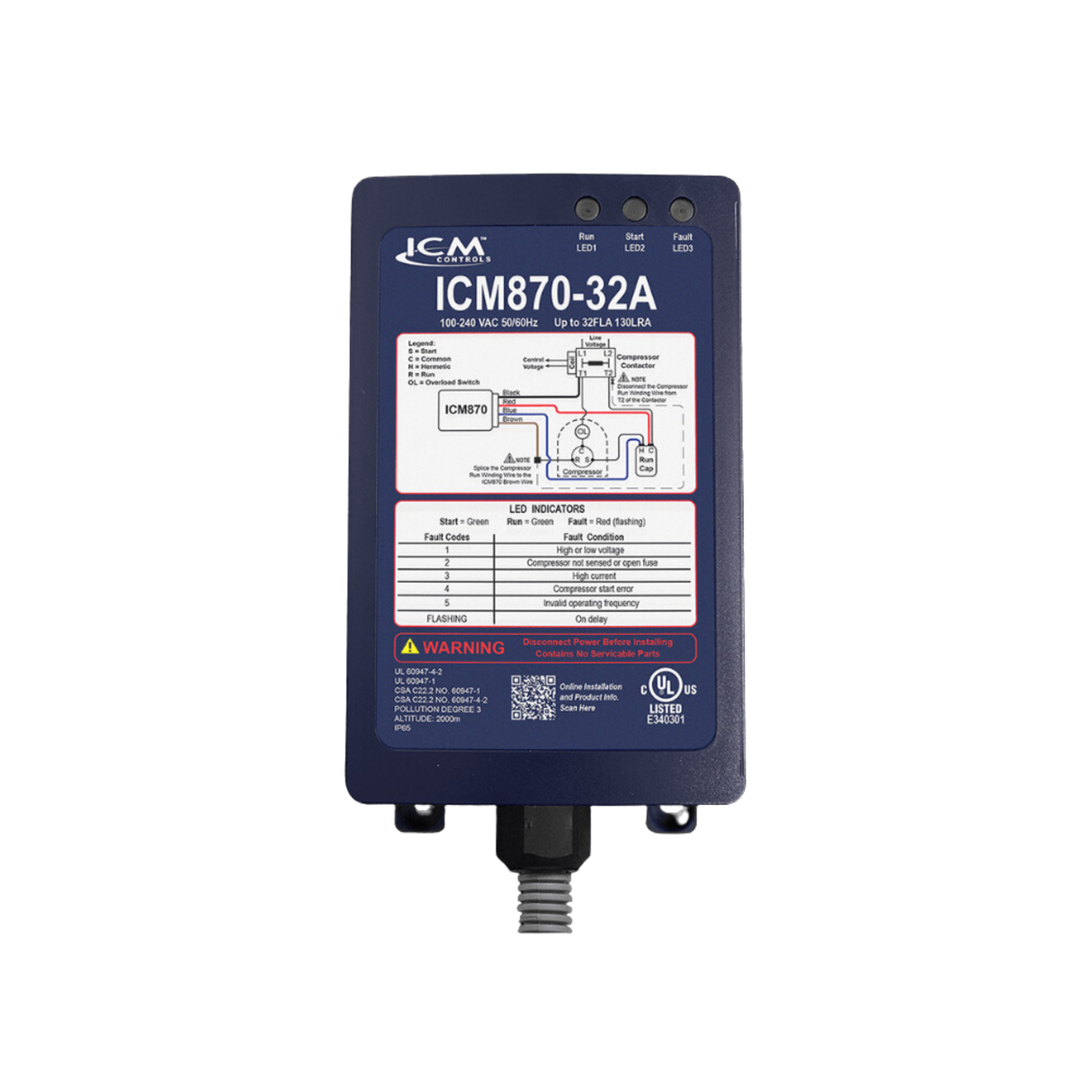

ICM870-32A Soft Start, Built-in Start Capacitor, Over/Under Voltage Monitoring, Over-Current Protection, Current 32A

Specifications:

Manufacturer: ICM Controls
Manufacturer Part Number: ICM870-32A
Product Type: Soft Start Kit
Operating Temperature: -40 Degree Fahrenheit to 131 Degree Fahrenheit
Voltage: 120/240VAC
Amperage: 32A
Dimensions: 6.9" x 12.1" x 3.25"
Weight: 2.14 lb

The ICM870 Series Soft Starts are NOT recommended to be used with air conditioners or heat pumps which have control boards that sense compressor current and perform a lock out for fault conditions.

Any Air Conditioner or Heat Pump which has a Comfort Alert control board or an Emerson Core Sense Module installed are not directly compatible for use with the ICM870 Series Soft Start.

The Emmerson Core Sense modules can be bypassed when using the ICM870 Series Soft Starts. Unfortunately, the Comfort Alert cannot be bypassed and therefore ICM870 cannot be used.

Product Features

• Reduces in-rush current/draw necessary at startup by up to 70%
• Prolong the life of the A/C by reducing excessive torque, wear and tear
• Reduce loud noises, light flickering, and breaker trips
• Built-in self-learning algorithm
• Over-current protection
• Over/under voltage monitoring
• Built-in start capacitor
• LED fault indicators
• ltrasonic sealed tamper-proof enclosure
• Installation hardware is included
• The ICM870 series soft starts ARE compatible with 2-stage HVAC units. If your 2-stage unit has two compressors, you will need two ICM870 units.
