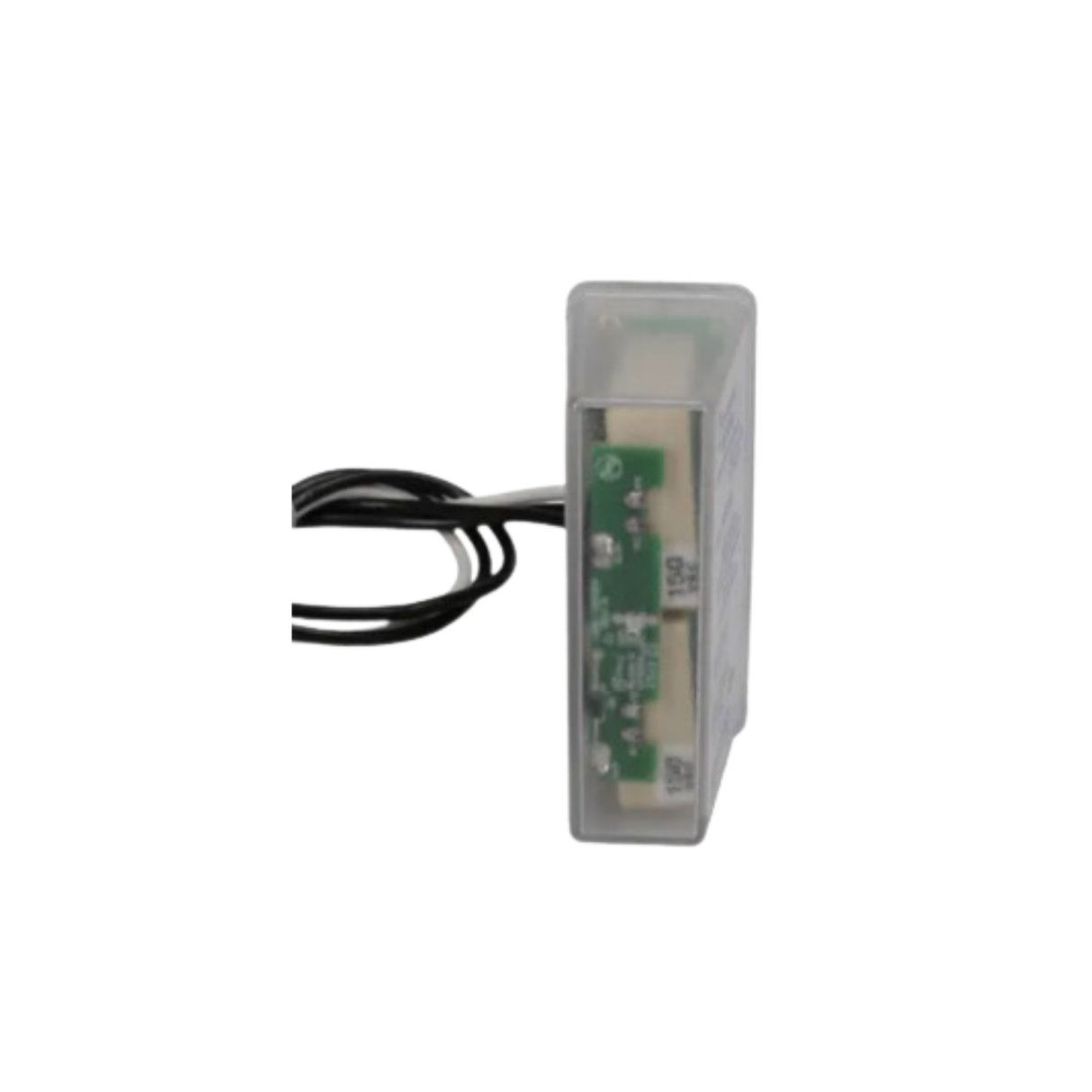

Intermatic AG3000 120/240 VAC, Surge Protection Types 1 & 2, 50 kA Surge Protector

Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 4th Edition.

Features:

Three modes of protection: L-G, L-L, L-N
TPMOV® surge protection technology
Green LED indicator provides status of protection
Type 4X watertight and UV resistant plastic enclosure
3-year product warranty
$7,500 connected equipment warranty for 3 years
UL Listed to ANSI/UL 1449 5th edition

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: AG3000
Product Type: Surge Protector
Voltage Rating: 120/240 VAC
Surge Protection Type: 1, 2
No. of Phase: 1
Modes of Protection: 3 (L1-N, L2-N, L1-L2)
Maximum Continuous Operating Voltage (L1-N/G): 150 V
Maximum Continuous Operating Voltage (L-G): 150 V
Maximum Continuous Operating Voltage (L-L): 300 V
Nominal Discharge Current: 20 kA
Maximum Surge Current Rating Per Phase: 50 kA
Voltage Protection Rating (L1-N/G): 700 V
Voltage Protection Rating (L-L): 1200 V
Enclosure: Indoor/Outdoor Type 4X
Wiring: #10 AWG, Tinned Copper Wire Leads
Operating Temperature: -40 to 158 Degrees F
Dimensions: 5.3" x 4.4" x 2.3"
Weight: 2.0 lb.
