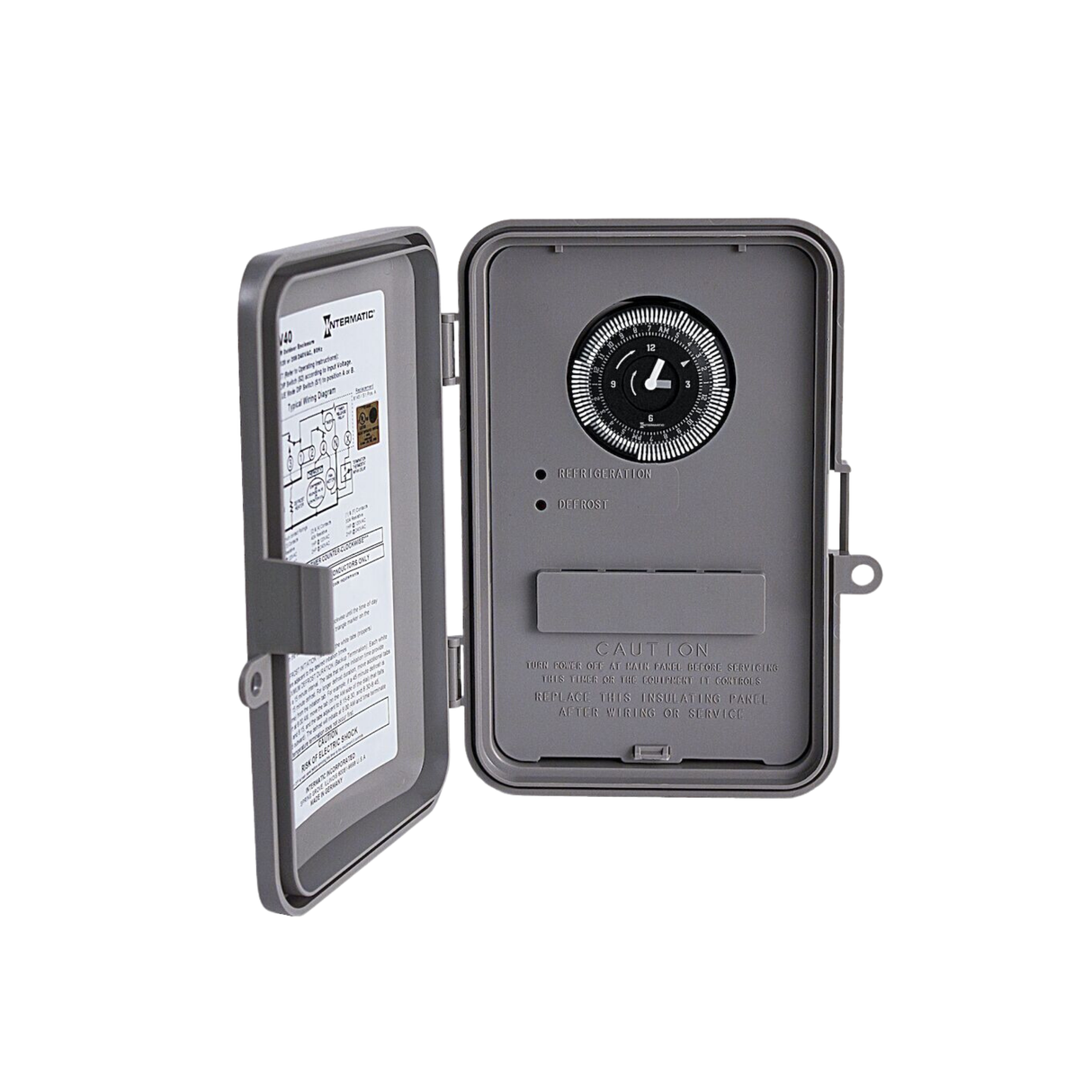

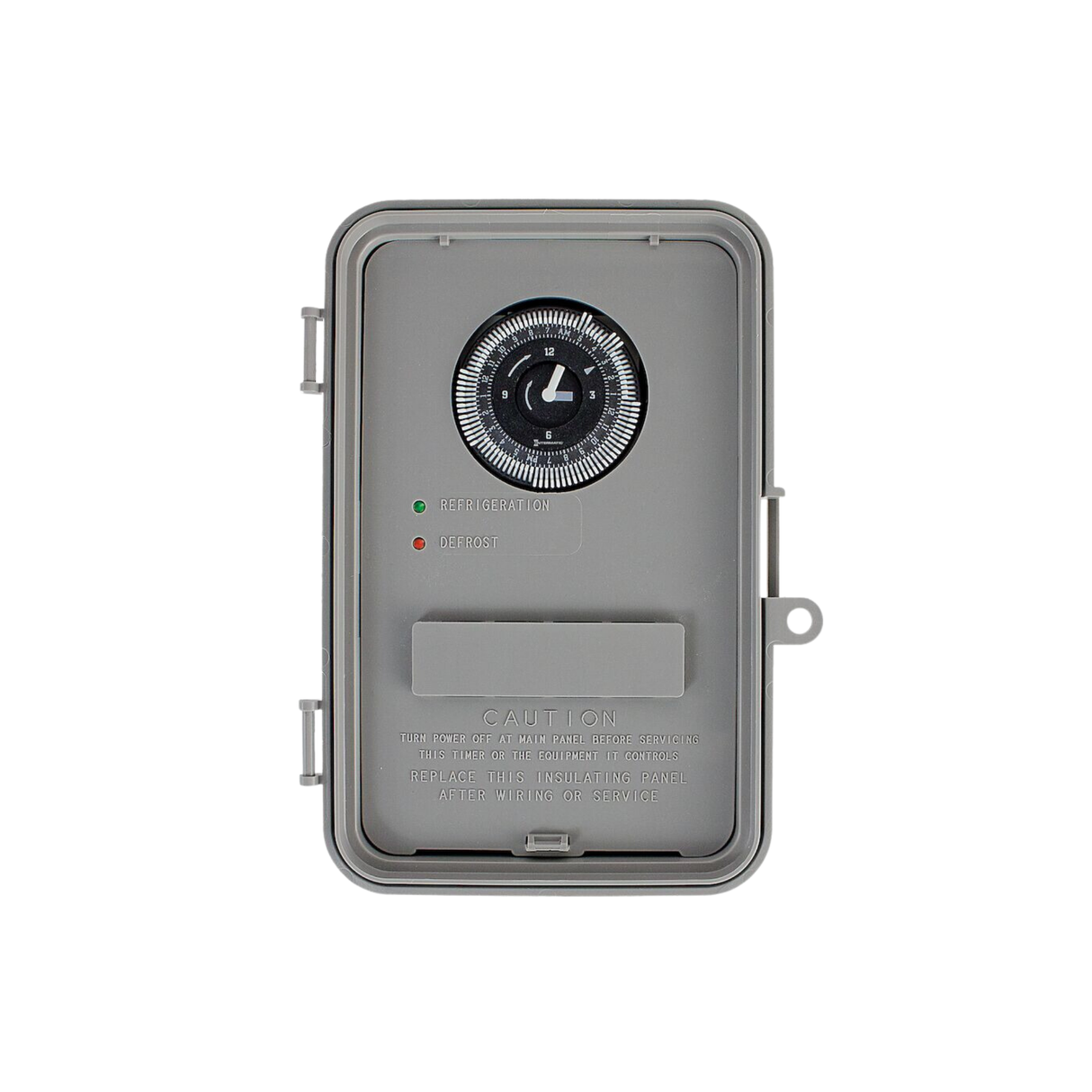

Intermatic DTAV40 120/240 V -40 to 104 Degrees F 1 SPDT, 1 NC SPST Electromechanical Defrost Timer

For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.

Features:

Improved relay performance
Automatically detects and adjusts input voltages (120-240 VAC)
Moisture resistant conformal-coated board
Time Initiated, Temperature, Pressure or Time Terminated
Captive trippers are field adjustable to 15-minute intervals
No tools required – snaps into alternative enclosures
Moisture resistant conformal-coated board
LED indicators for defrost and refrigeration cycles
Defrost cycles are programmed independently
Real-time clock face for quick, easy and accurate setting

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: DTAV40
Product Type: Electromechanical Defrost Timer
Color: Gray
Voltage Rating: 120/240 V
Frequency Rating: 60 Hz
Current Rating: 40 A
Resistive Load Ratings: 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Motor Load Ratings: 1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC
Voltage Selection: Automatic
Operating Temperature: -40 to 104 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Switch Type: 1 SPDT, 1 NC SPST
Wire Size: #8 AWG
Wiring Option: Screw box lug terminals up to one #8 AWG wire
Time Termination: Pressure, Temperature, Time
Mounting: Bracket
Dimensions: 7.05" x 9.55" x 3.35"
Weight: 3.0 lb.
