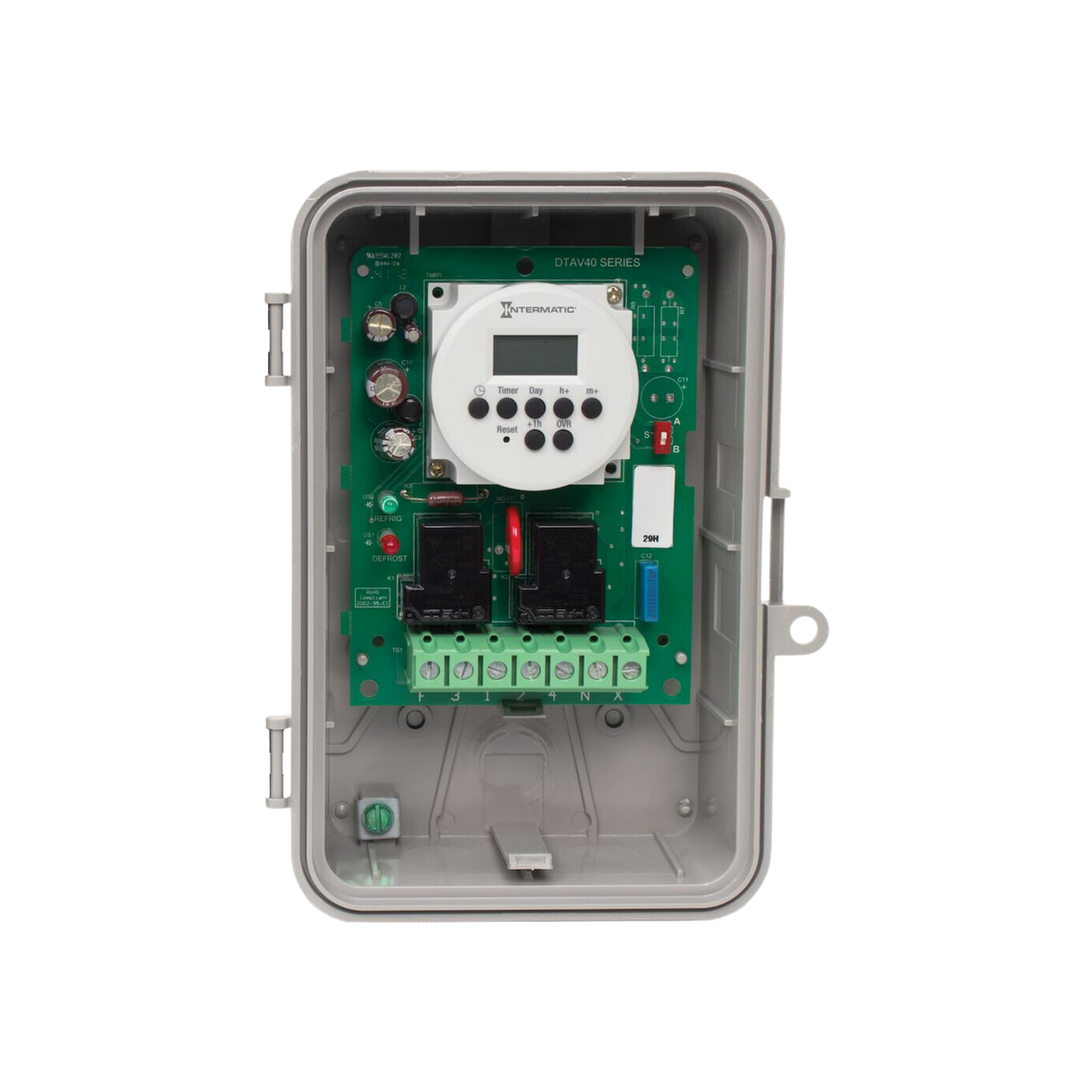

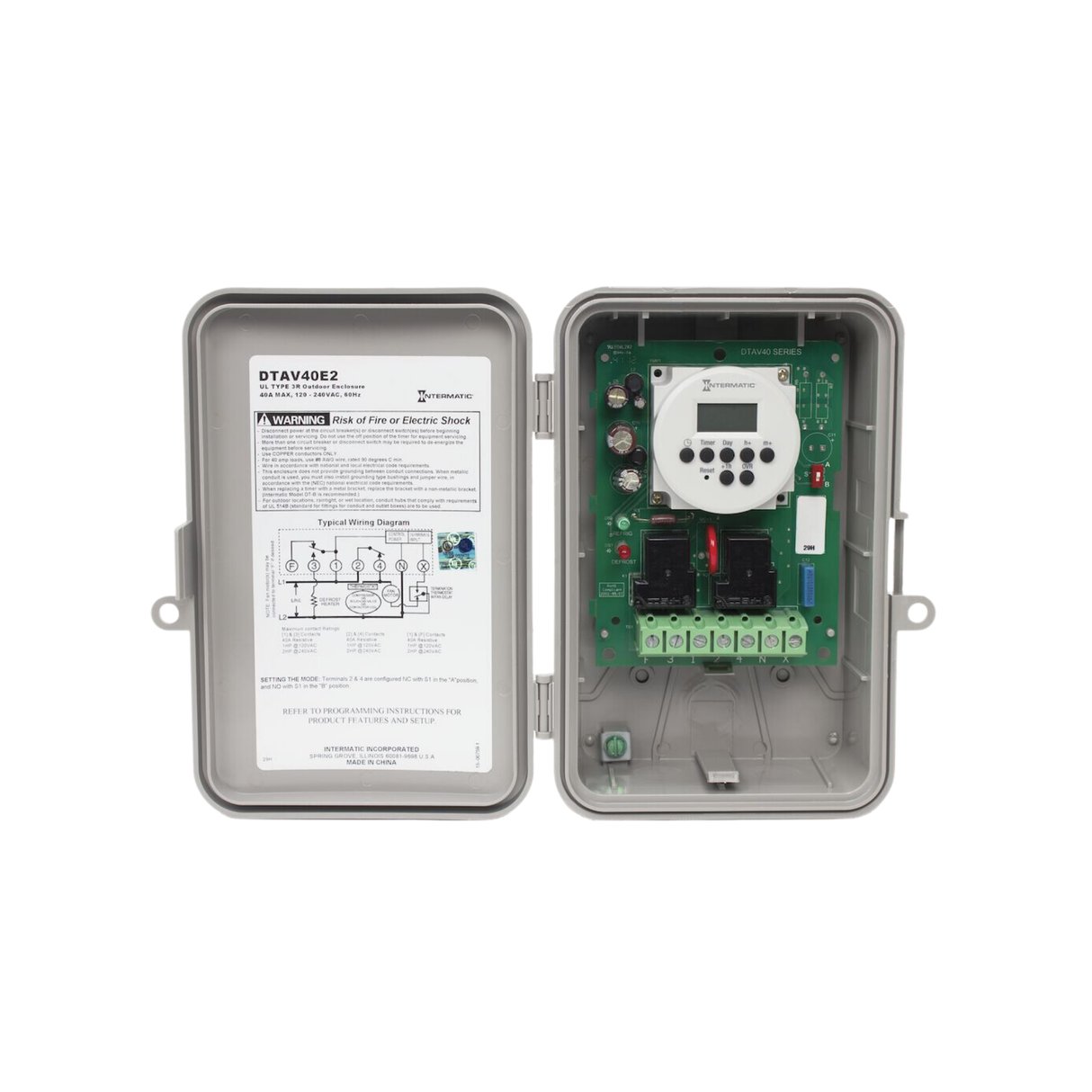

Intermatic DTAV40E2 120/240 V 5 to 131 Degrees F 1 SPDT, 1 NC SPST Electromechanical Defrost Timer

The DTAV40E2 Electronic Autovoltage Defrost Timer has flexible 7-day scheduling and to-the-minute defrost duration control to increase system efficiency (decrease defrost scheduling during low demand periods). It is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and cancels the defrost cycle if the temperature or pressure switch fails to do so.

Features:

24-Hour/7-Day flexible scheduling increases system efficiency
40 A, 2 HP rating
DTAV40E2 replaces over 40 competitive models
Autovoltage automatically adjusts between 120 and 240 VAC, 50/60 Hz
Self-recharging battery backup with 2500-hour carry-over
Can mount in an existing enclosure – no tools required for installation
LED indicators for defrost and refrigeration cycles
Finger-safe box lug terminals
Simple to program electronic timer

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: DTAV40E2
Product Type: Electromechanical Defrost Timer
Color: Gray
Voltage Rating: 120/240 V
Frequency Rating: 50/60 Hz
Current Rating: 40 A
Resistive Load Ratings: 40 A, 120 VAC, 50 Hz, 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 50 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 50 Hz, 40 A, 240 VAC, 60 Hz
Operating Temperature: 5 to 131 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Switch Type: 1 SPDT, 1 NC SPST
Wire Size: #8 AWG
Wiring Option: Screw box lug terminals up to one #8 AWG wire
Time Termination: Pressure, Temperature, Time
Mounting: Bracket
Dimensions: 7.1" x 9.55" x 3.3"
Weight: 3.0 lb.
