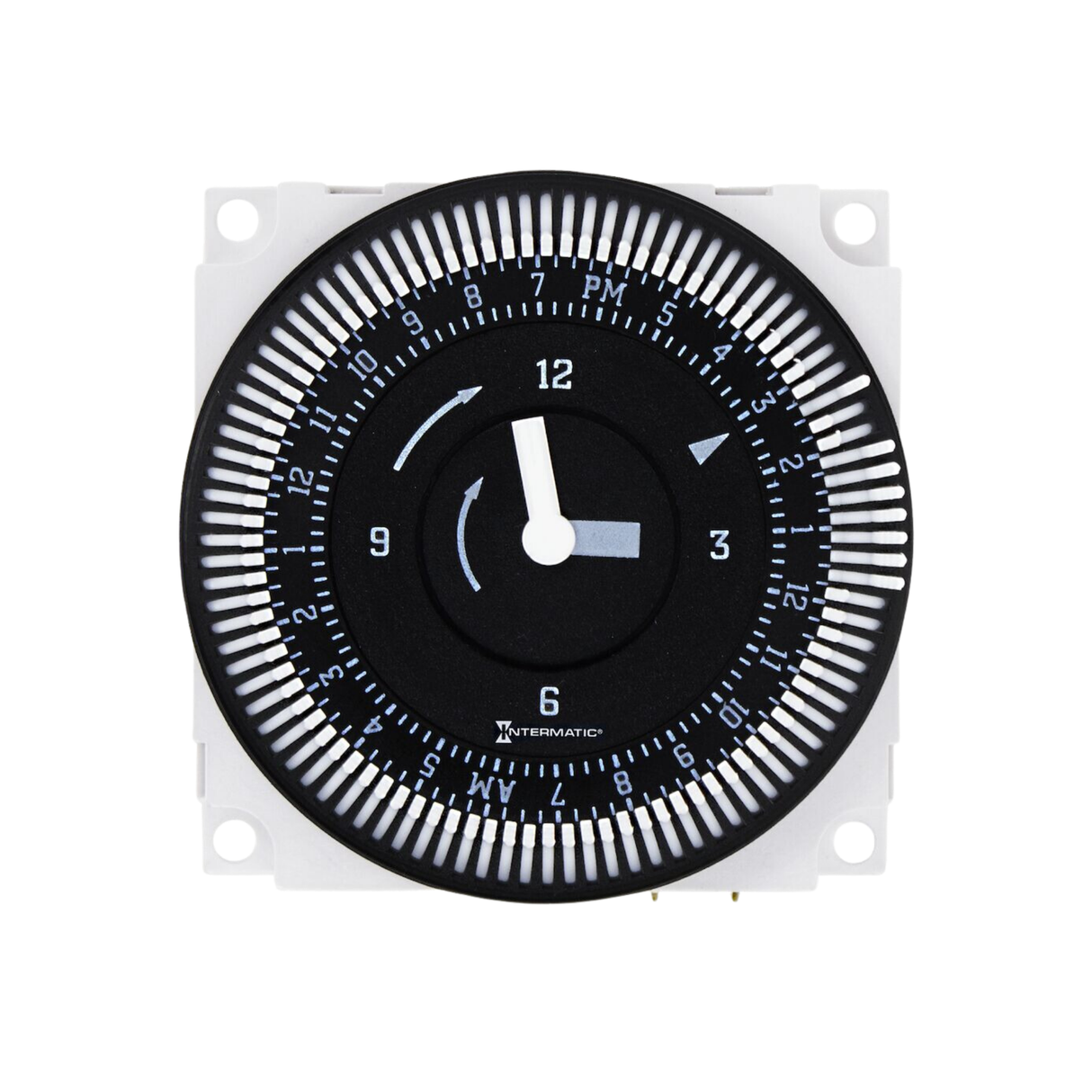

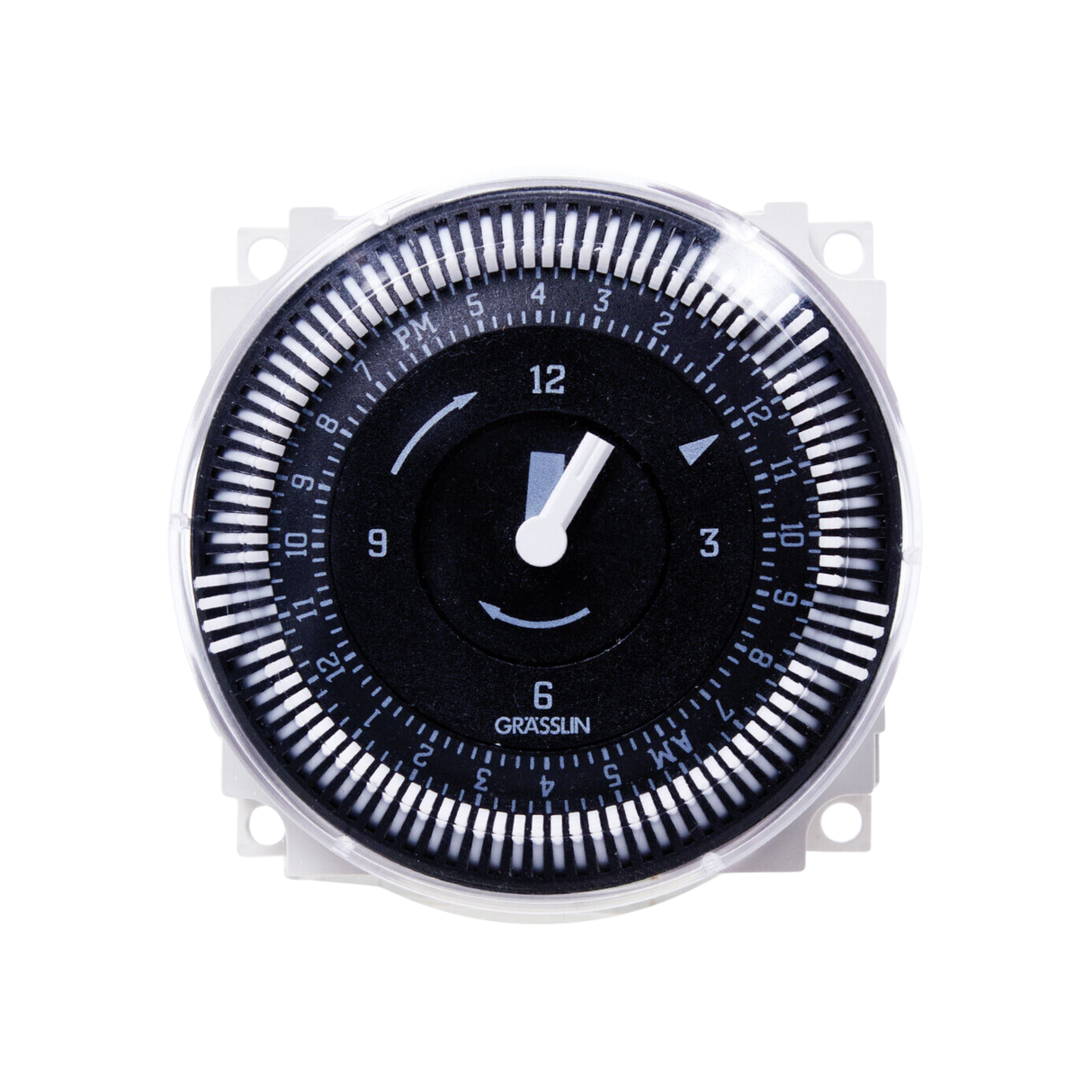

Intermatic FM/1QTUZ-120U 120 V 21 A SPDT 24-Hour Quartz Electromechanical Timer Module

The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.

Features:

21 A SPDT Switch
Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
72-hour carry-over battery backup on Q models
Noise immune – ideal for robust applications
Synchronous drive or quartz drive Q models with self-recharging battery backup
True clock face, easy-to-set
Available with or without override
Compact size
Clear plastic cover (DC-FME-A), sold separately
Standalone or with indoor/outdoor enclosure, sold separately

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: FM/1QTUZ-120U
Product Type: Electromechanical Timer Module
Color: Black
Voltage Rating: 120 V
Frequency Rating: 50/60 Hz
Current Rating: 21 A
Motor Load Ratings Ranges: 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
Tungsten (NO) Load Rating: 1350 W, 120 VAC, 50 Hz, 1350 W, 120 VAC, 60 Hz
Minimum Cycle Time: 15 Minutes
Maximum Cycle Time: 24 Hours
Operating Temperature Range: -4 to 131 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Switch Type: SPDT
Clock Drive Type: Quartz
Wiring Option: 1/4" Quick Connect Terminals
Mounting: Panel
Dimensions: 3.8" x 3.3" x 2.35"
Weight: 2.0 lb.
