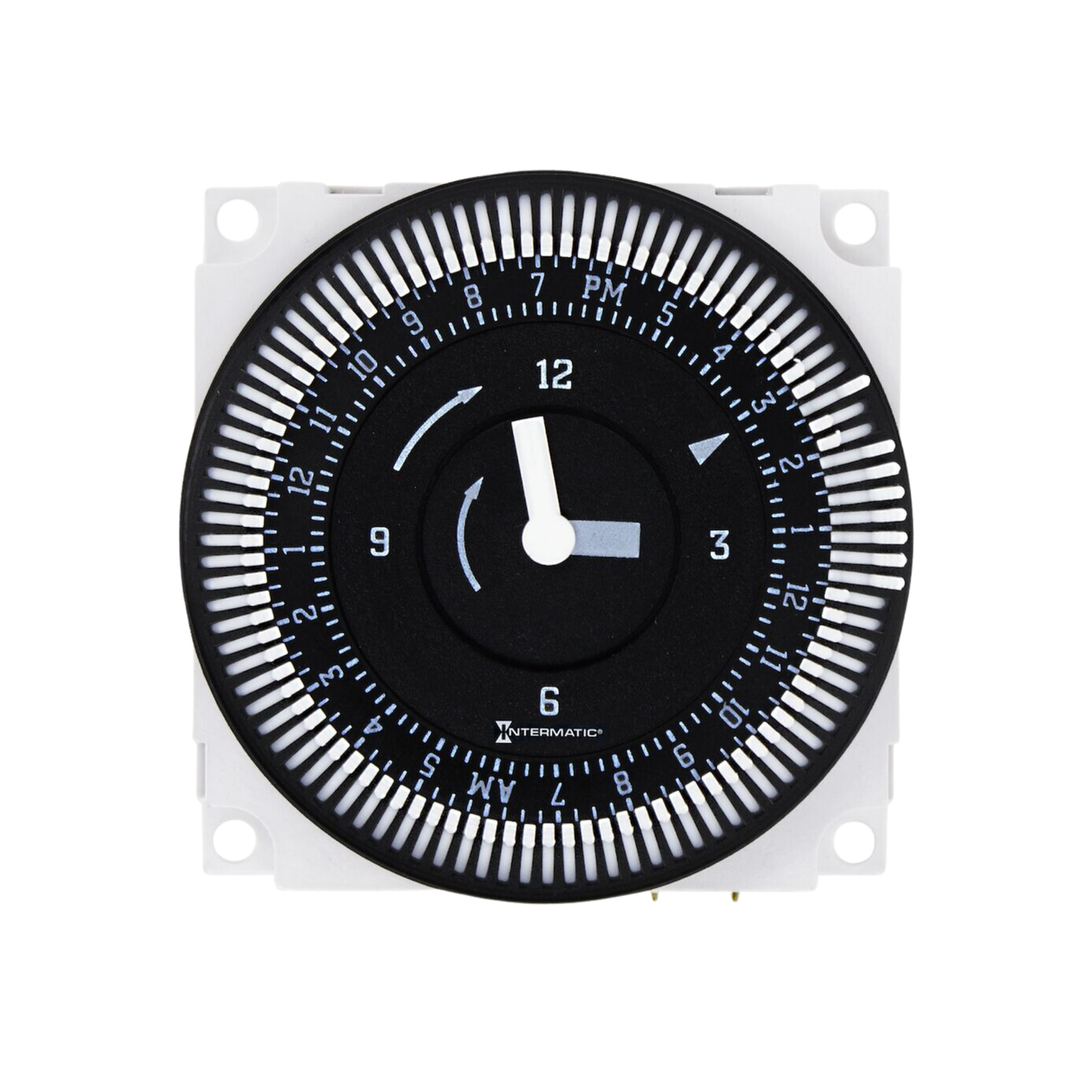

Intermatic FM/1STUZH-240U 208/240 VAC 21 A 24-Hour SPDT Synchronous Electromechanical Timer Module
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.
Features:
21 A SPDT Switch
Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
72-hour carry-over battery backup on Q models
Noise immune – ideal for robust applications
Synchronous drive or quartz drive Q models with self-recharging battery backup
True clock face, easy-to-set
Available with or without override
Compact size
Clear plastic cover (DC-FME-A), sold separately
Standalone or with indoor/outdoor enclosure, sold separately
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: FM/1STUZH-240U
Product Type: Electromechanical Timer Module
Voltage Rating: 208/240 VAC
Frequency Rating: 60 Hz
Current Rating: 21 A
Motor Load Ratings Range: 1 HP, 120 VAC; 2 HP, 250 VAC
Resistive Load Ratings Range: 21 A, 250 VAC
Tungsten Load Ratings Range: 1350 W, 120 VAC
Operating Temperature Range: -40 to 185 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Minimum Cycle Time: 15 Minutes
Maximum Cycle Time: 24 Hours
Timing Interval: 15 Minutes
Shortest Switching Time ON/OFF: 15 Minutes
Switch Type: SPDT
Clock Drive Type: Synchronous
Wiring Option: 1/4" Quick Connect Terminals
Mounting: Panel
Dimensions: 3.95" x 3.45" x 2.45"
Weight: 2.0 lb.
