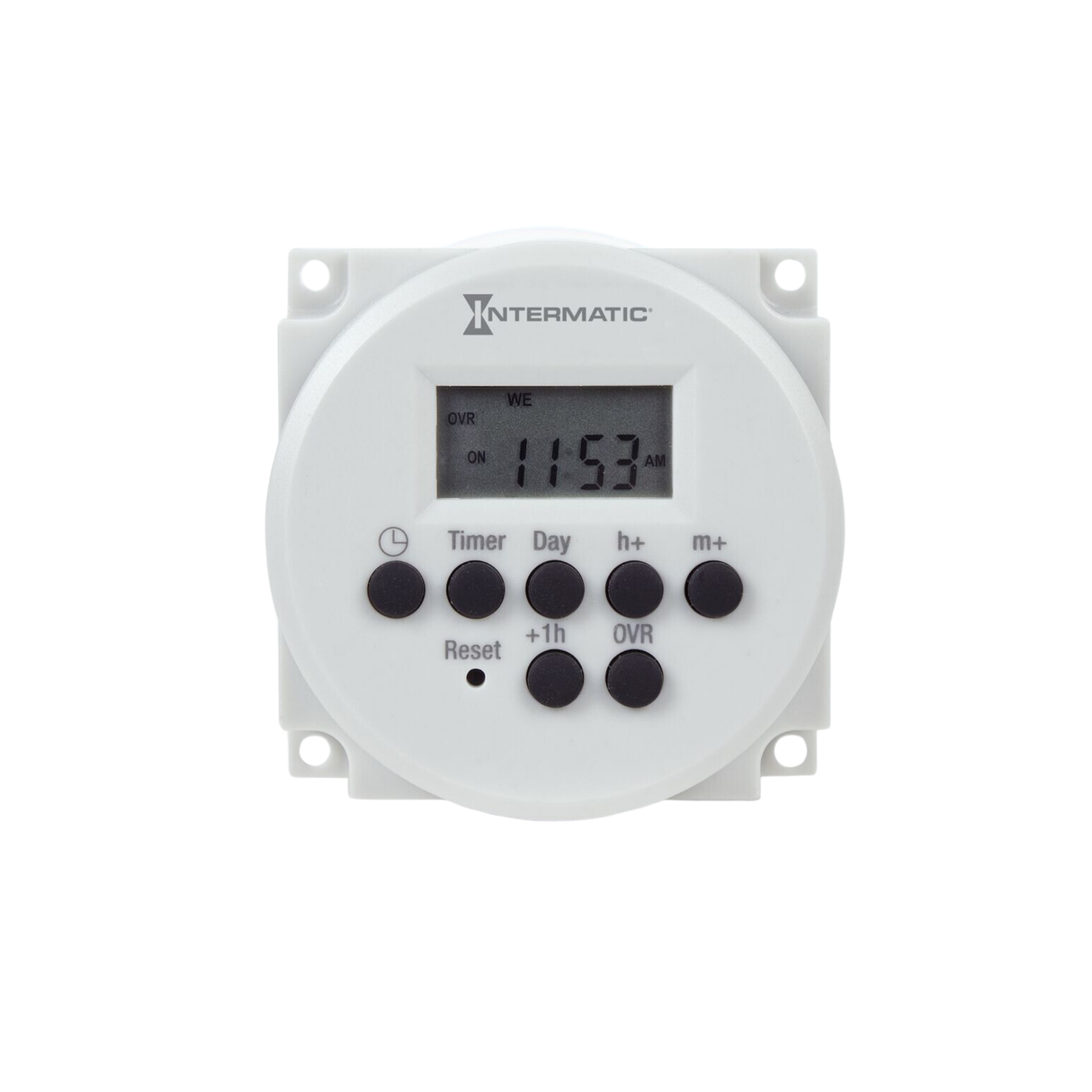

Intermatic FM1D14-AV-U 120-277 VAC 15 A 24-Hour, 7-Day SPDT Electronic Panel Mount

The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Features:

24-Hour or 7-day applications
14 Setpoint programs
Easy to program
Manual override with status indication
Self-recharging battery with backup protection up to 2500-hours
LCD display
5 Preset adjustable block programs
A & E models come with clear dust cover

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: FM1D14-AV-U
Product Type: Electronic Panel Mount
Voltage Rating: 120-277 VAC
Current Rating: 15 A
Operating Humidity: 0-95% RH, Non-condensing
General Purpose (NO) Load Rating: 15 A, 277 VAC
Magnetic Ballast (NO) Load Rating: 8 A, 277 VAC
Magnetic Ballast (NC) Load Rating: 8 A, 120 VAC
Motor Load Ratings (NO) Ranges: 1/2 HP @ 120 VAC; 10 FLA, 60 LRA @ 250 VAC; 1 HP @ 250 VAC
Motor Load Ratings (NC) Ranges:1/2 HP @ 120/240 VAC; 10 FLA, 60 LRA @ 250 VAC
Tungsten (NO) Loading Rating: 1000 W, 120 VAC
Mounting Options: Panel
Wiring Option: Spade terminals for #24 to #10 AWG wire (A models)
Operation Mode: 24 Hour, 7 Day, Cycle
Operating Temperature: 5 to 131 Degrees F
Switch Type: SPDT
Dimensions: 3.6" x 4.0" x 2.35"
Weight: 2.0 lb.
